Tests KG: Fuel Injector

PINPOINT TEST KG: FUEL INJECTOR

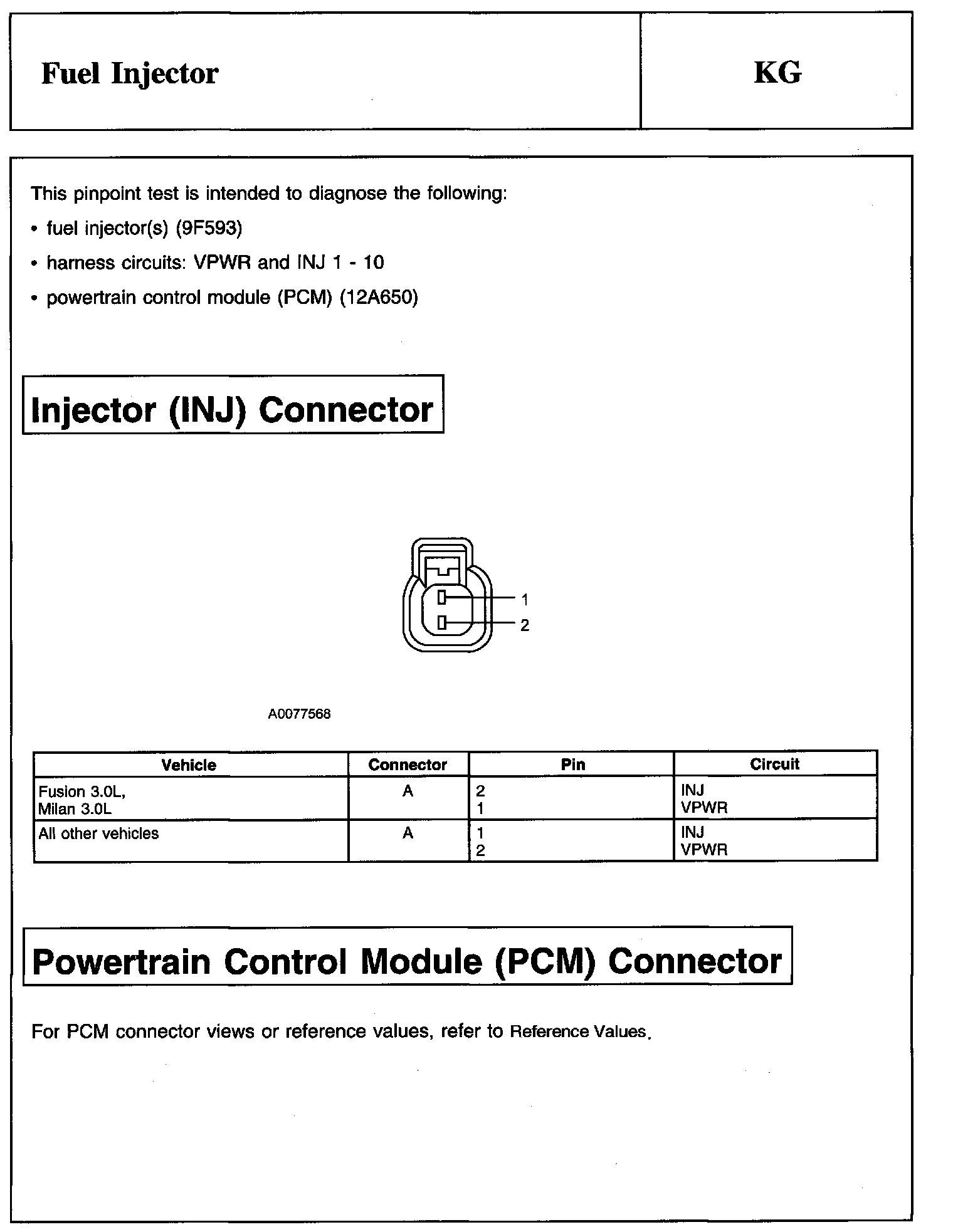

Description, Injector (INJ) Connector And Powertrain Control Module (PCM) Connector:

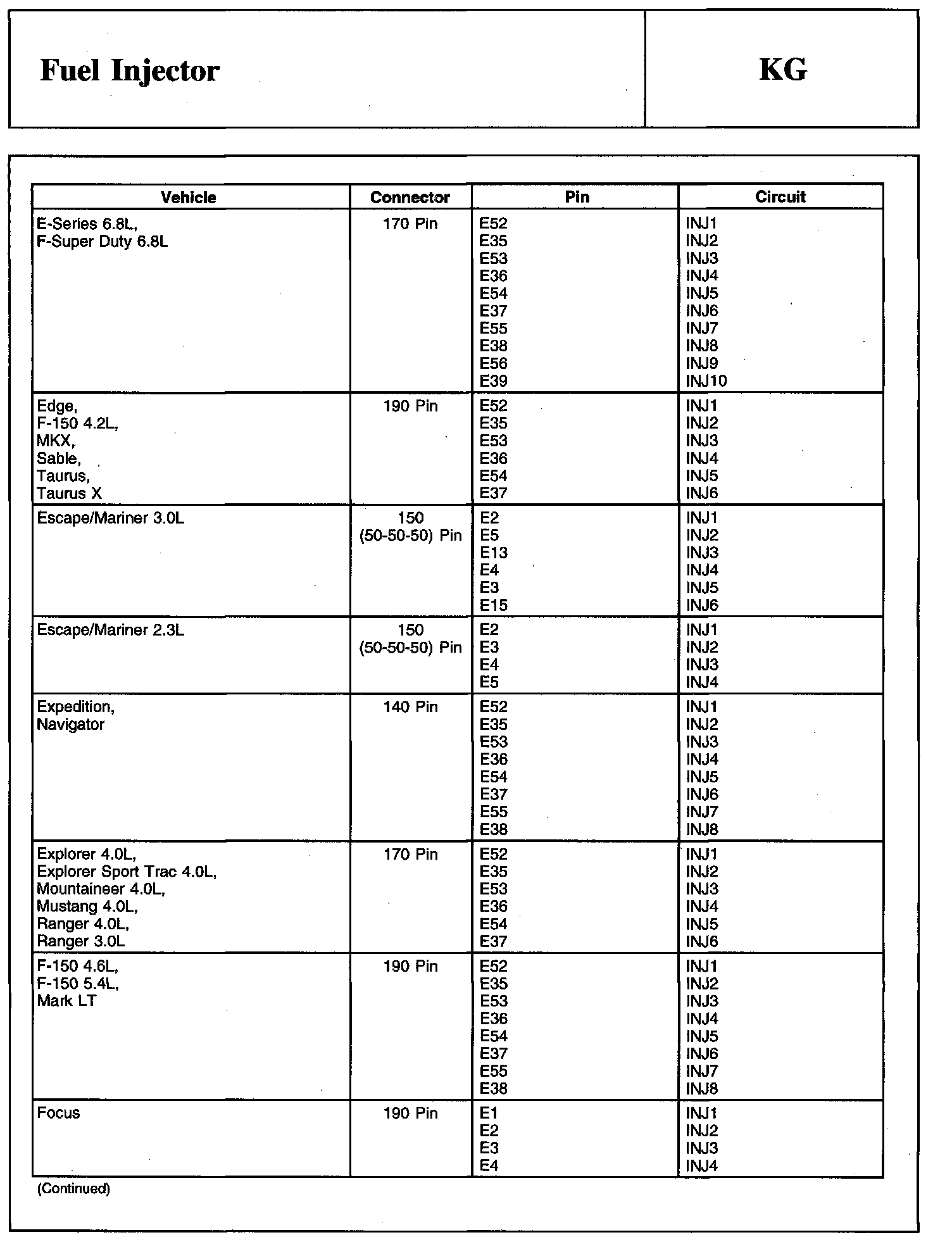

Powertrain Control Module (PCM) Connector Continued:

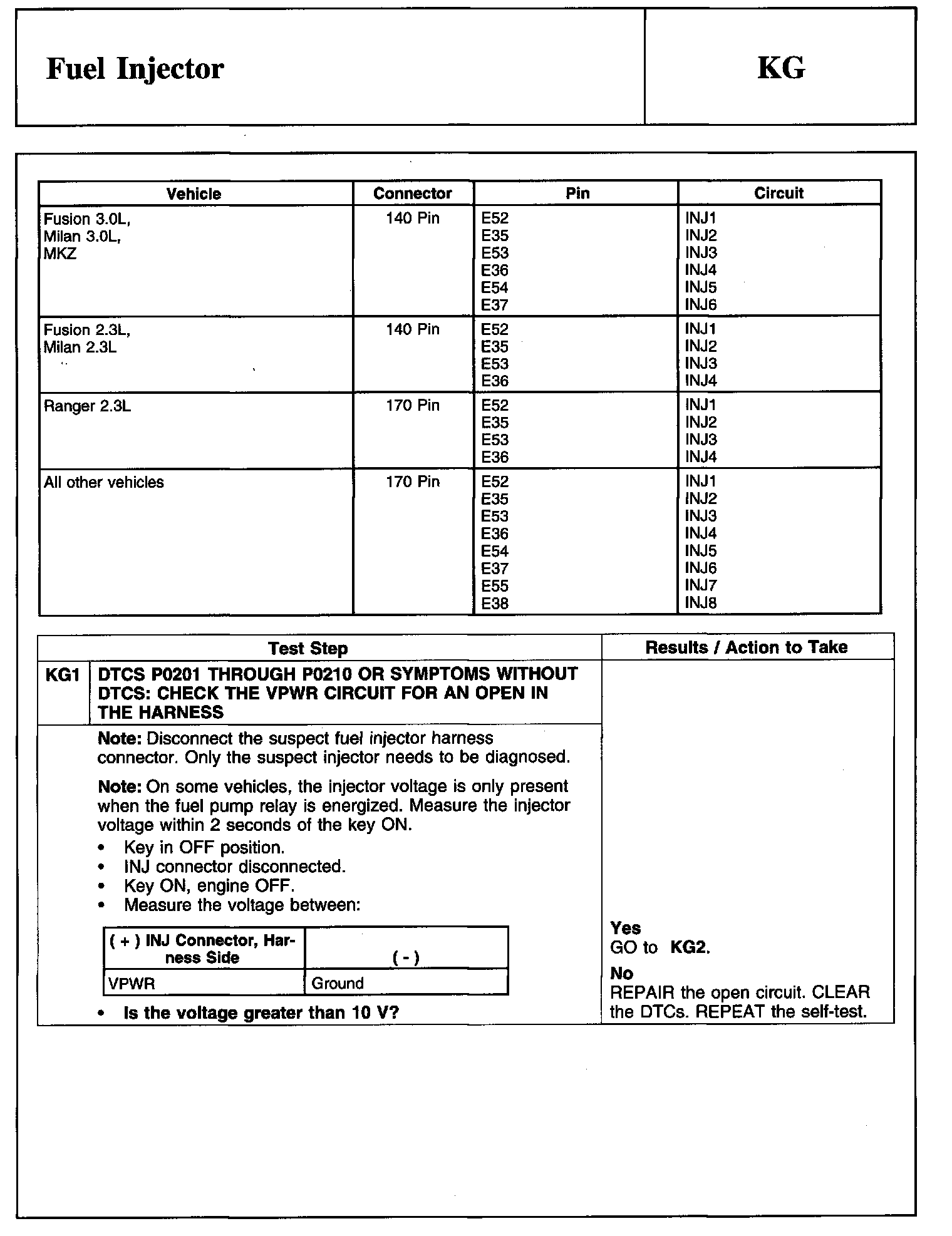

KG1:

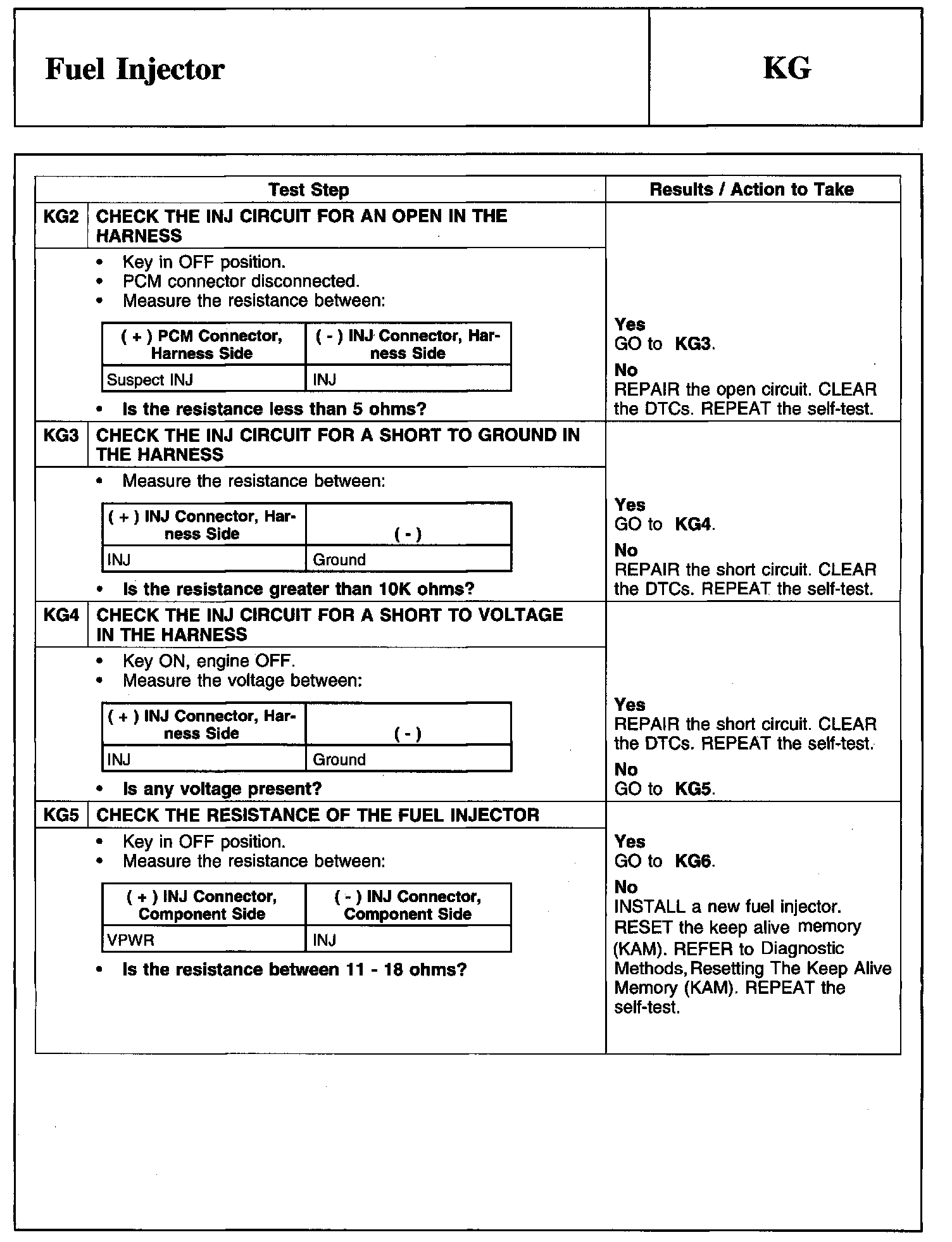

KG2-KG5:

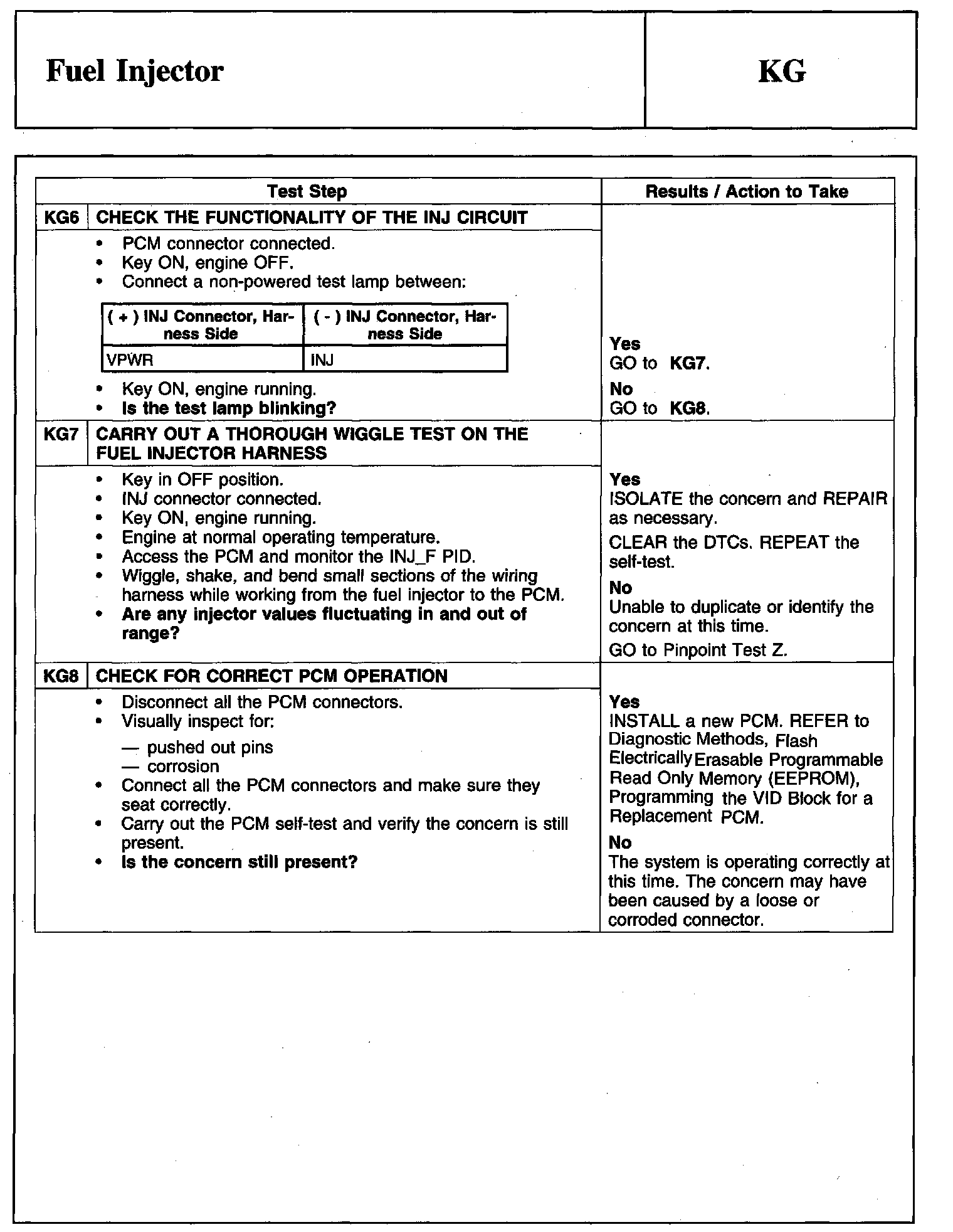

KG6-KG8:
