Pinpoint Test L: The HVAC Module Does Not Respond to the Scan Tool
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Pinpoint Test L: The HVAC Module Does Not Respond to the Scan Tool
Pinpoint Test L: The HVAC Module Does Not Respond to the Scan Tool

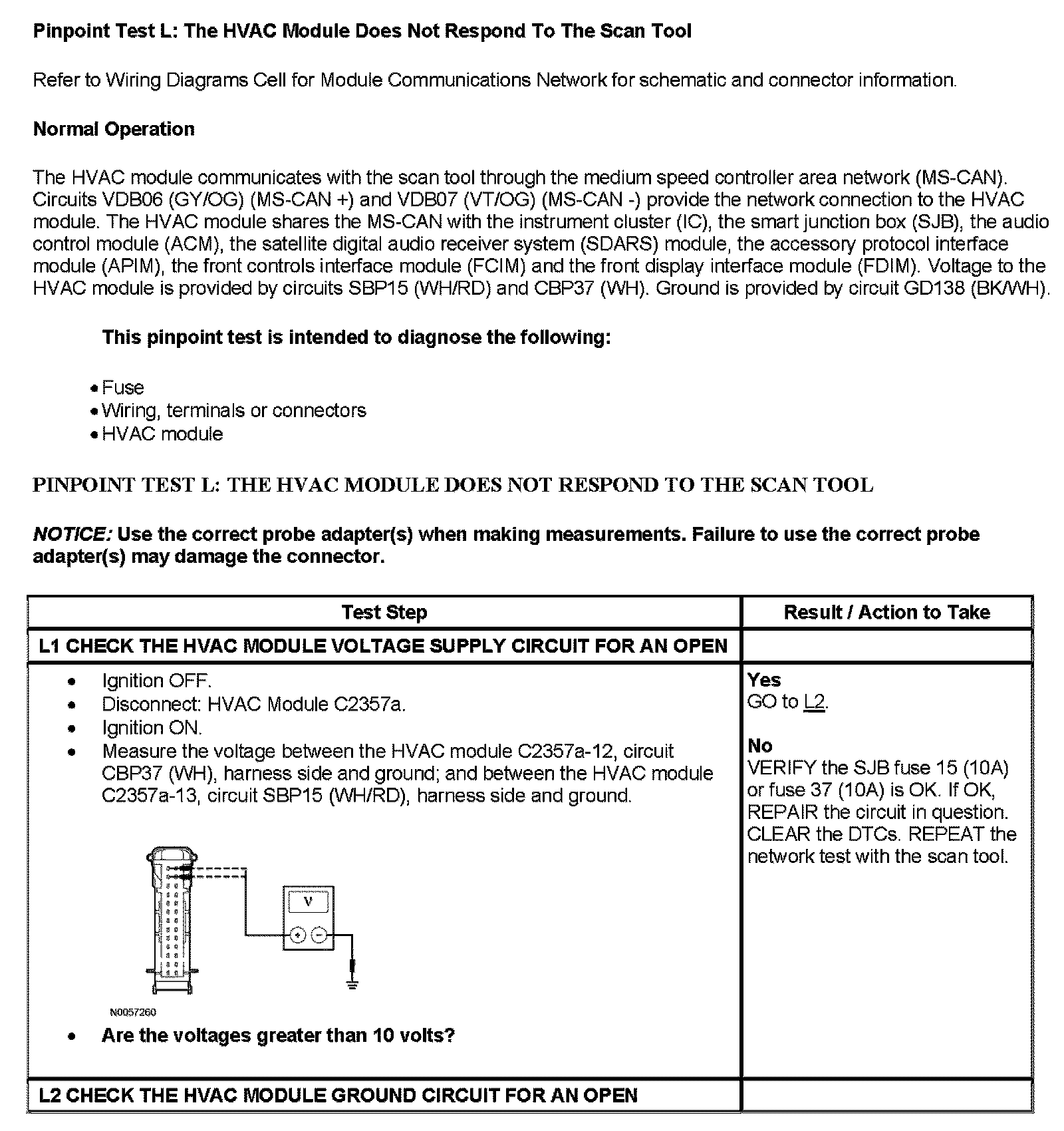

Pinpoint Test L1-L2:

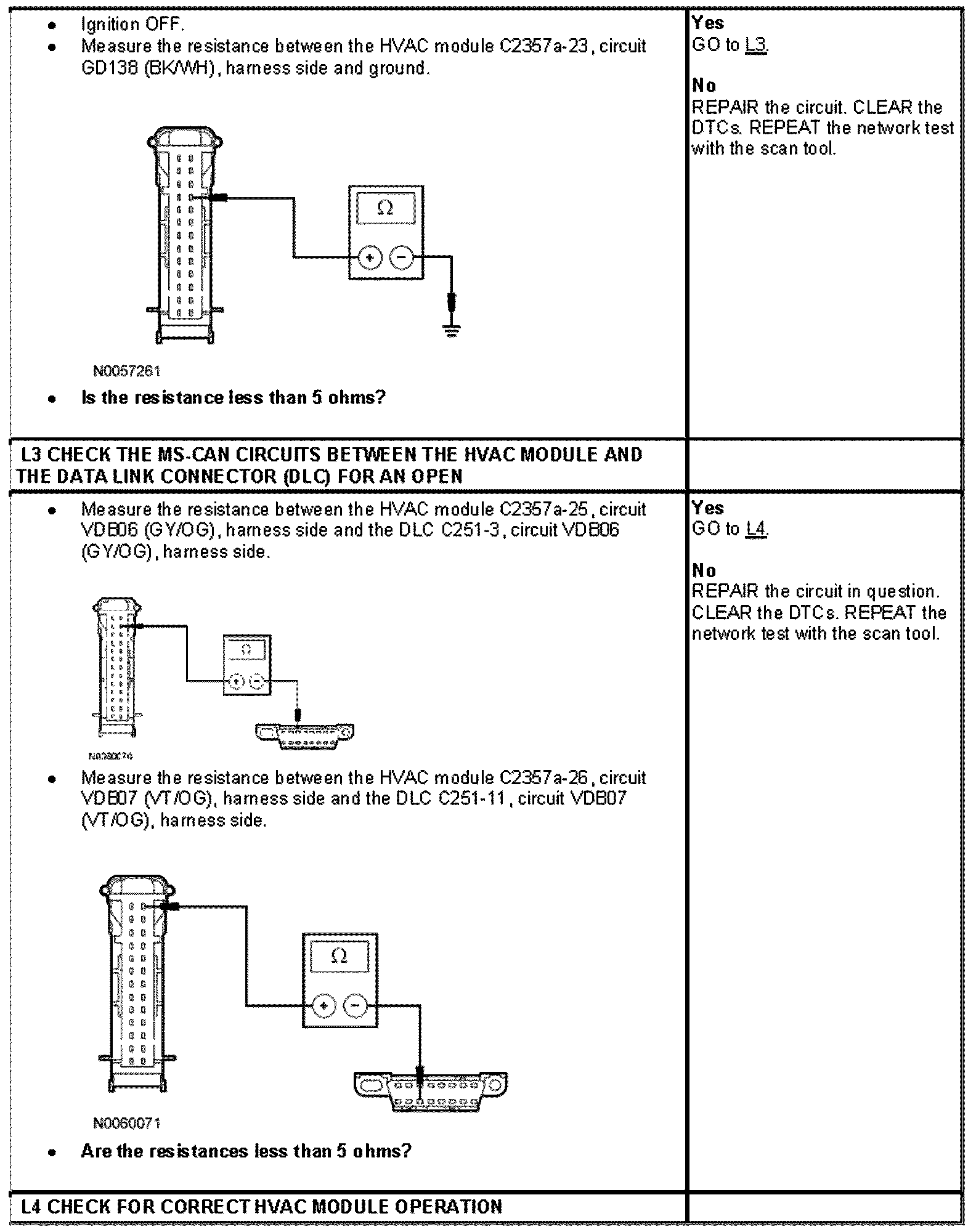

Pinpoint Test L2 Cont'd-L4:

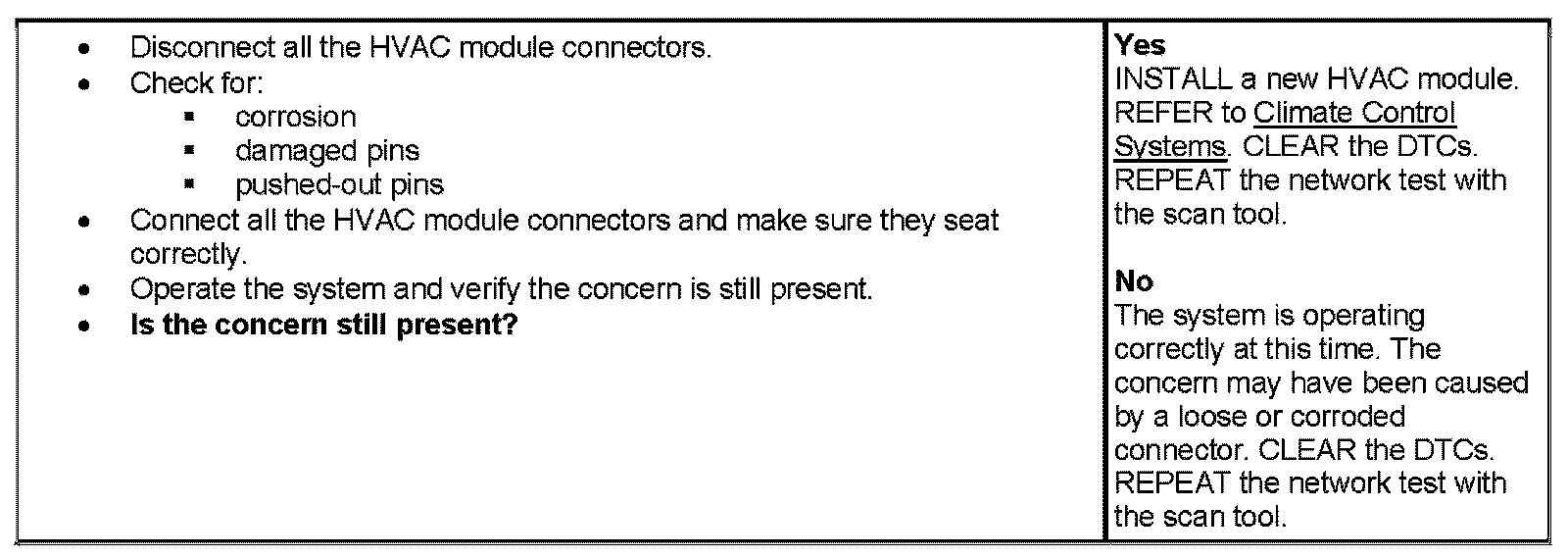

Pinpoint Test L4 Cont'd.:
