Oil Pressure Sender

Engine Lubrication Components Exploded View

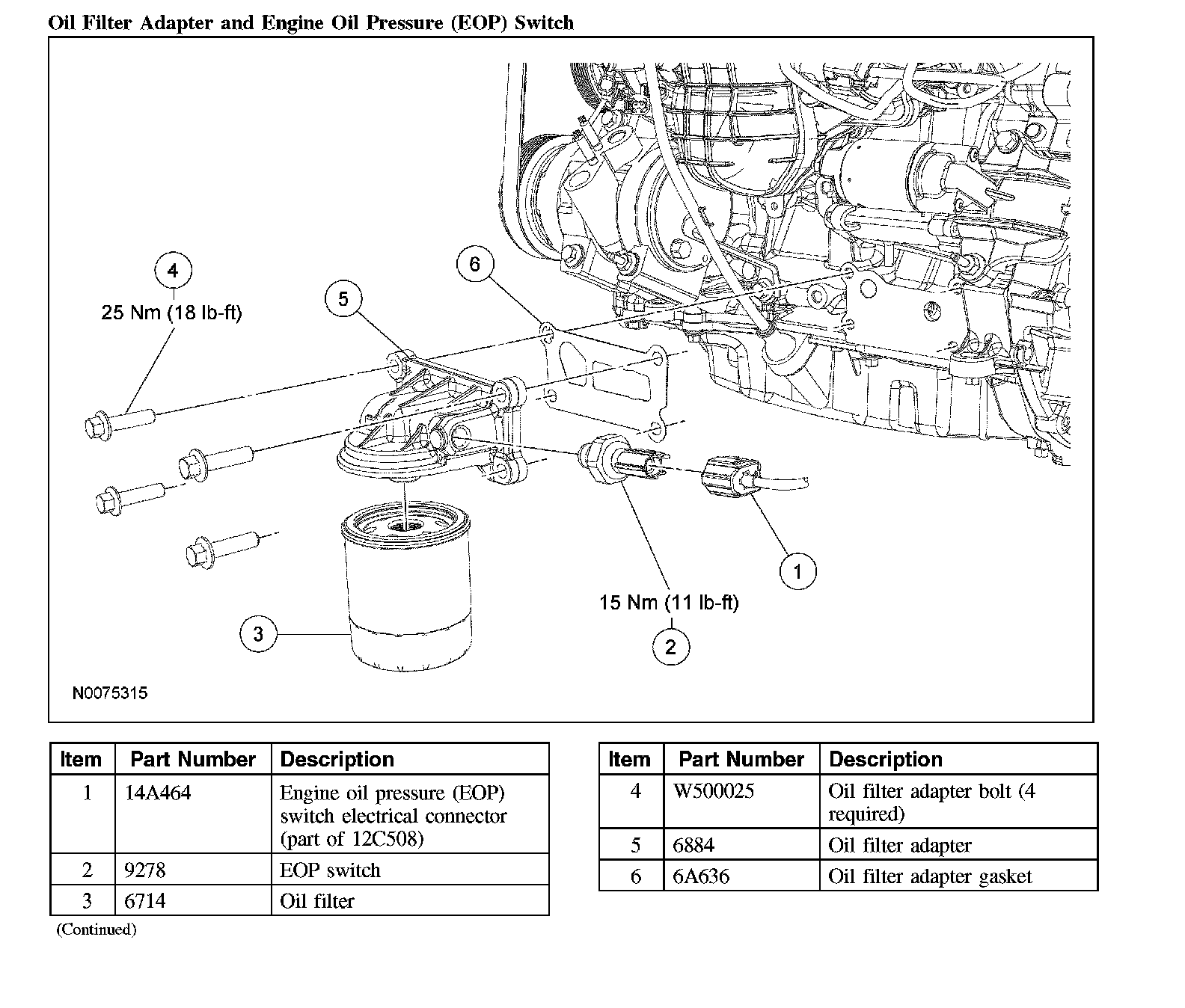

Oil Filter Adapter and Engine Oil Pressure (EOP) Switch

Oil Filter Adapter and Engine Oil Pressure (EOP) Switch:
