Power Mirror Motor: Service and Repair

EXTERIOR MIRROR MOTOR

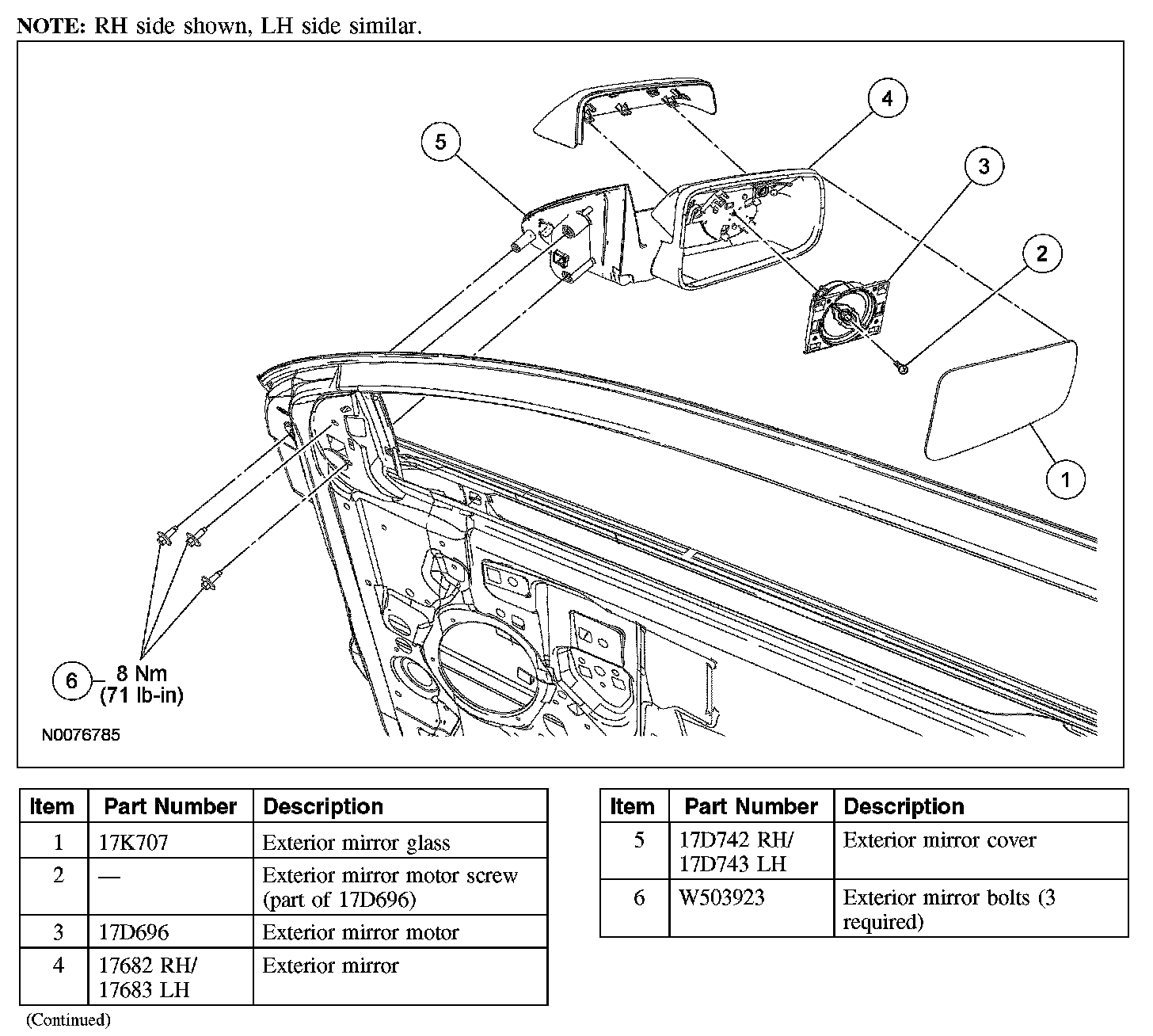

Exploded View







Removal and Installation
1. Remove the exterior mirror glass.
2. Remove the exterior mirror motor screw.







3. NOTE: The exterior mirror motor is removed for clarity.

With a flat-blade tool, release the 3 exterior mirror retaining tabs.







4. Remove the exterior mirror motor.
- Disconnect the exterior mirror electrical connector.

5. To install, reverse the removal procedure.
