Test K: The Smart Unlock Does Not Operate Correctly

PINPOINT TEST K: THE SMART UNLOCK DOES NOT OPERATE CORRECTLY

Normal Operation
The smart junction box (SJB) automatically unlocks all the doors after the doors are locked with a door lock control switch and the key is in the ignition lock cylinder and one of the front doors is ajar.

This pinpoint test is intended to diagnose the following:
- Key-in-ignition switch
- Door ajar switch input
- SJB

K1-K2:

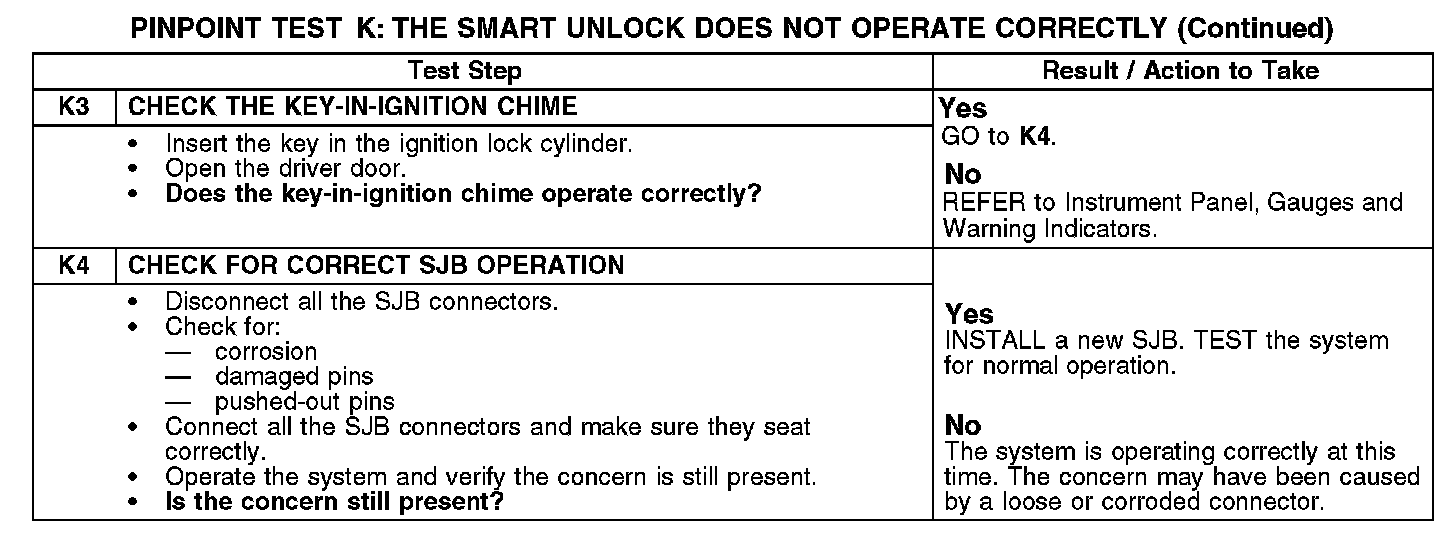

K3-K4:
