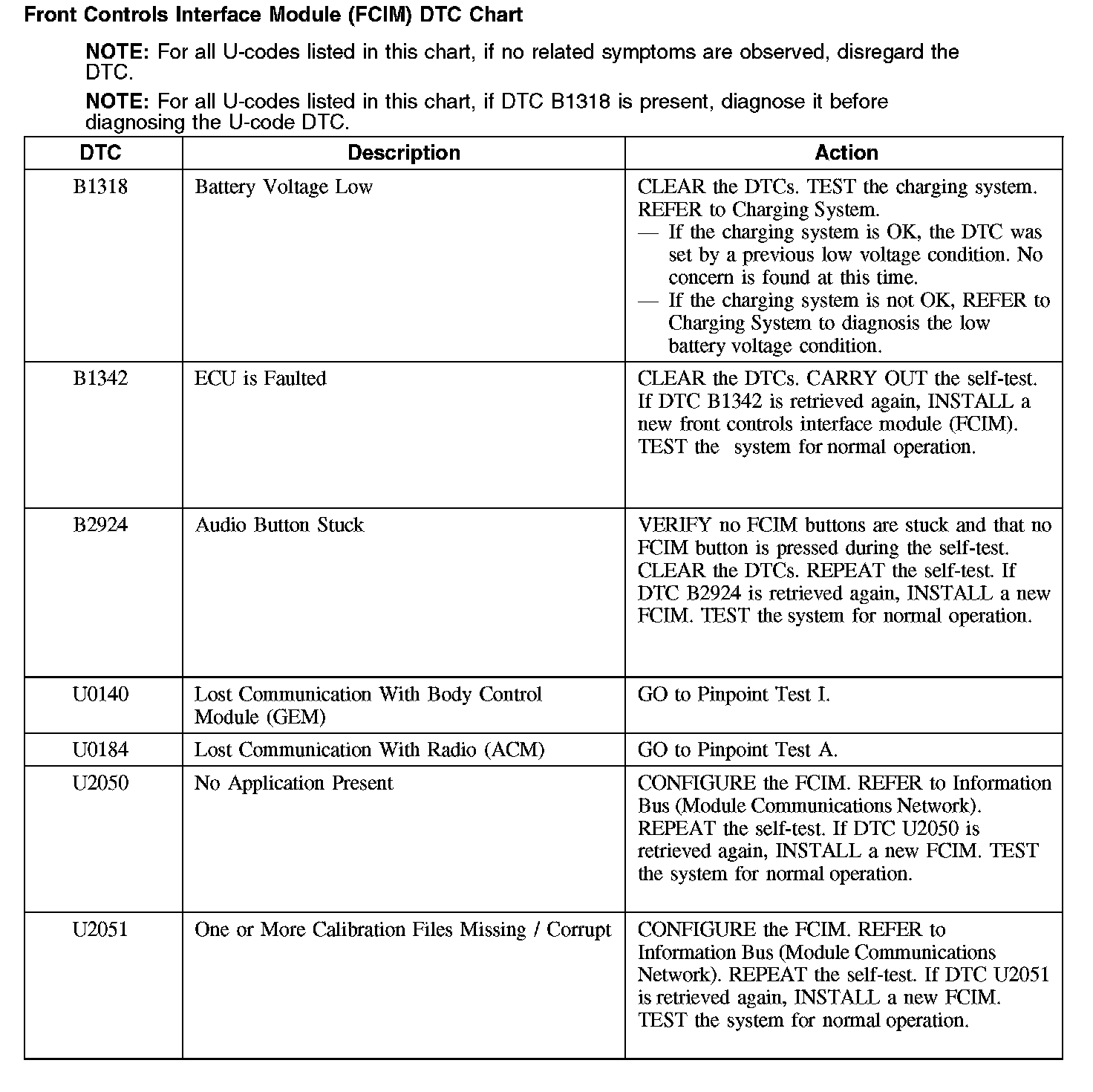

Front Controls Interface Module (FCIM) DTC Chart
B1318-B2924 / U0140-U2051:
B1318-B2477 / U0140-U2051:
