Cabin Temperature Sensor / Switch: Service and Repair

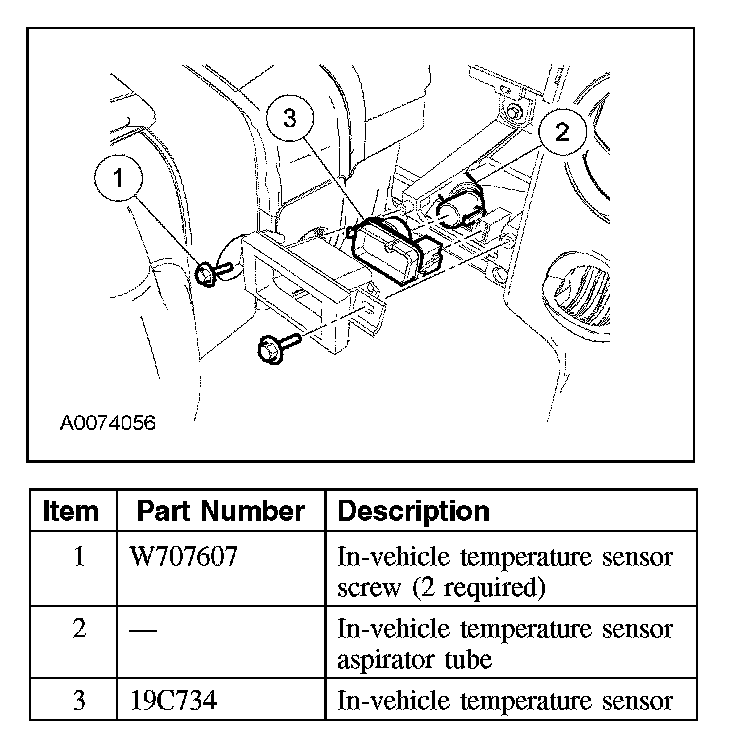

IN-VEHICLE TEMPERATURE SENSOR







Removal and Installation
1. Remove the instrument cluster finish panel.
2. Remove the 2 in-vehicle temperature sensor screws.
3. Remove the temperature sensor finish panel.
4. Remove the in-vehicle temperature sensor.
5. To install, reverse the removal procedure.
