System Diagram

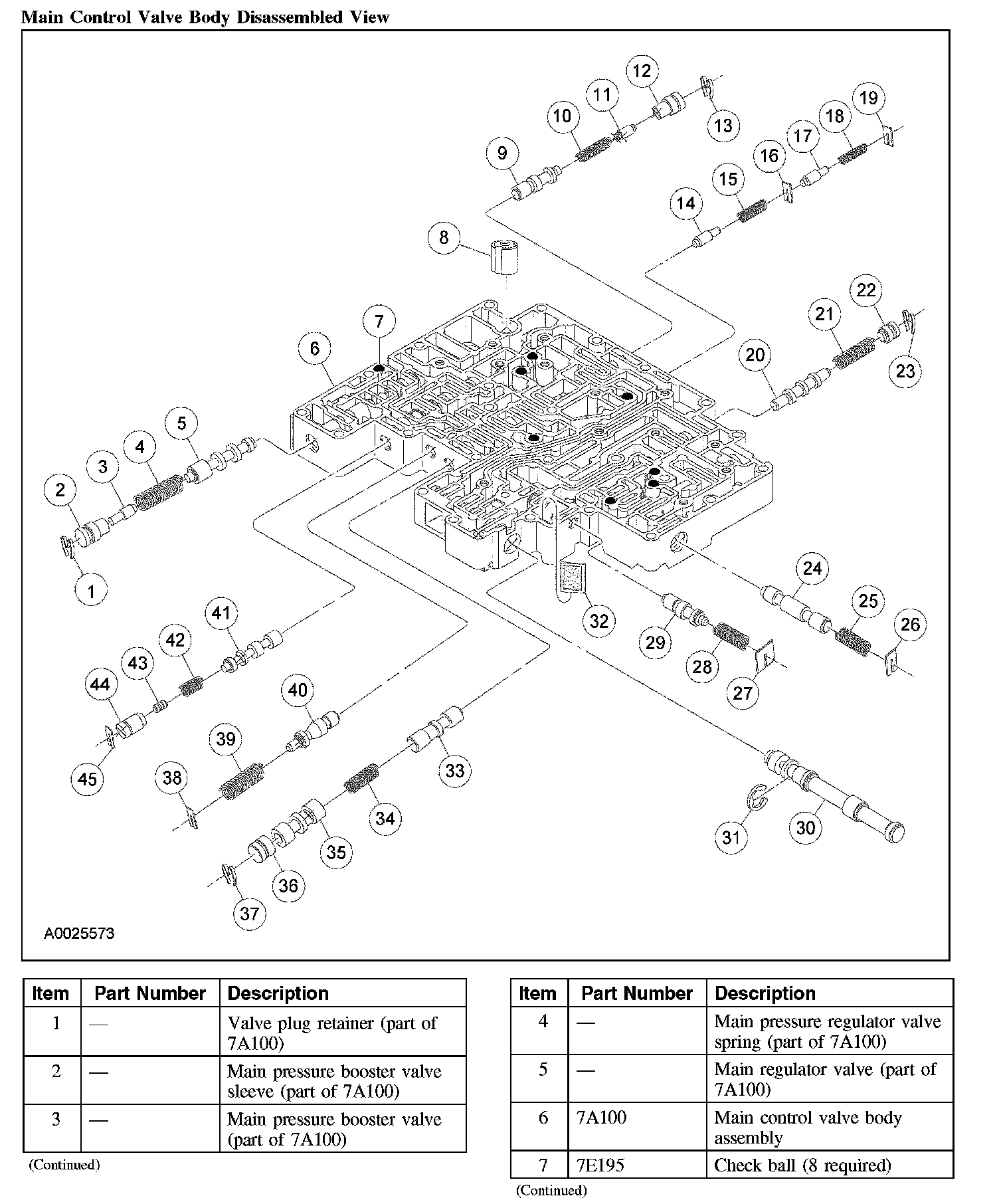

Main Control Valve Body Disassembled View (Part 1):

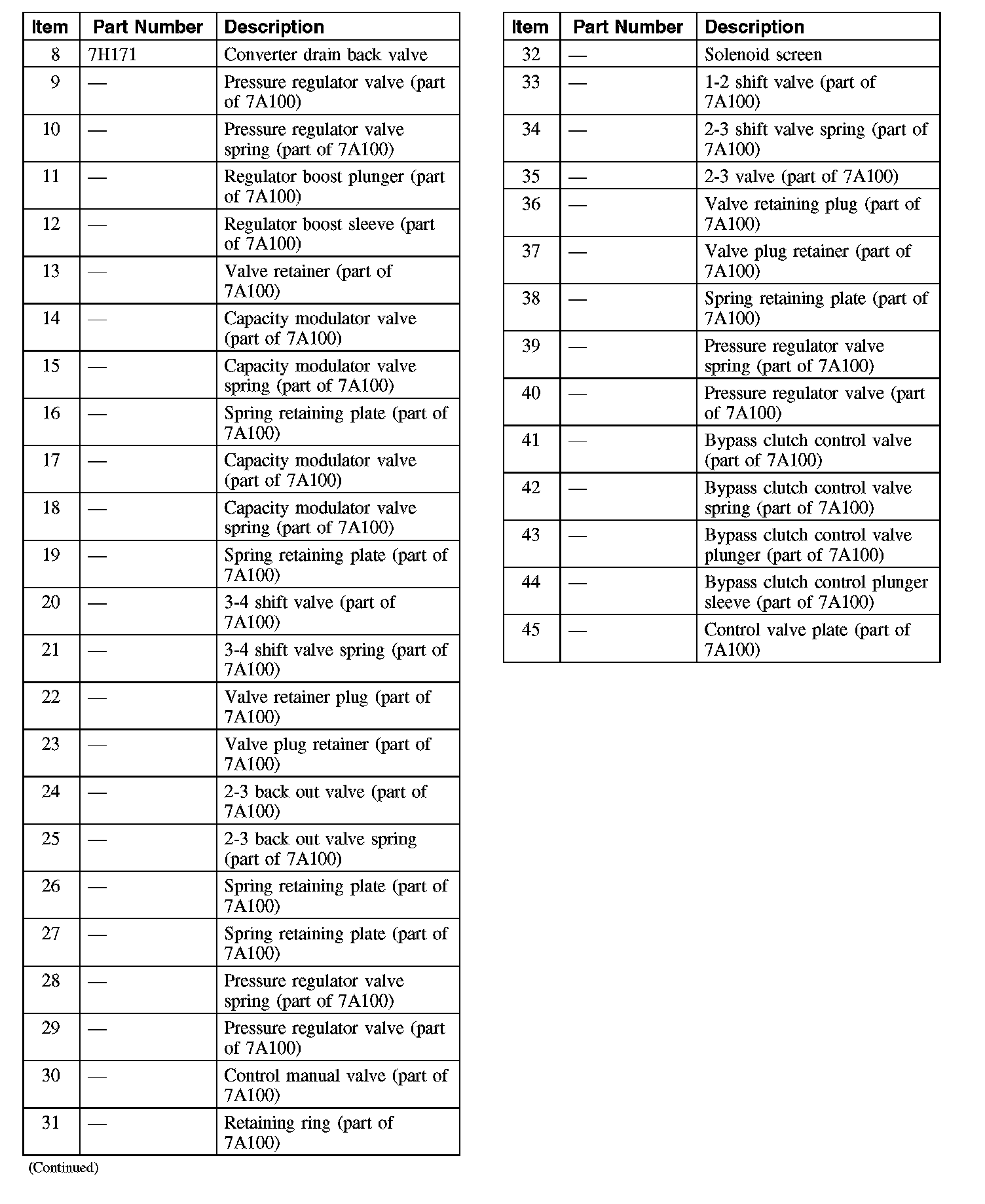

Main Control Valve Body Disassembled View (Part 2):
