Climate Control Assembly

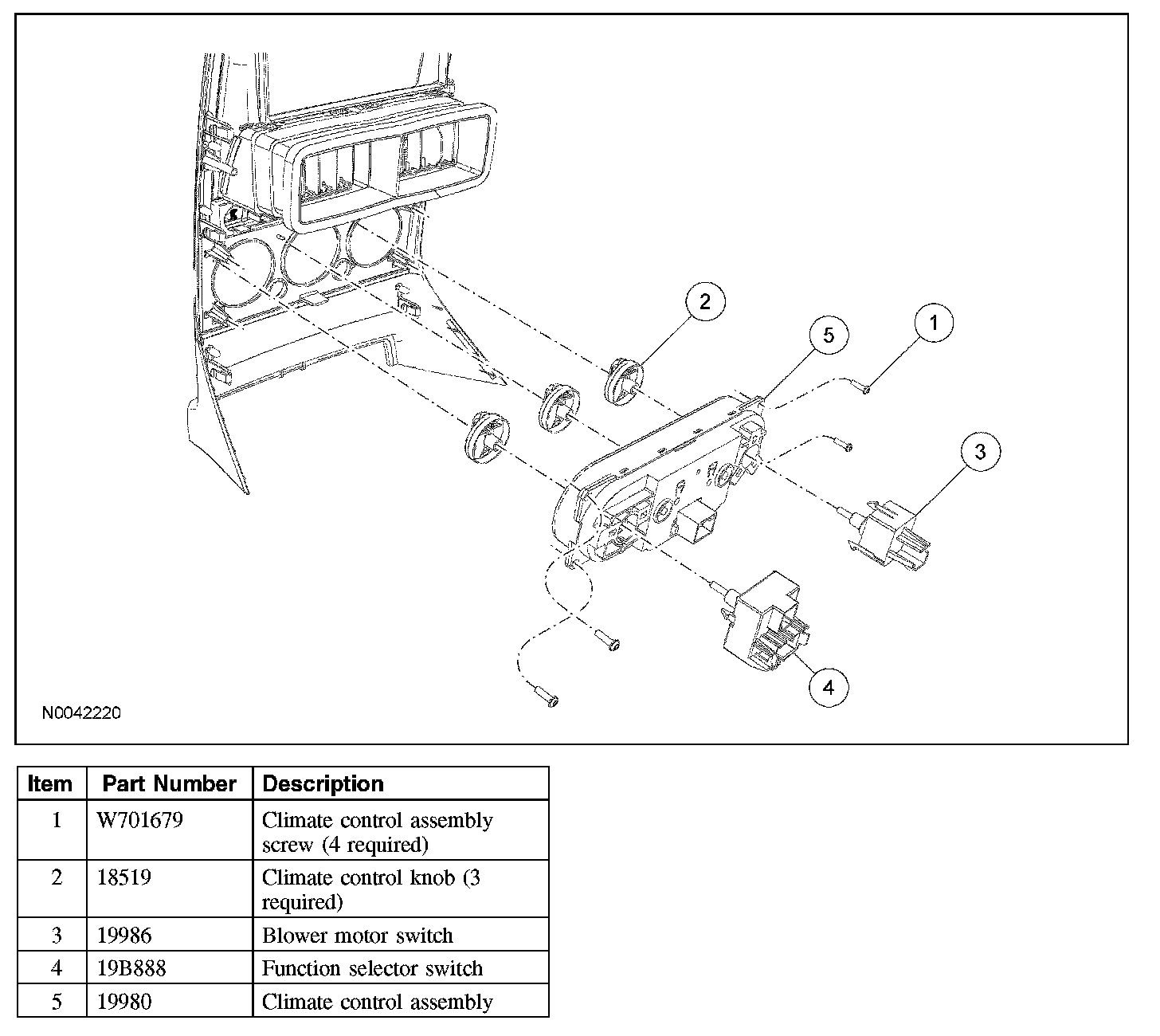

CLIMATE CONTROL ASSEMBLY







Removal and Installation
1. Remove the center instrument panel finish panel. Service and Repair
2. Remove the 4 climate control assembly screws.
3. Remove the climate control assembly.
4. Remove the 3 climate control knobs.
5. Depress the tabs and remove the blower motor switch.







6. Depress the tabs and remove the function selector switch.







7. To install, reverse the removal procedure.
