Auxiliary Climate Control Assembly

AUXILIARY CLIMATE CONTROL ASSEMBLY

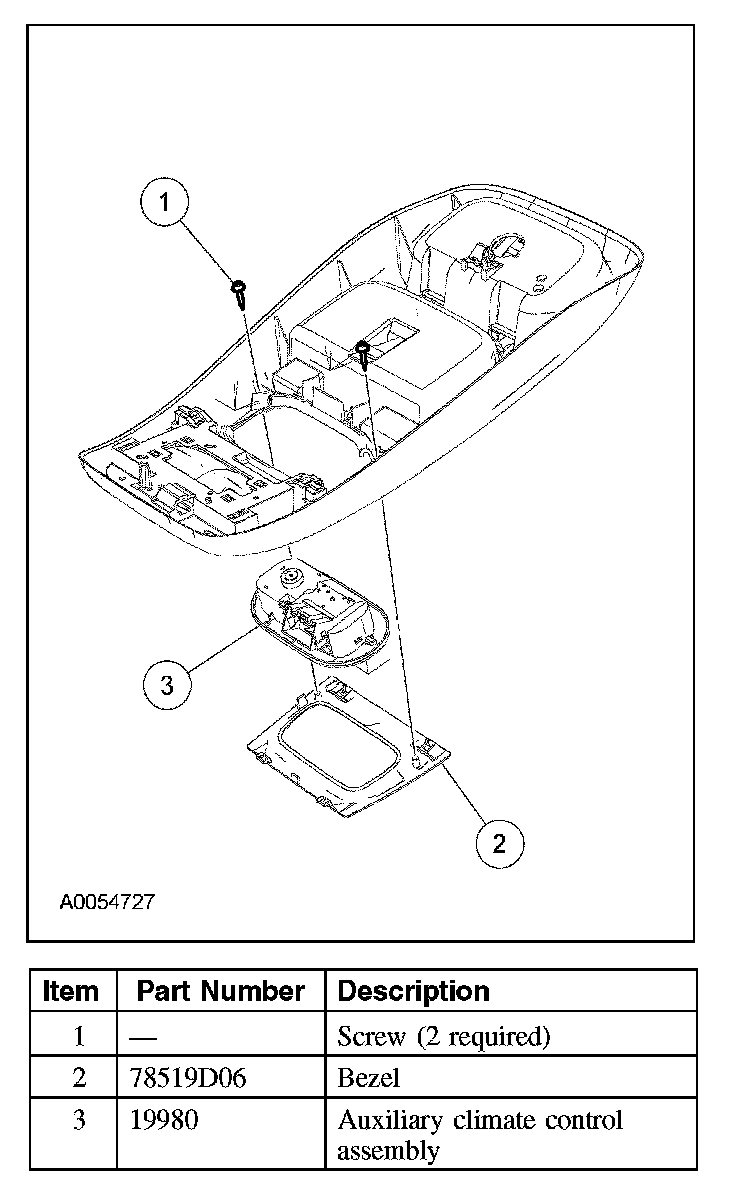

Removal and Installation
1. Remove the overhead console. Console - Overhead
2. Remove the 2 screws.
3. Remove the bezel.
4. Remove the auxiliary climate control assembly.
5. To install, reverse the removal procedure.
