Control Module: Service and Repair

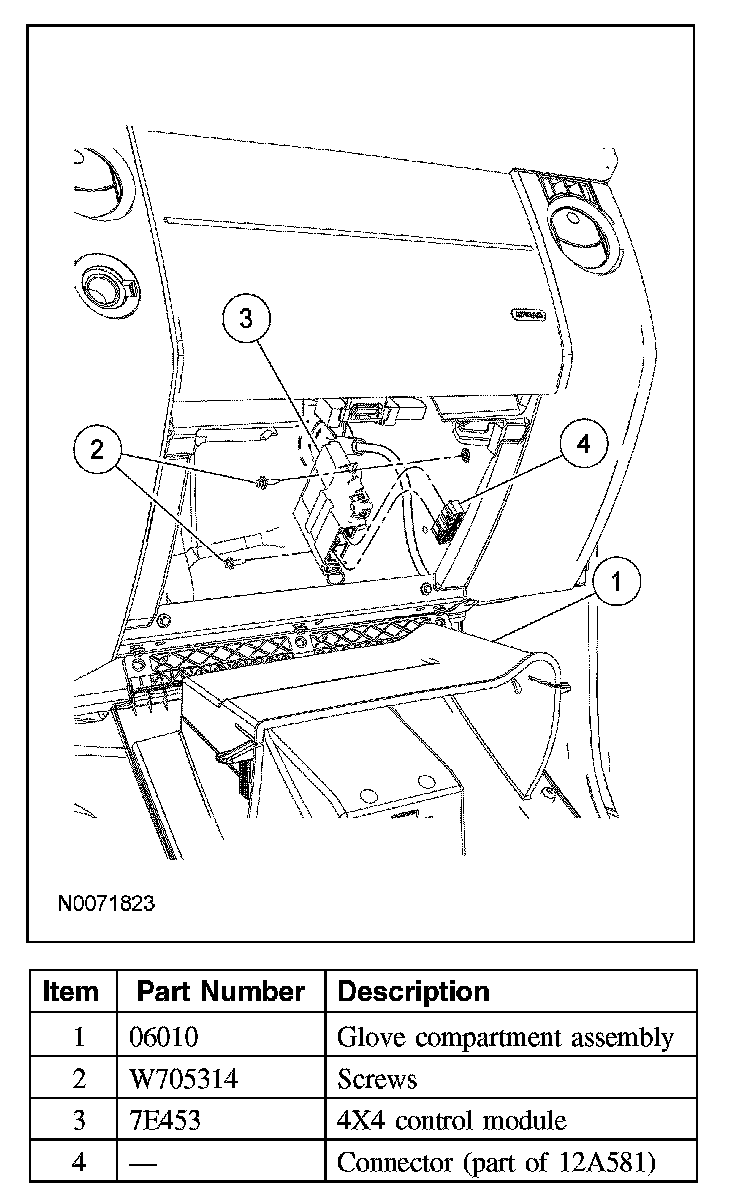

4X4 Control Module

Removal and Installation

1. Lower the glove compartment assembly to gain access.
2. Remove the two 4X4 control module screws.
3. Disconnect the electrical connectors.
4. Remove the 4X4 control module.
5. To install, reverse the removal procedure.
