Safety Belt Retractor - Rear: Notes

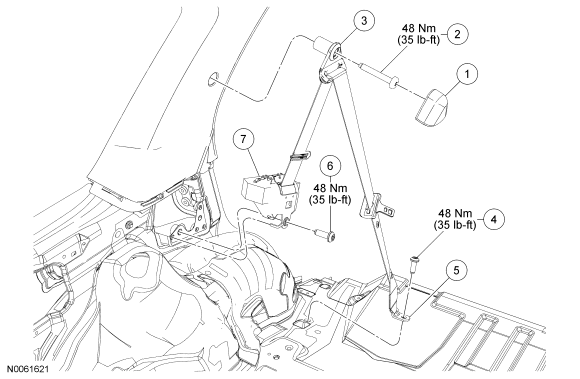

Fig 1: Safety Belt Retractor Components - Rear With Torque Specifications
GF0041928Courtesy of FORD MOTOR CO.
Item Part Number Description
1 613C46 D-ring cover
2 - D-ring bolt (part of 611B68)
3 - Safety belt D-ring (part of 611B68)
4 - Safety belt anchor bolt (part of 611B68)
5 - Safety belt anchor (part of 611B68)
6 - Safety belt retractor bolt (part or 611B68)
7 611B68 Rear safety belt retractor
