Escape Base, 3.0 1, AWD
>>
Repair and Diagnosis (Single Page)
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Connector End Views - (Except Hybrid)
>>
Connector End Views
>>
Powertrain Control Module Connector End View (C175B)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Powertrain Control Module Connector End View (C175B)

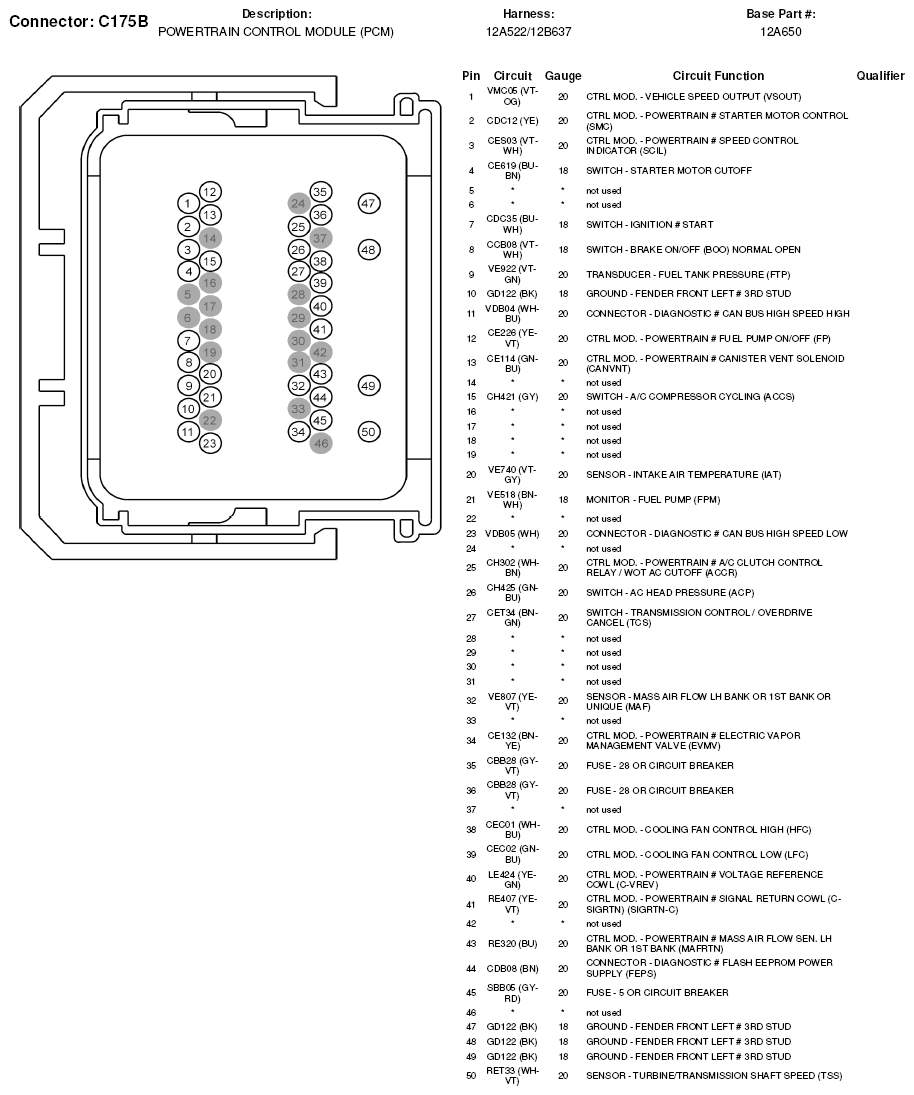

Fig 1: Powertrain Control Module Connector End View (C175B)
