Power Steering Control Module DTC Chart
Power Steering
Control Module DTC Chart

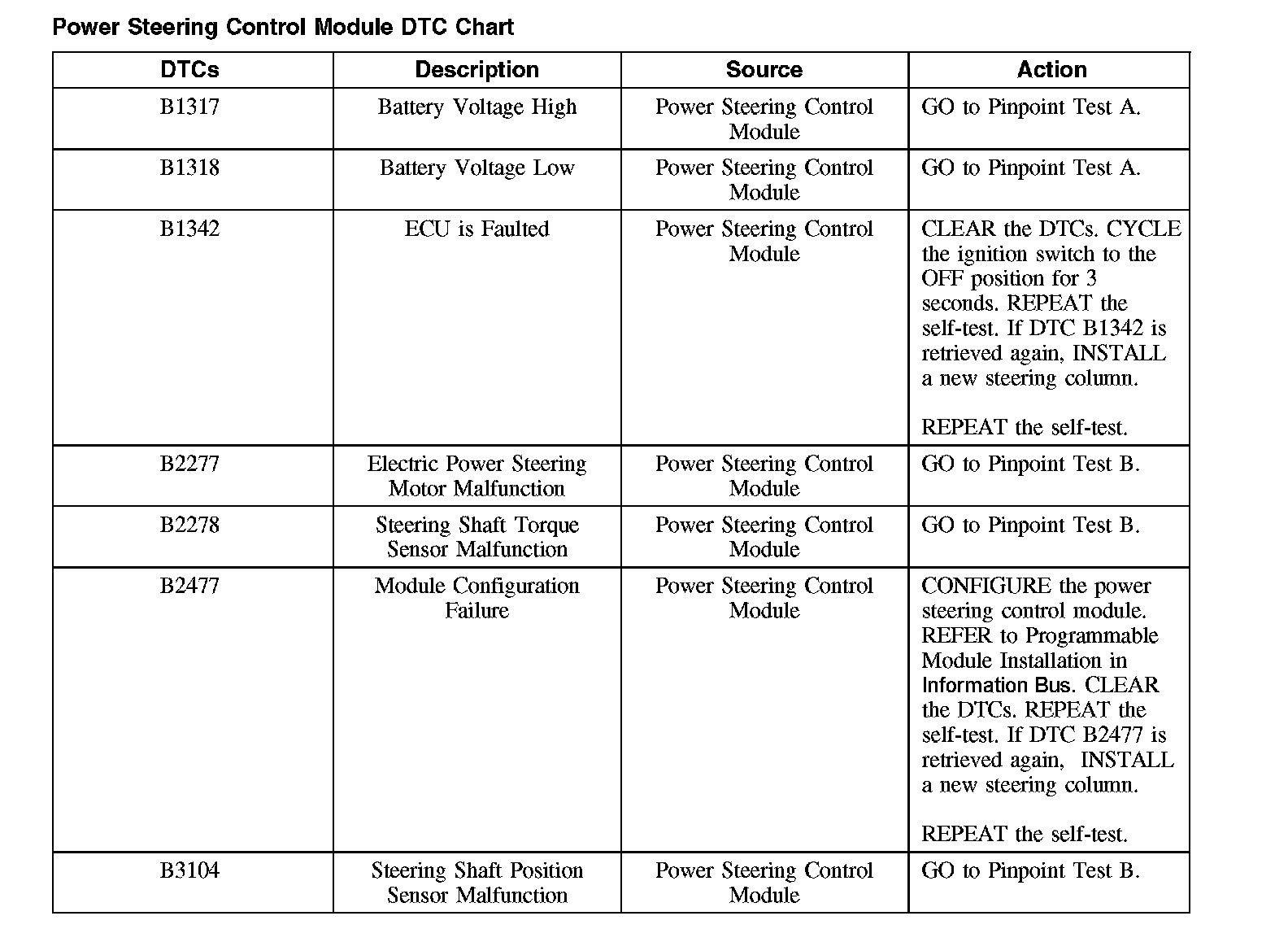

B1317-B3104:

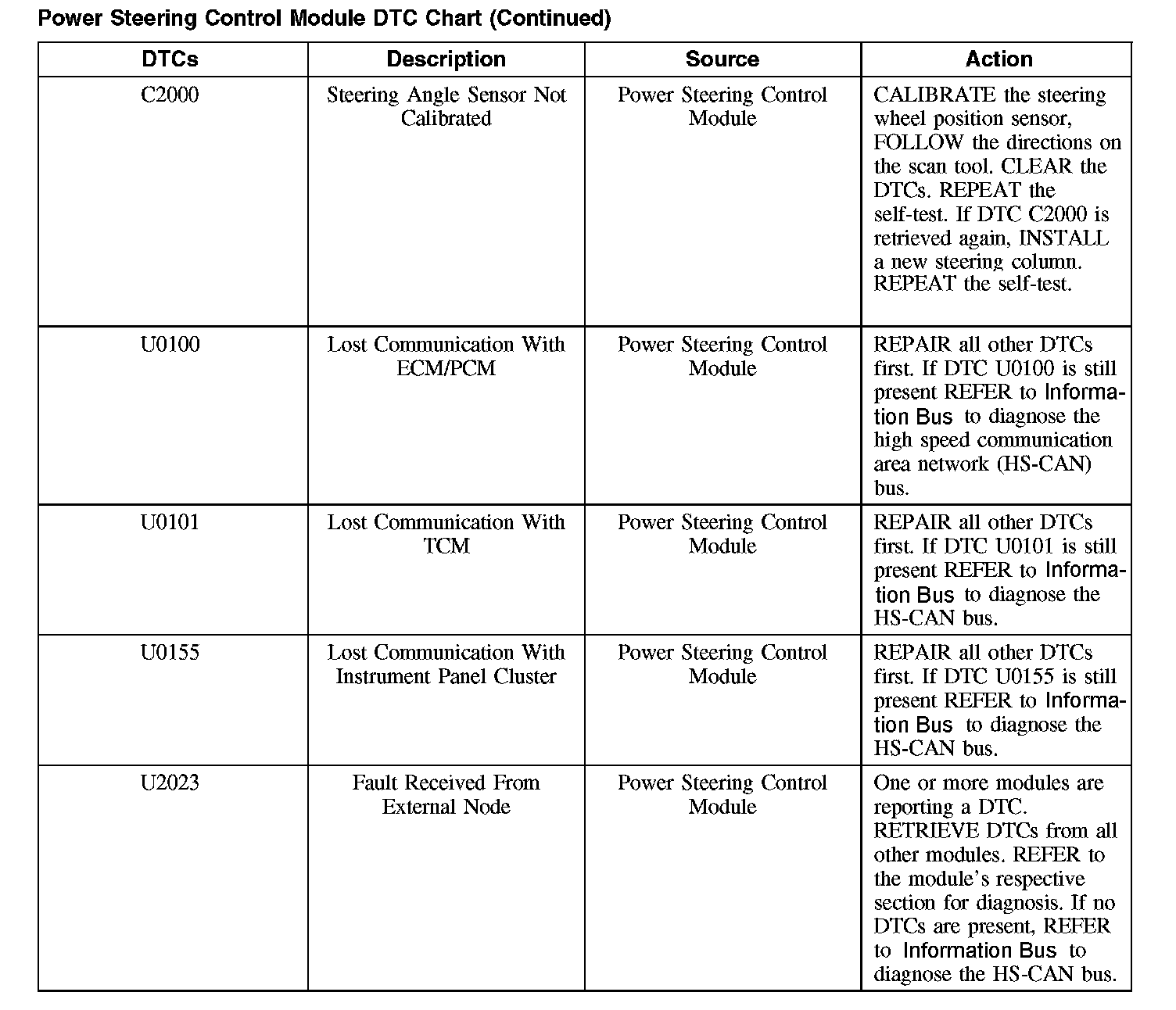

C2000 / U0100-U2023:
