Rear Suspension - Exploded View
Rear
Suspension
- Exploded View

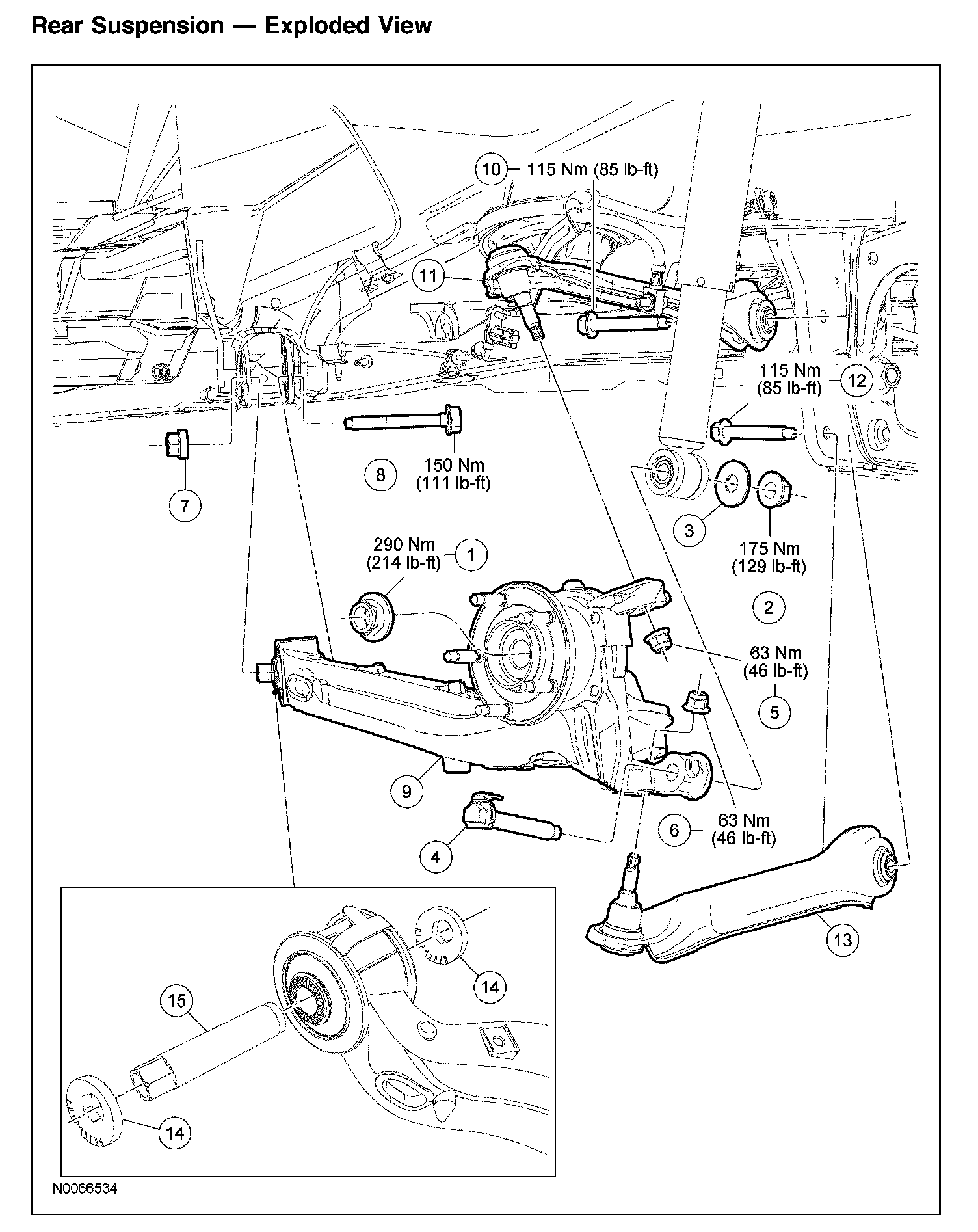

Rear Suspension - Exploded View (Part 1):
Rear Suspension - Exploded View (Part 2):
