Front Display Interface Module (FDIM)

FRONT DISPLAY INTERFACE MODULE (FDIM)







Removal and Installation

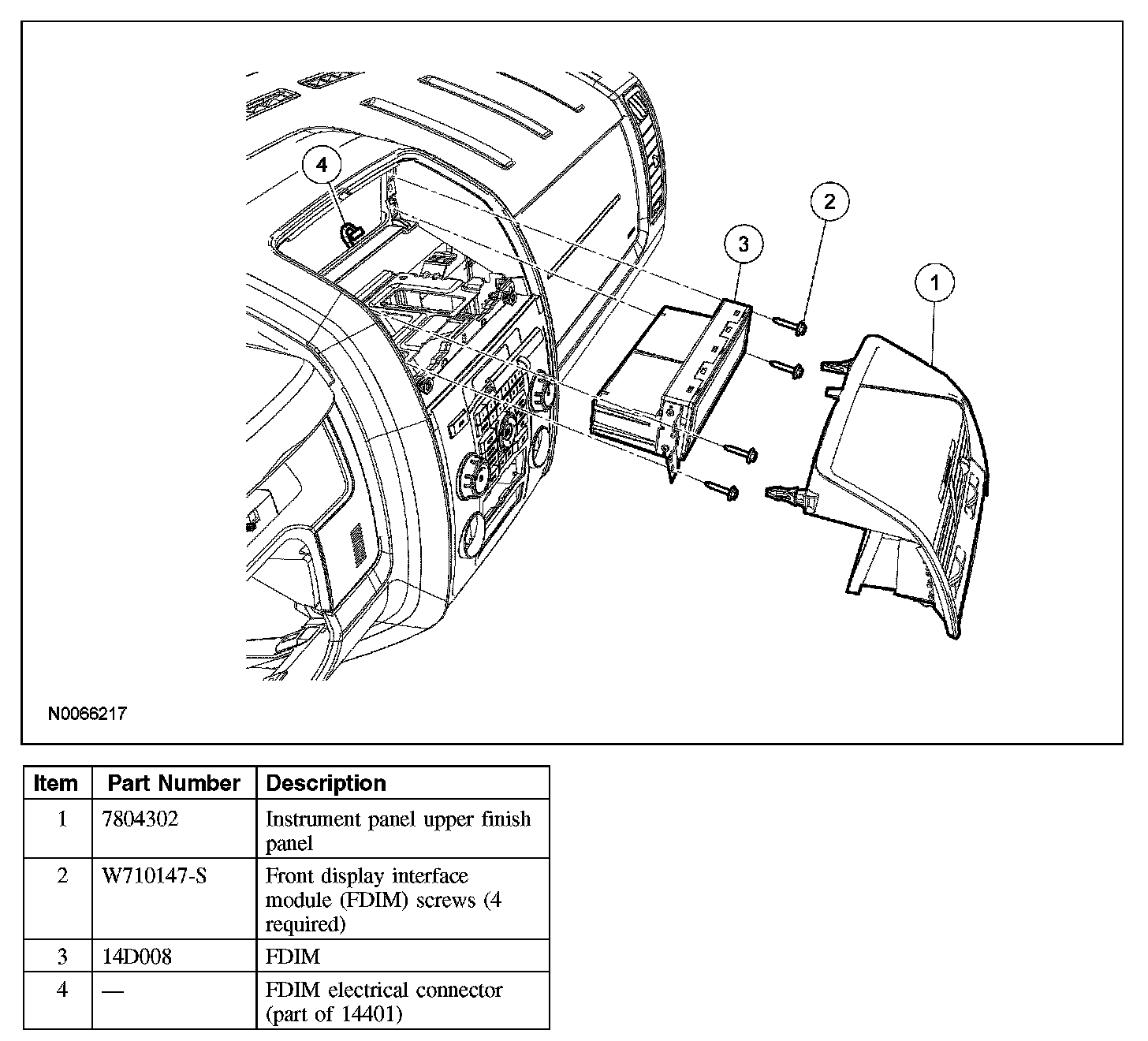

1. Remove the instrument panel upper finish panel by pulling straight back.
2. Remove the 4 FDIM screws.
3. Remove the FDIM.
- Disconnect the electrical connector.

4. To install, reverse the removal procedure.
