Drive Belt

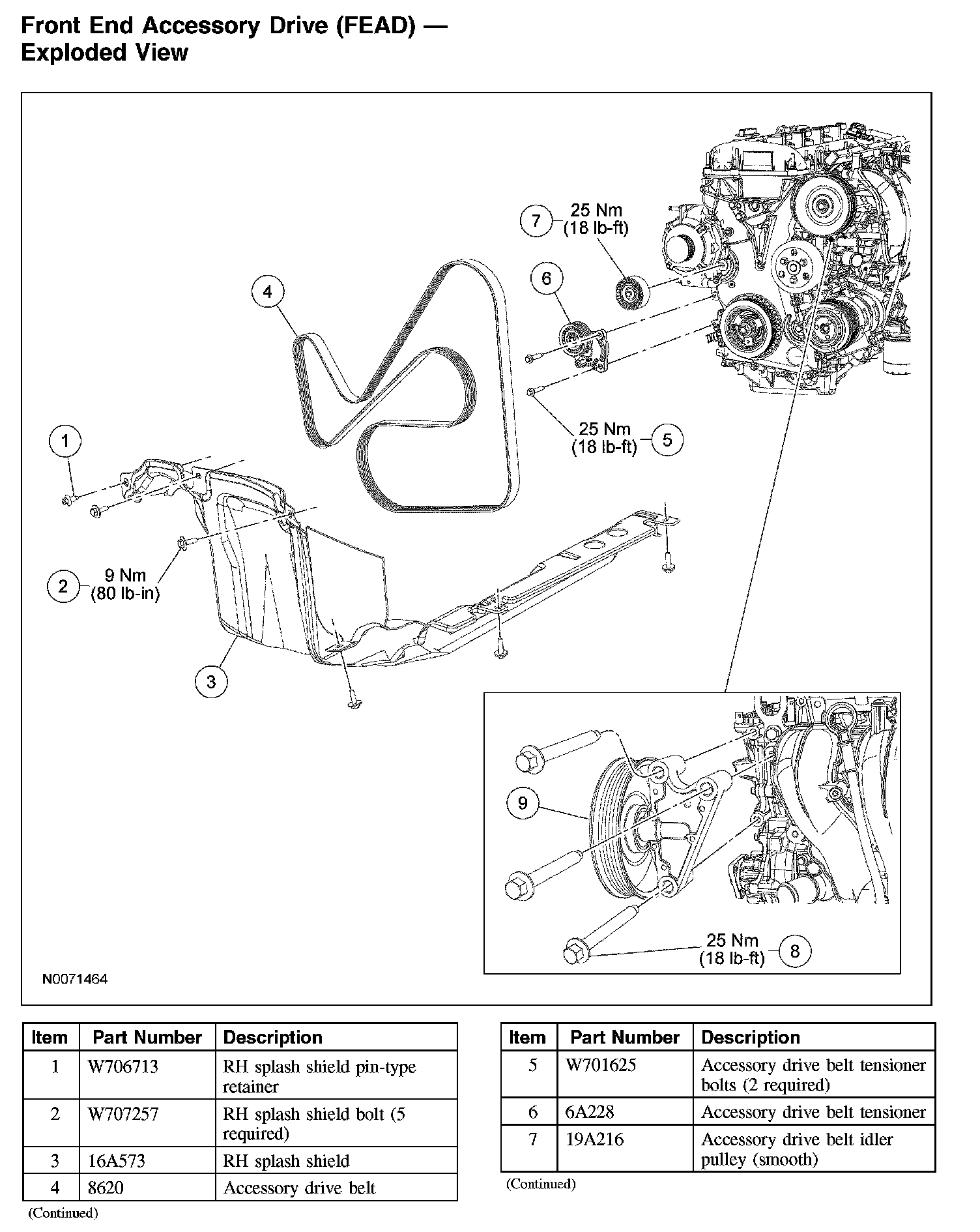

Front End Accessory Drive (FEAD) - Exploded View

Front End Accessory Drive (FEAD) - Exploded View (Part 1):




Front End Accessory Drive (FEAD) - Exploded View (Part 2):
