Passenger Side Climate Controlled Seat Cushion Module Connector

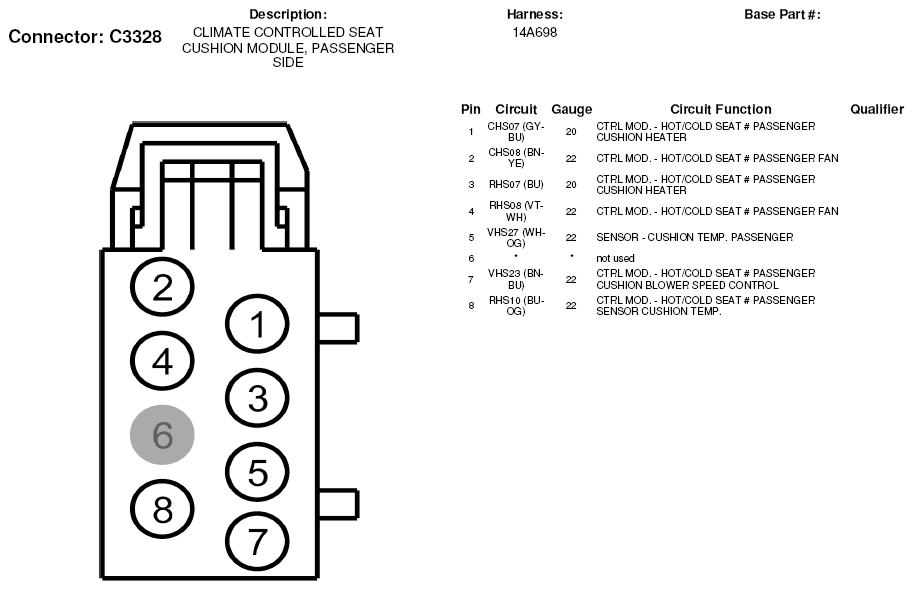

Fig 1: Passenger Side Climate Controlled Seat Cushion Module Connector End View (C3328)
