Left Front Speaker Connector

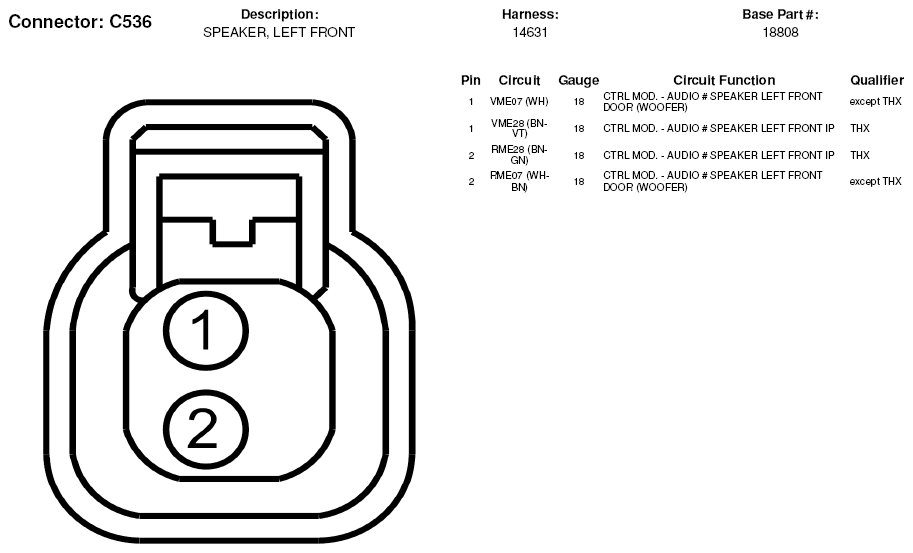

Fig 1: Left Front Speaker Connector End View (C536)
Fig 2: Left Front Speaker Connector End View (C570A)

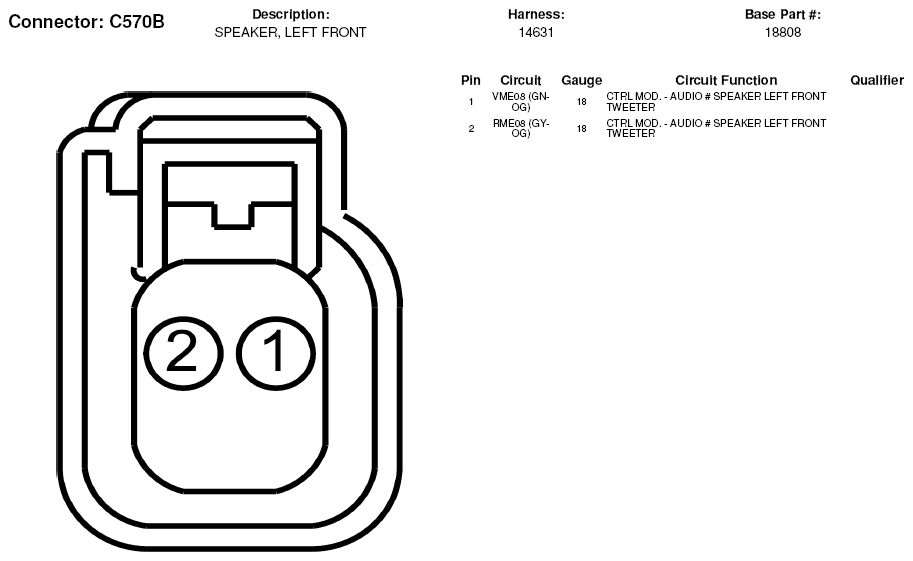

Fig 3: Left Front Speaker Connector End View (C570B)
