Driver Side Climate Controlled Seat Cushion Module Connector

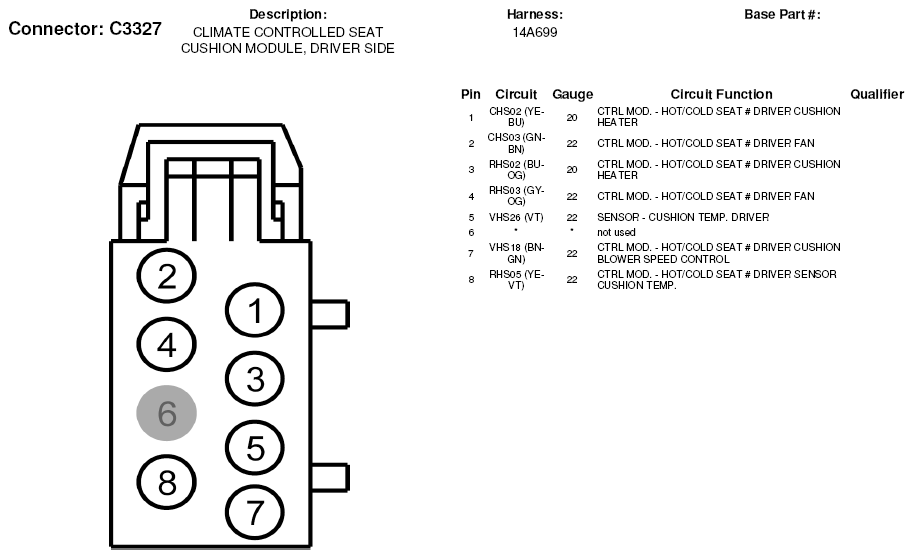

Fig 1: Driver Side Climate Controlled Seat Cushion Module Connector End View (C3327)
