Steering Angle Sensor Module DTC Chart
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

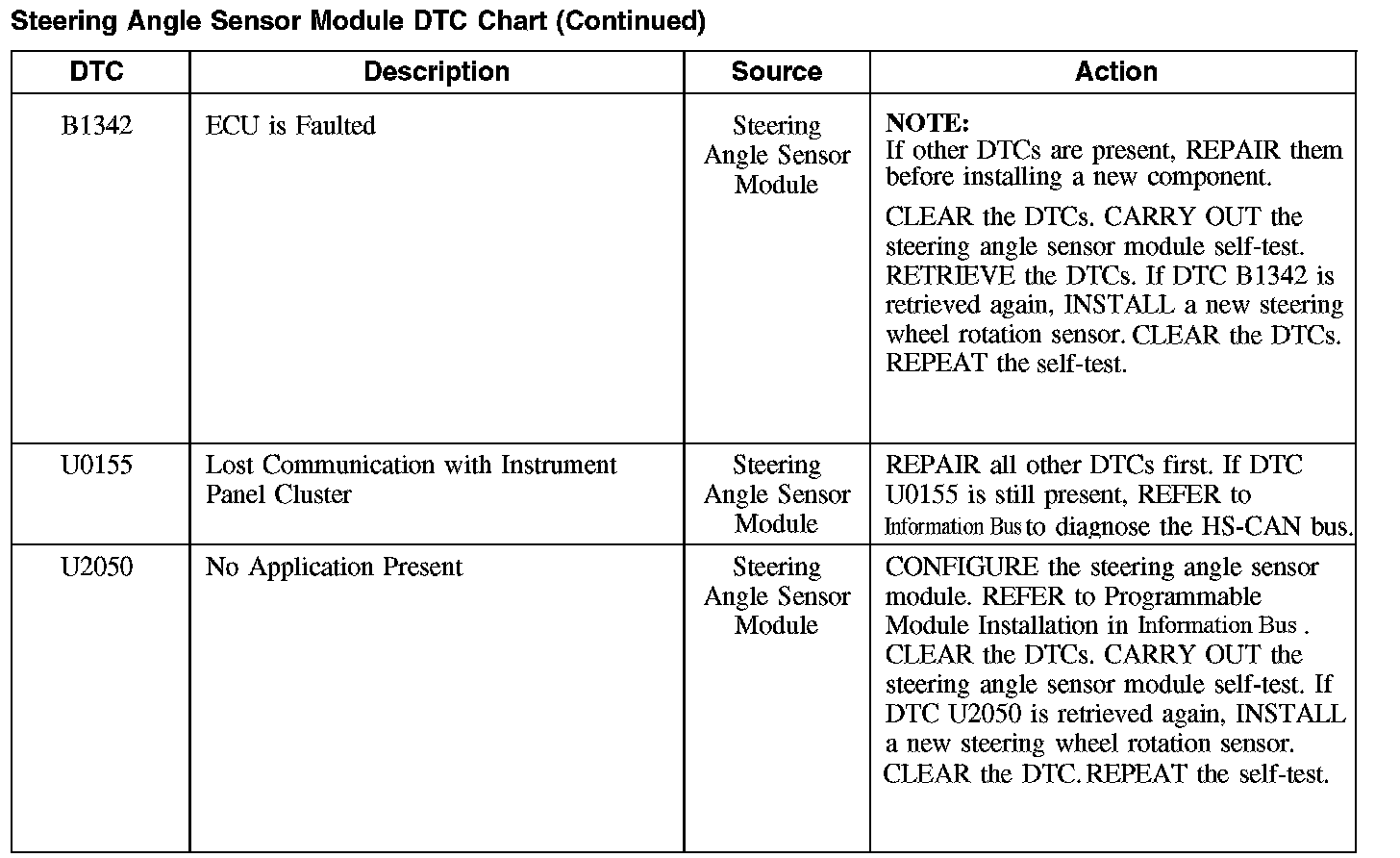

Steering Angle Sensor Module DTC Chart
Steering Angle Sensor
Module DTC Chart
B1317-B1318:
B1342 / U0155-U2050:
