ABS Module DTC Chart
ABS Module DTC Chart

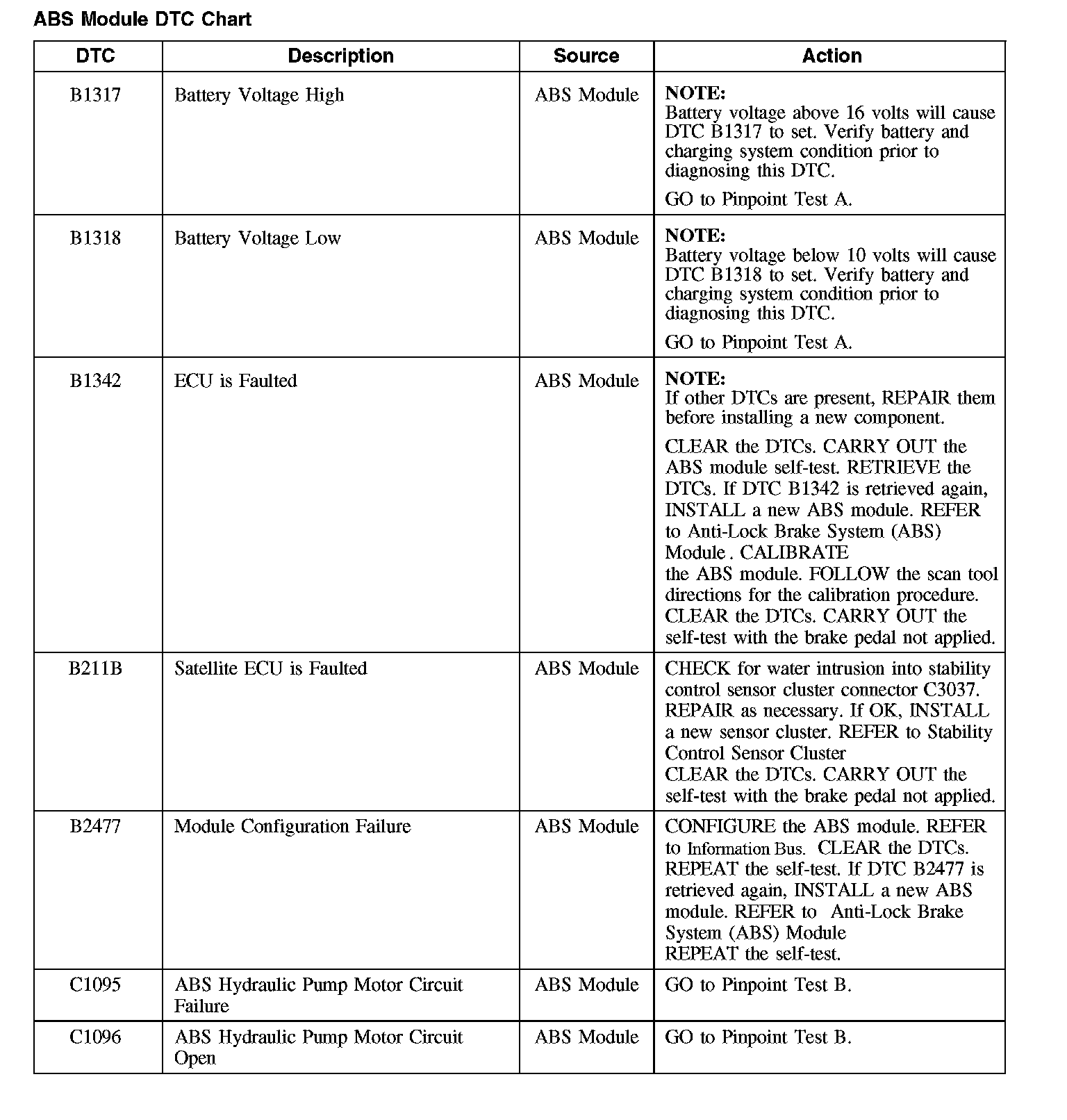

B1317-B2477 / C1095-C1096:

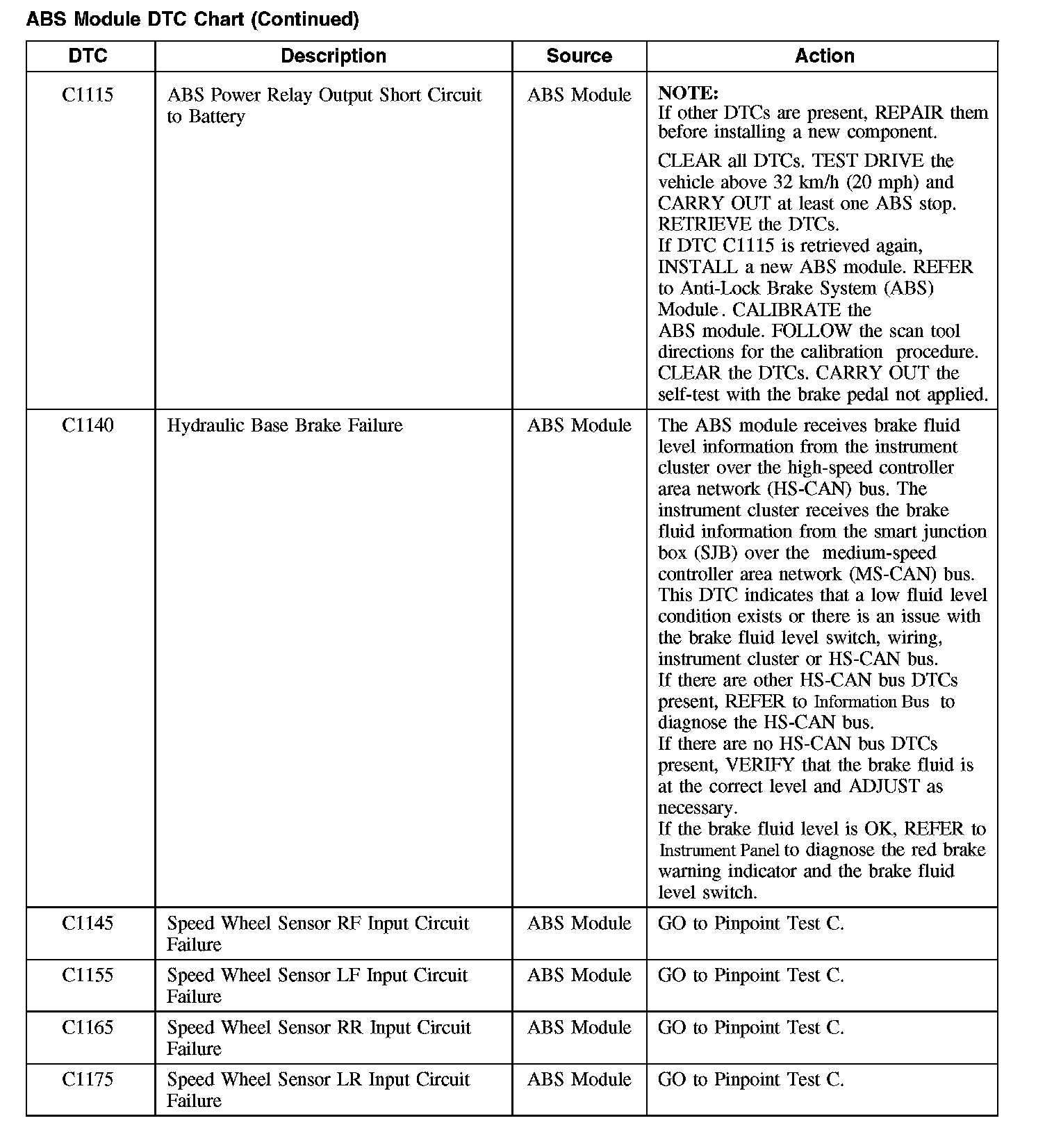

C1115-C1175:

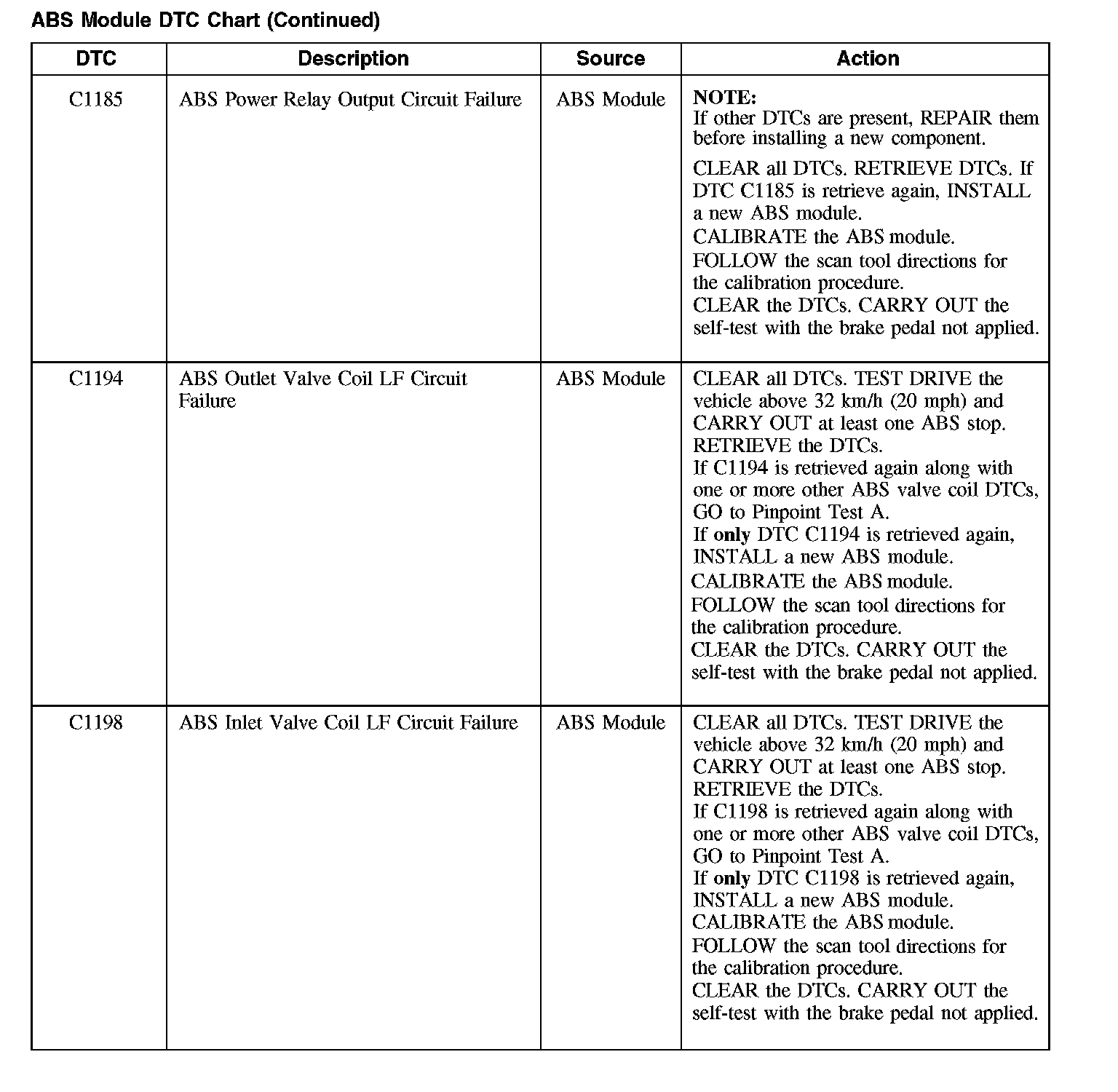

C1185-C1198:

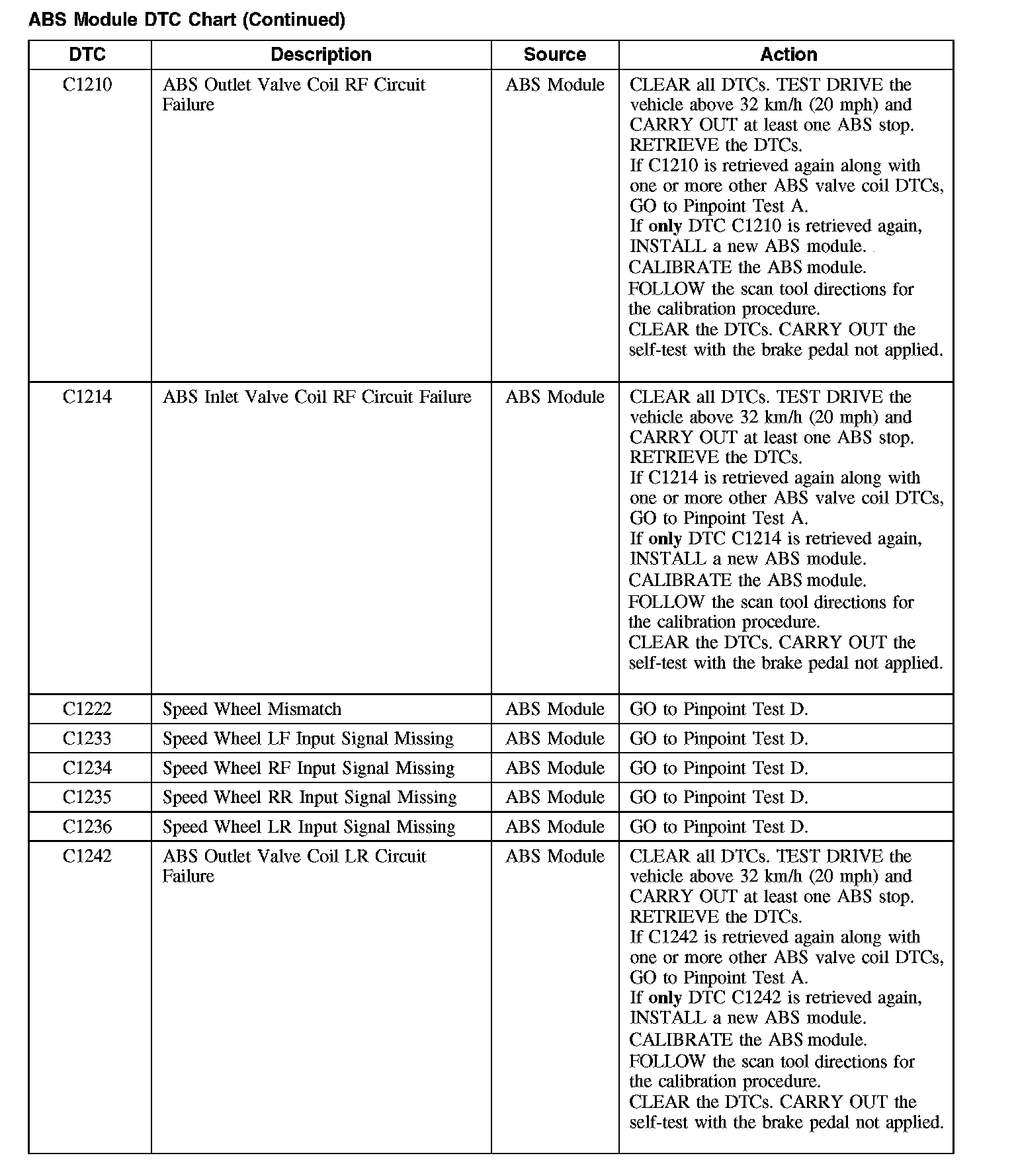

C1210-C1242:

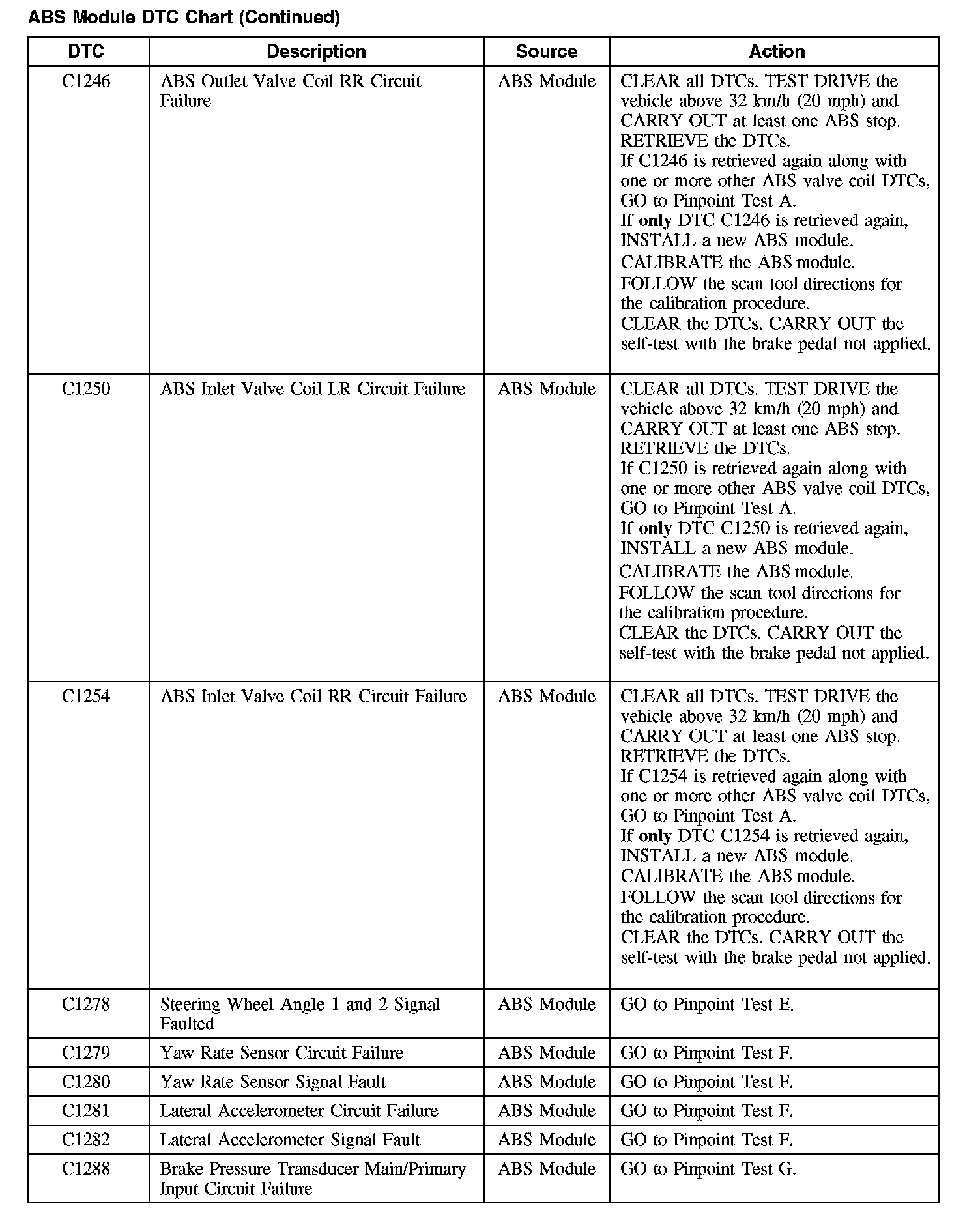

C1246-C1288:

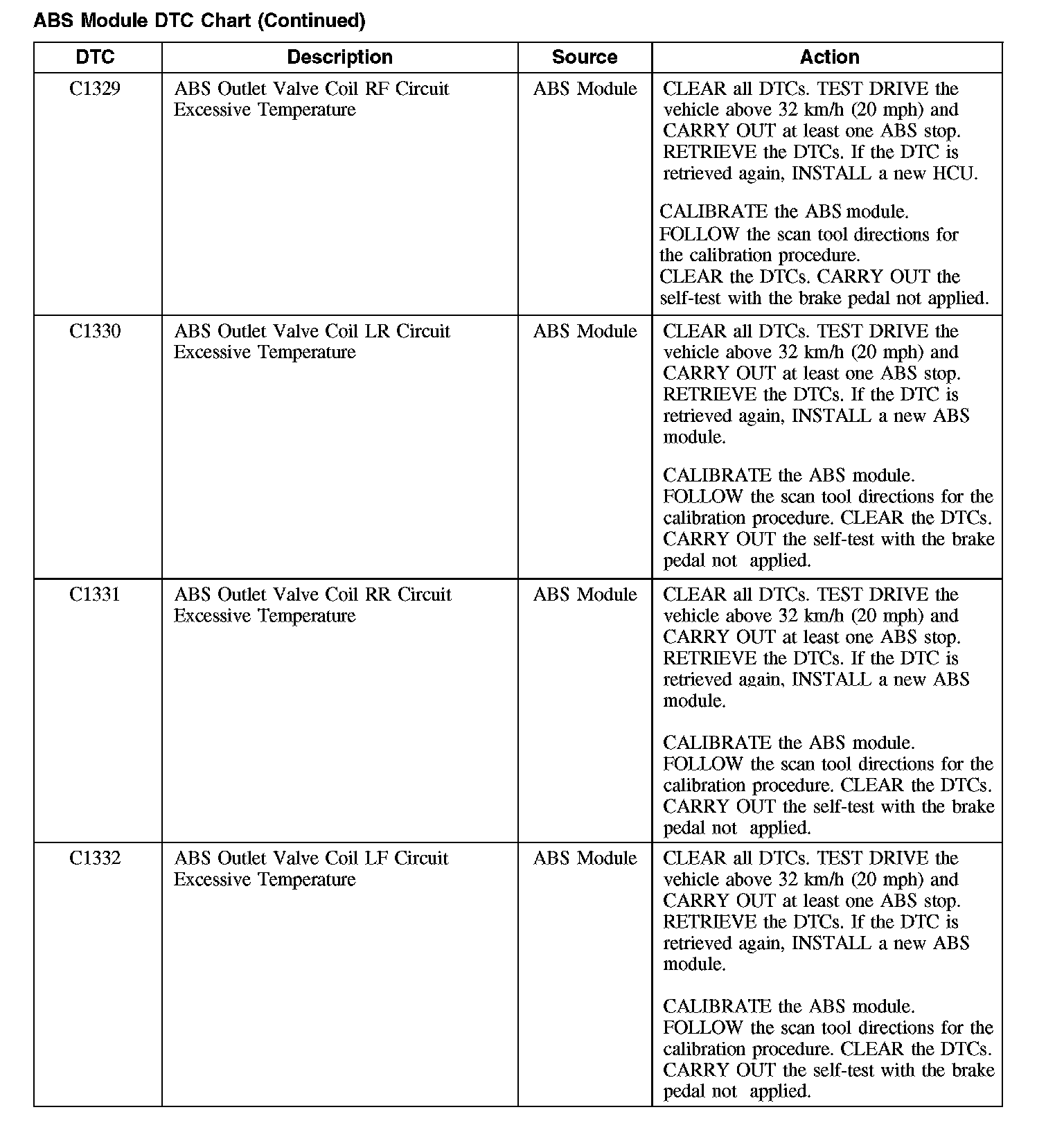

C1329-C1332:

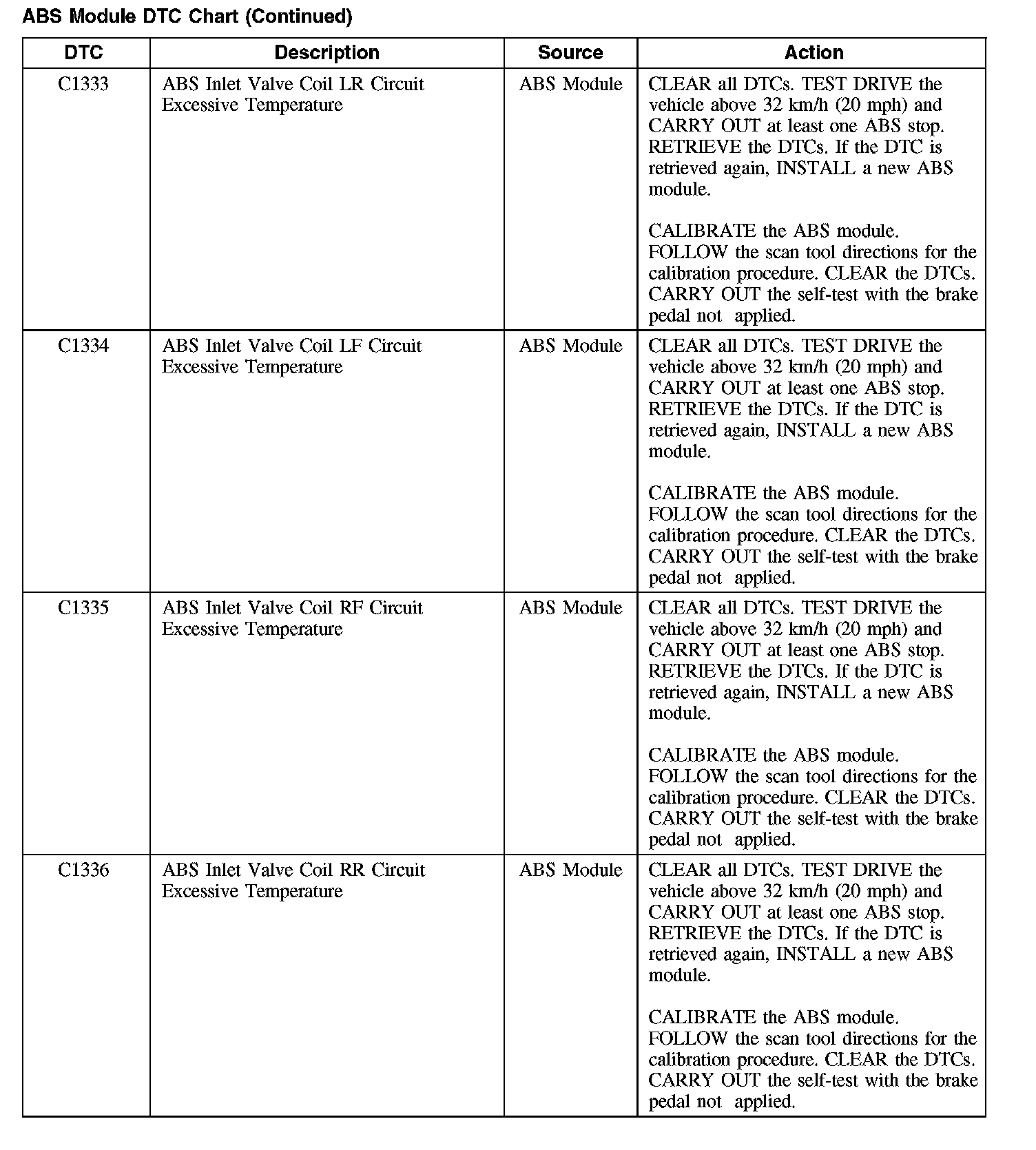

C1333-C1336:

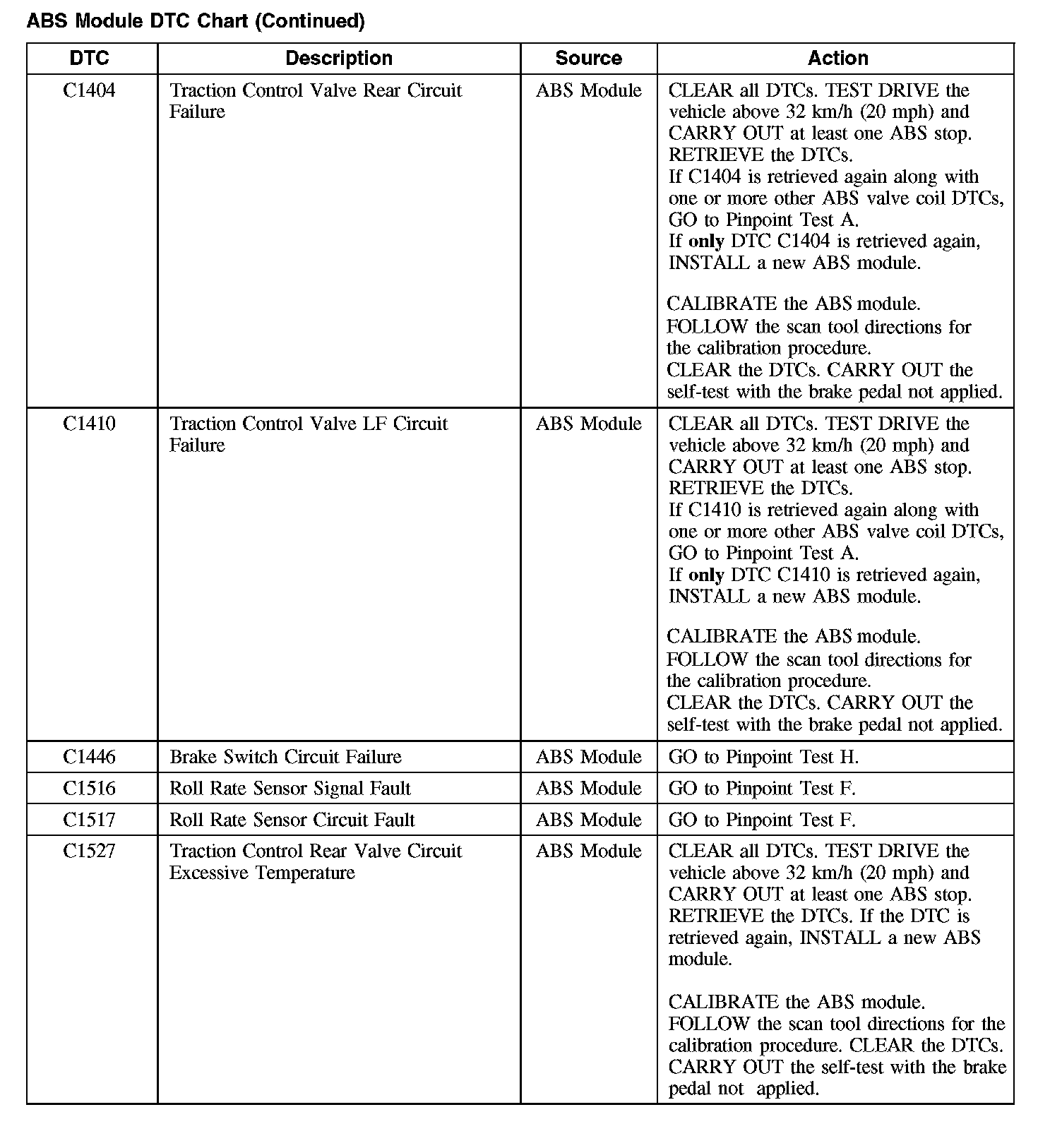

C1404-C1527:

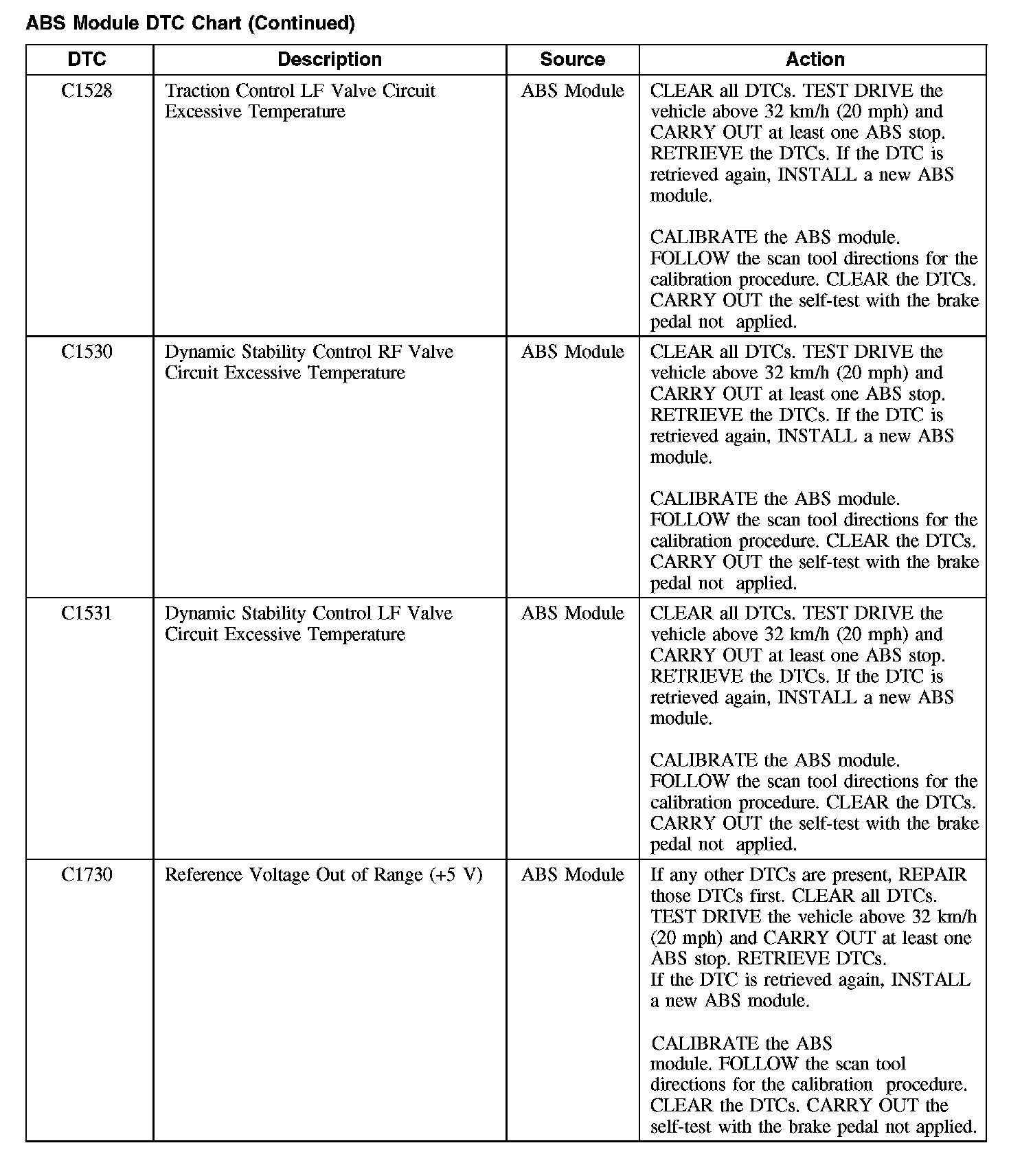

C1528-C1730:

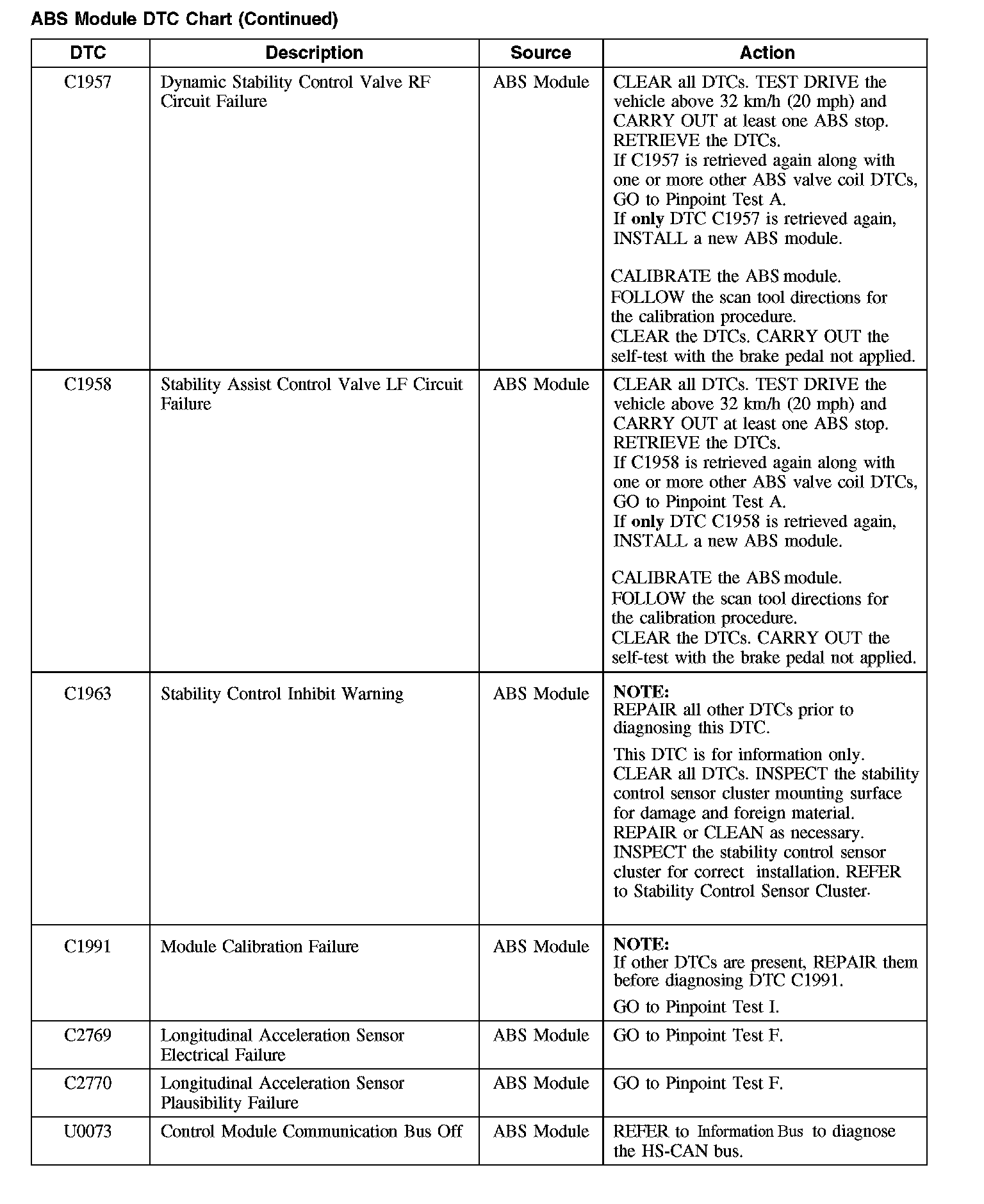

C1957-C2770 / U0073:

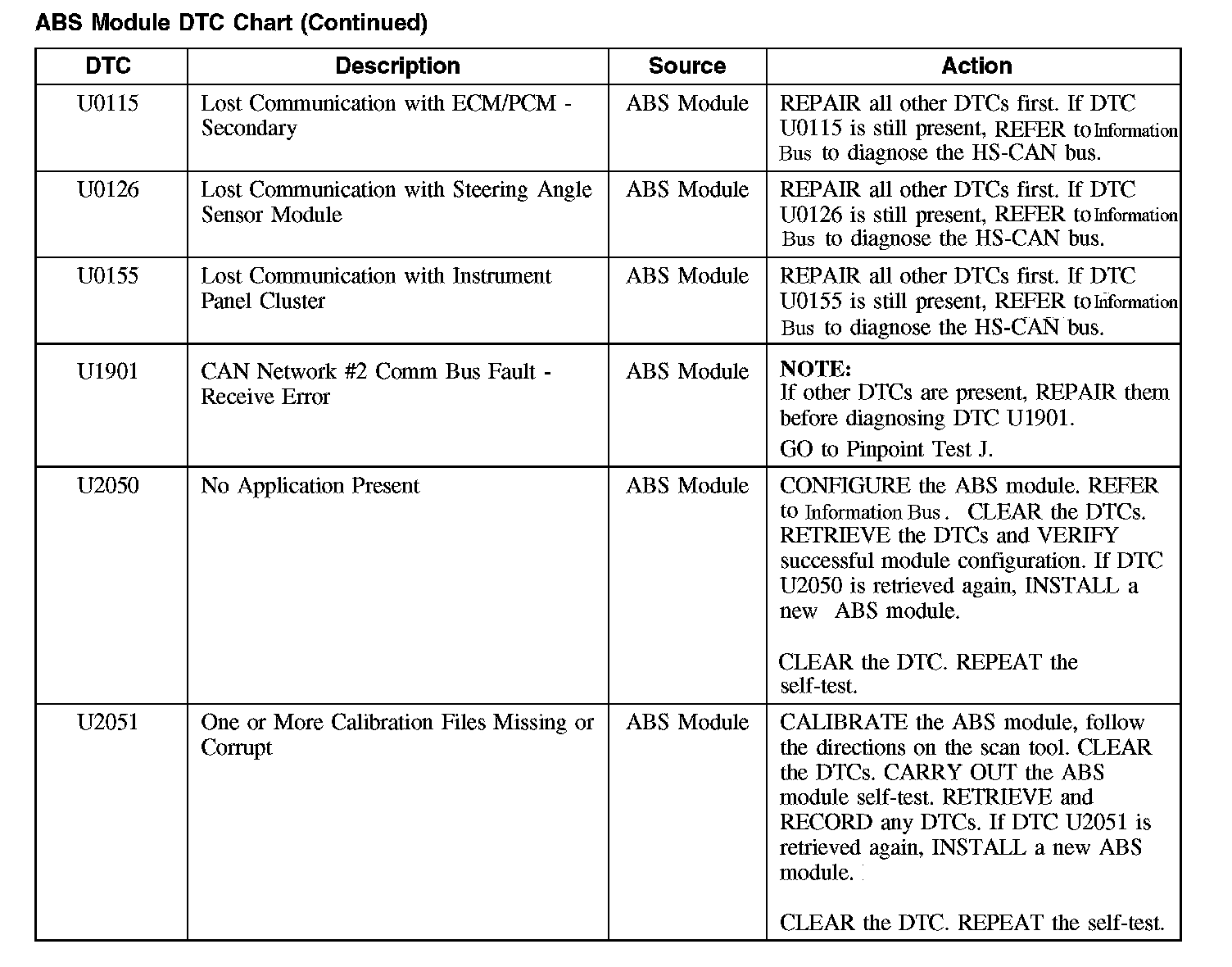

U0115-U2051:
