Wiper Switch: Service and Repair

Steering Column Multifunction Switch

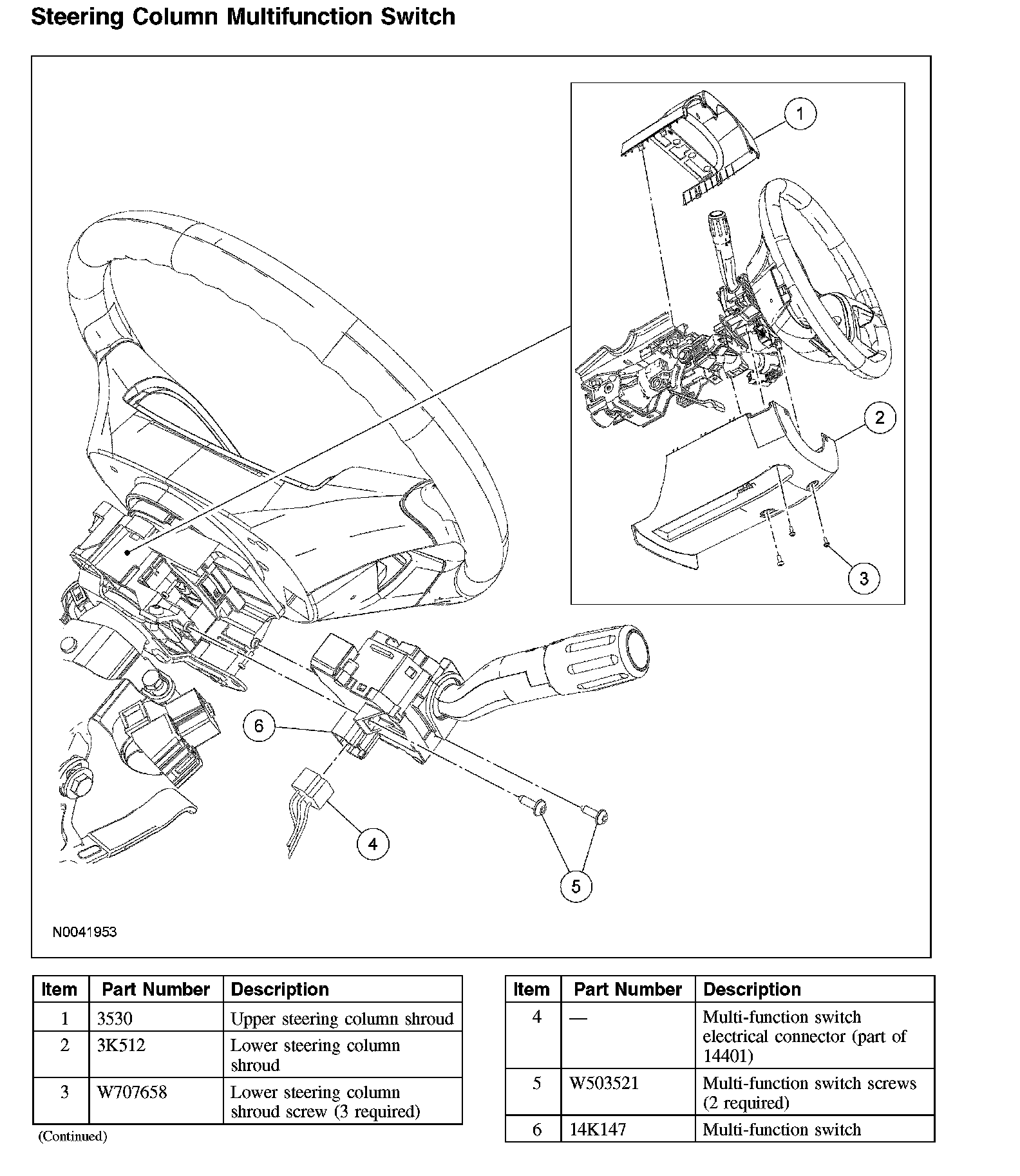

Steering Column Multifunction Switch:





Removal and Installation

1. NOTE: Release the upper steering column shroud by pressing inward on the sides of the shroud and lifting upwards.

Remove the upper steering column shroud.
2. Release the tilt lever, remove the 3 lower steering column shroud screws and the shroud.
3. Disconnect the multi-function switch electrical connector.
4. Remove the 2 multi-function switch screws and remove the switch.
5. To install, reverse the removal procedure.
