Windshield Washer Pump: Service and Repair

WASHER PUMP

Exploded View

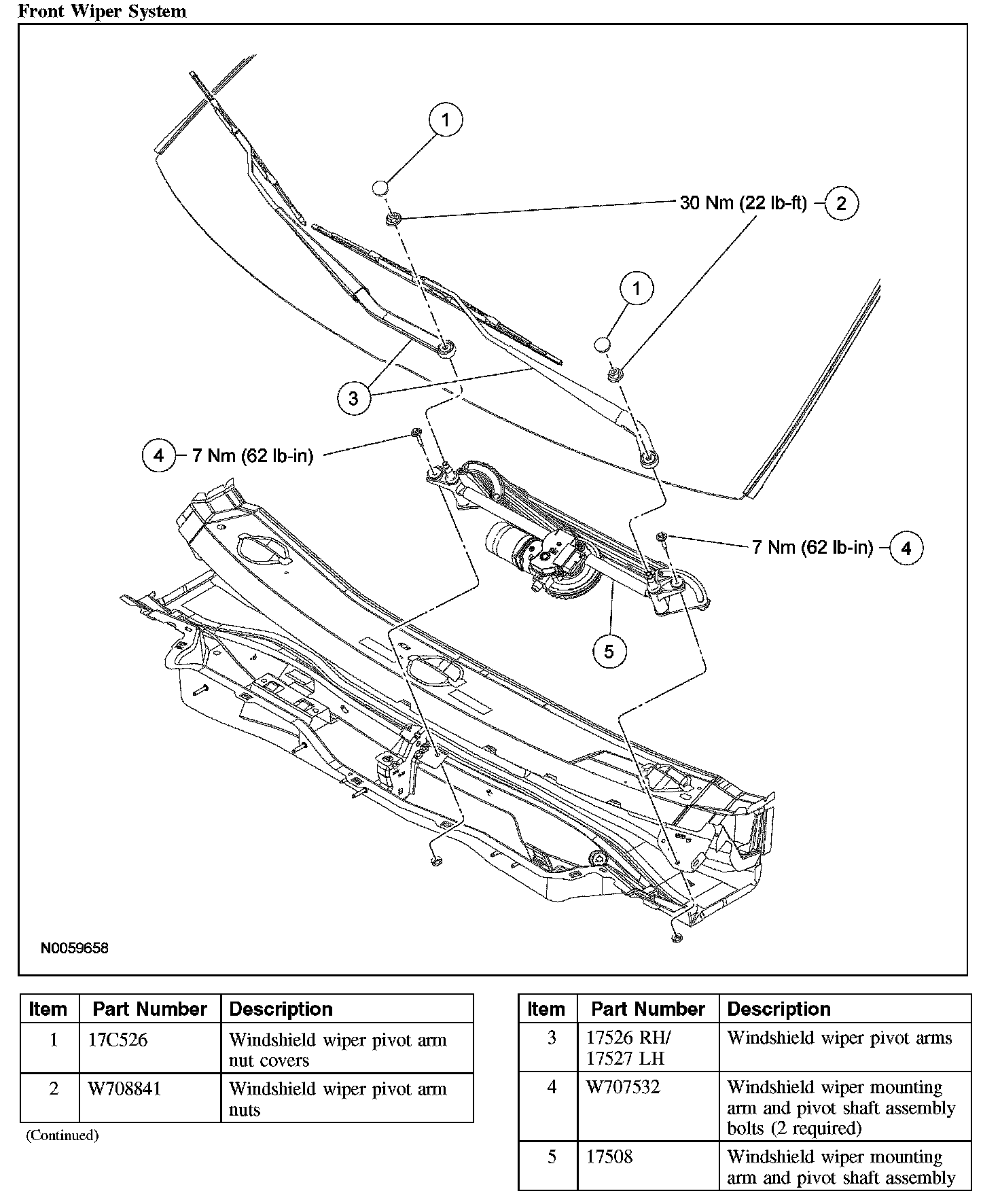

Front Wiper System:

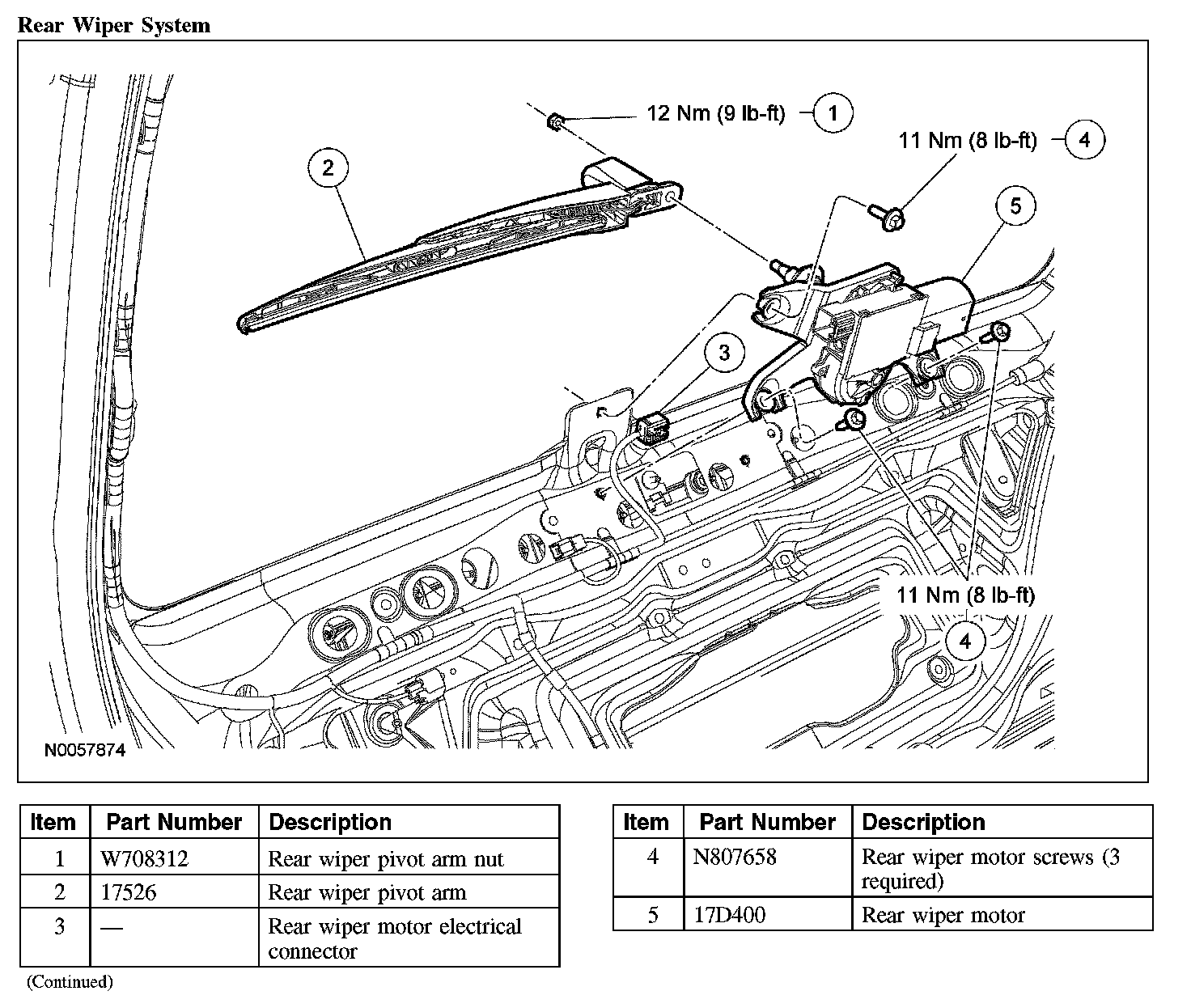

Rear Wiper System:

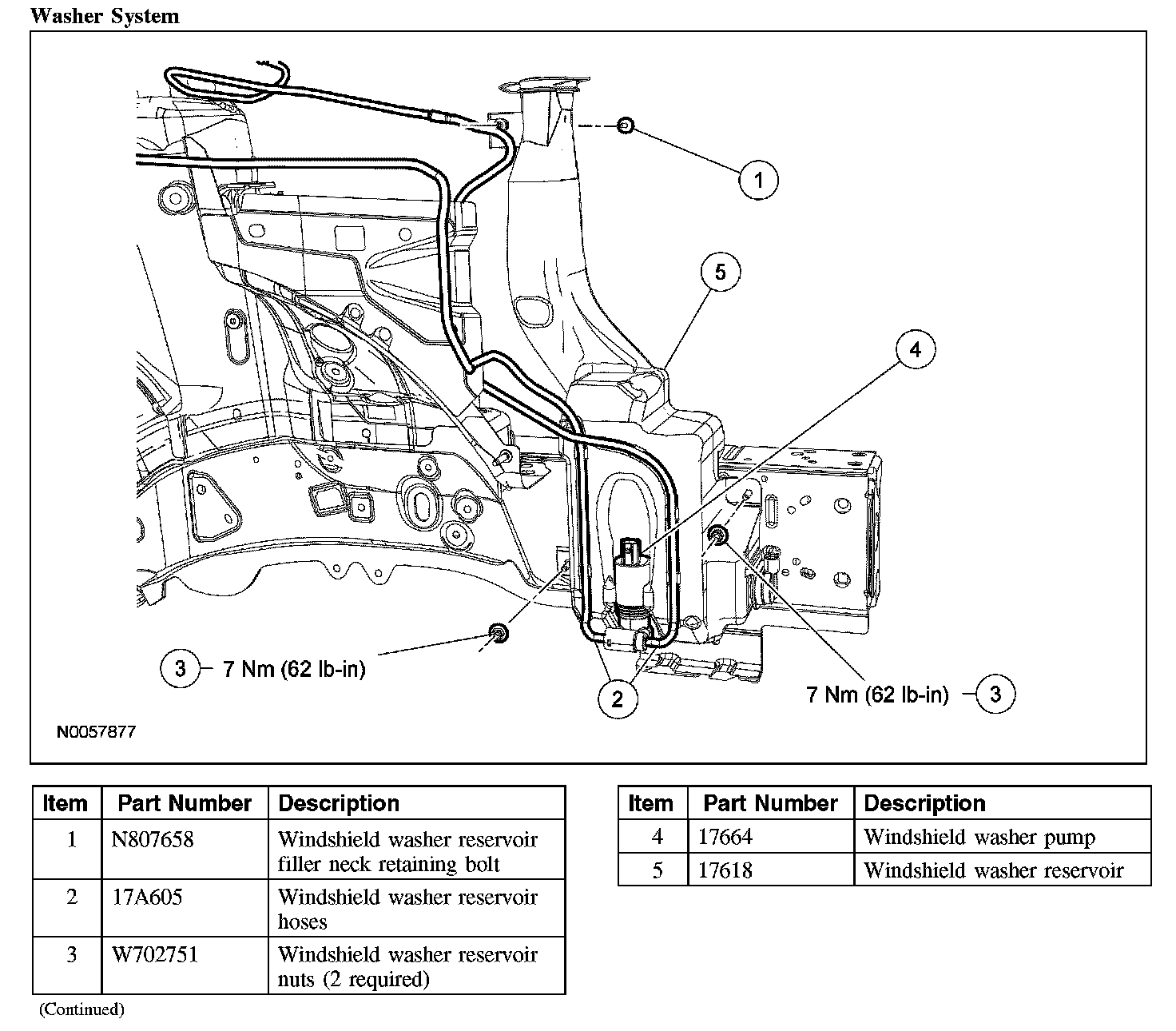

Washer System:

Removal and Installation
1. Remove the RH front fender splash shield.

2. WARNING: Carefully read cautionary information on product label. For EMERGENCY MEDICAL INFORMATION seek medical advice. Failure to follow these instructions may result in serious personal injury.

NOTE: To prevent spilling windshield washer fluid, drain the washer reservoir before washer pump removal.

Remove the washer pump.
1 Disconnect the electrical connector.
2 Disconnect the hoses.
3 Remove the washer pump.







3. CAUTION: Do not operate the washer pump prior to filling the washer reservoir. Failure to follow these instructions may result in premature pump failure.

To install, reverse the removal procedure.
- Fill the washer reservoir with windshield washer fluid.
