Differential Bearing Preload Shim Selection Chart
Differential Bearing Preload Shim Selection Chart

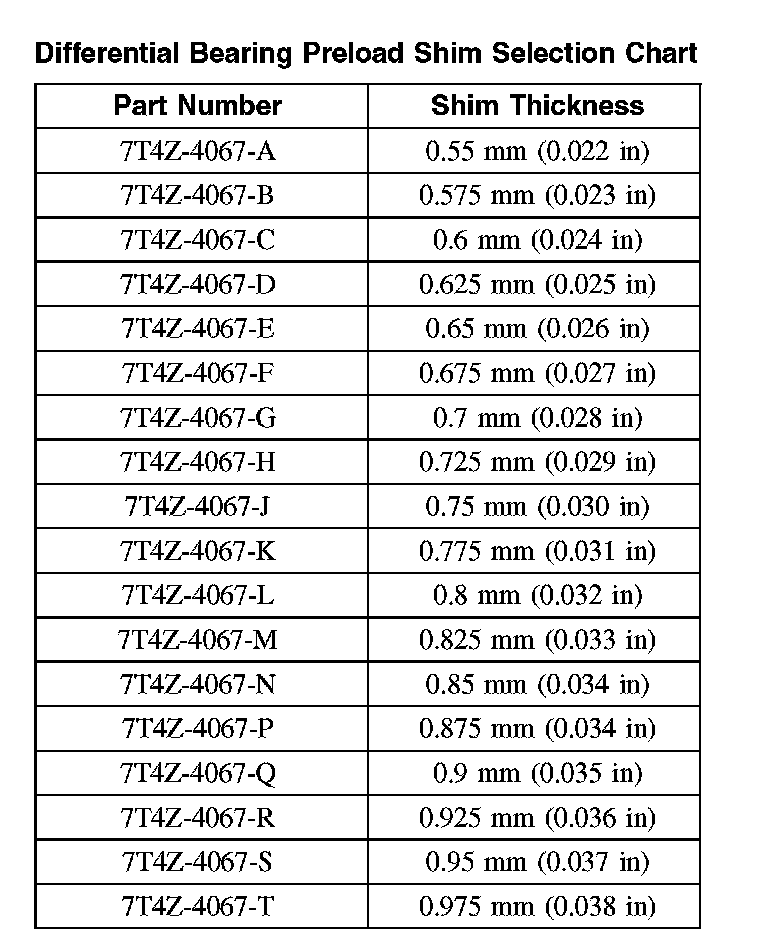

Differential Bearing Preload Shim Selection Chart (Part 1):
Differential Bearing Preload Shim Selection Chart (Part 2):
