Tests DG: Knock Sensor (KS)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Tests DG: Knock Sensor (KS)
PINPOINT TEST DG: KNOCK SENSOR (KS)

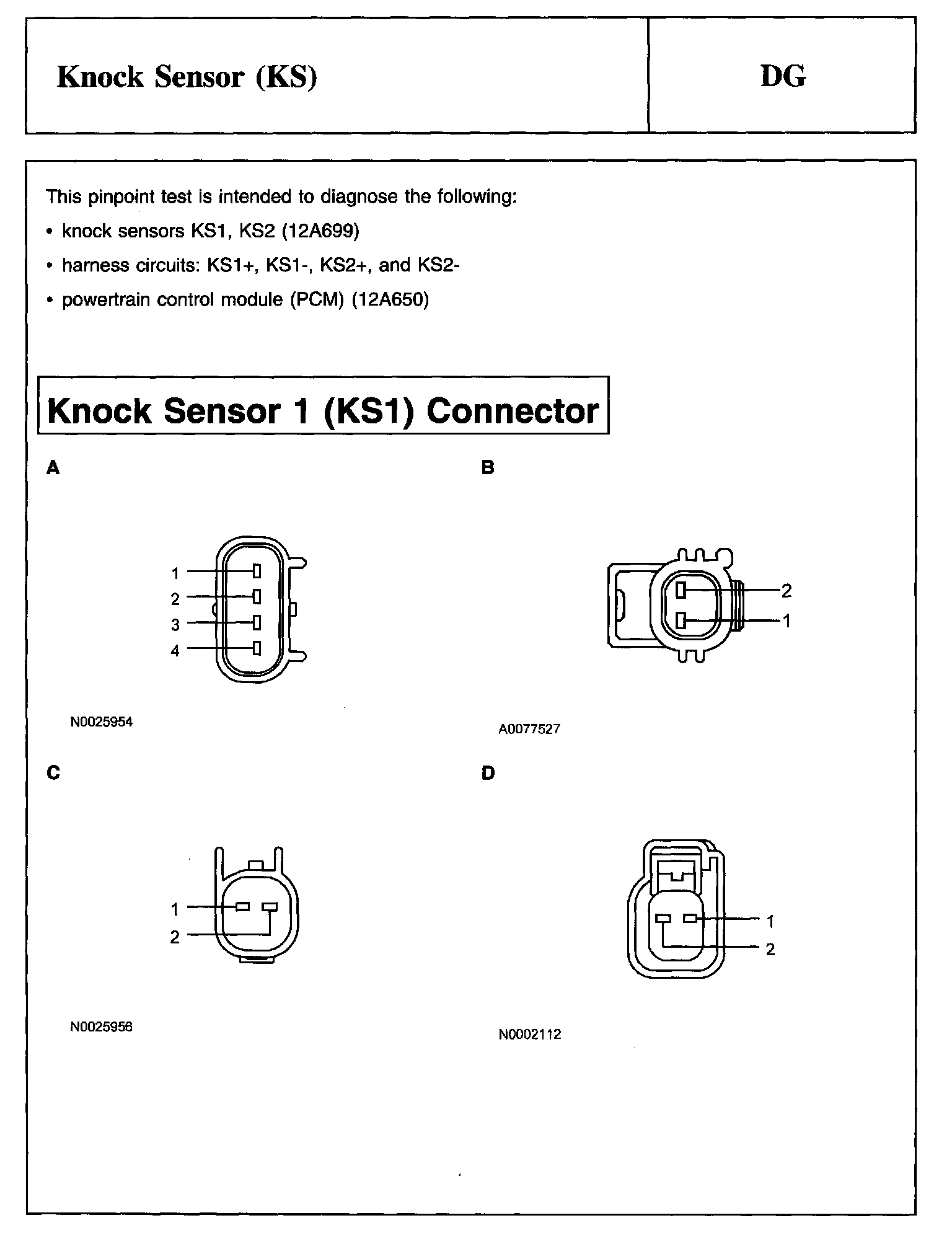

Description And Knock Sensor 1 (KS1) Connector:

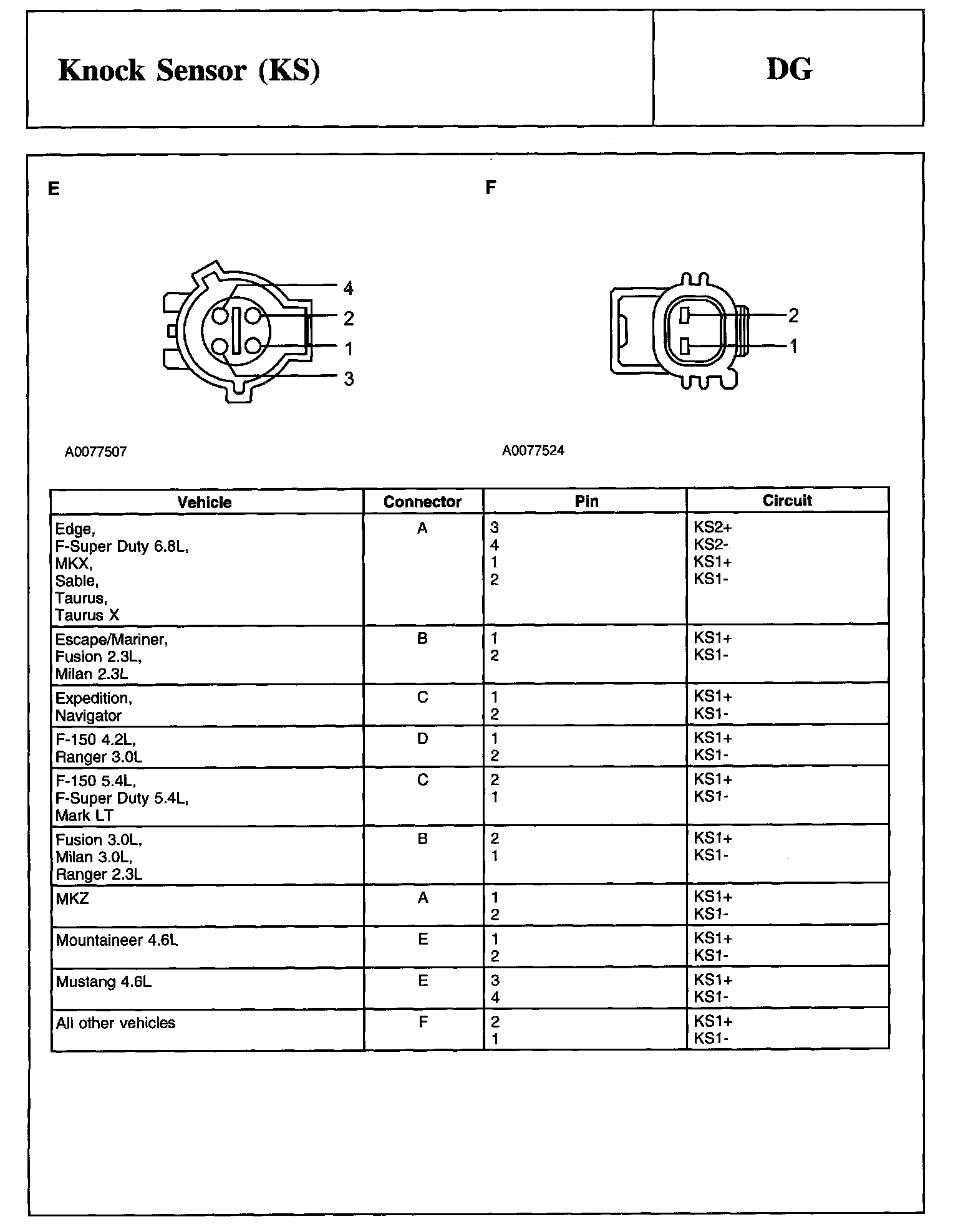

Knock Sensor 1 (KS1) Connector Continued:

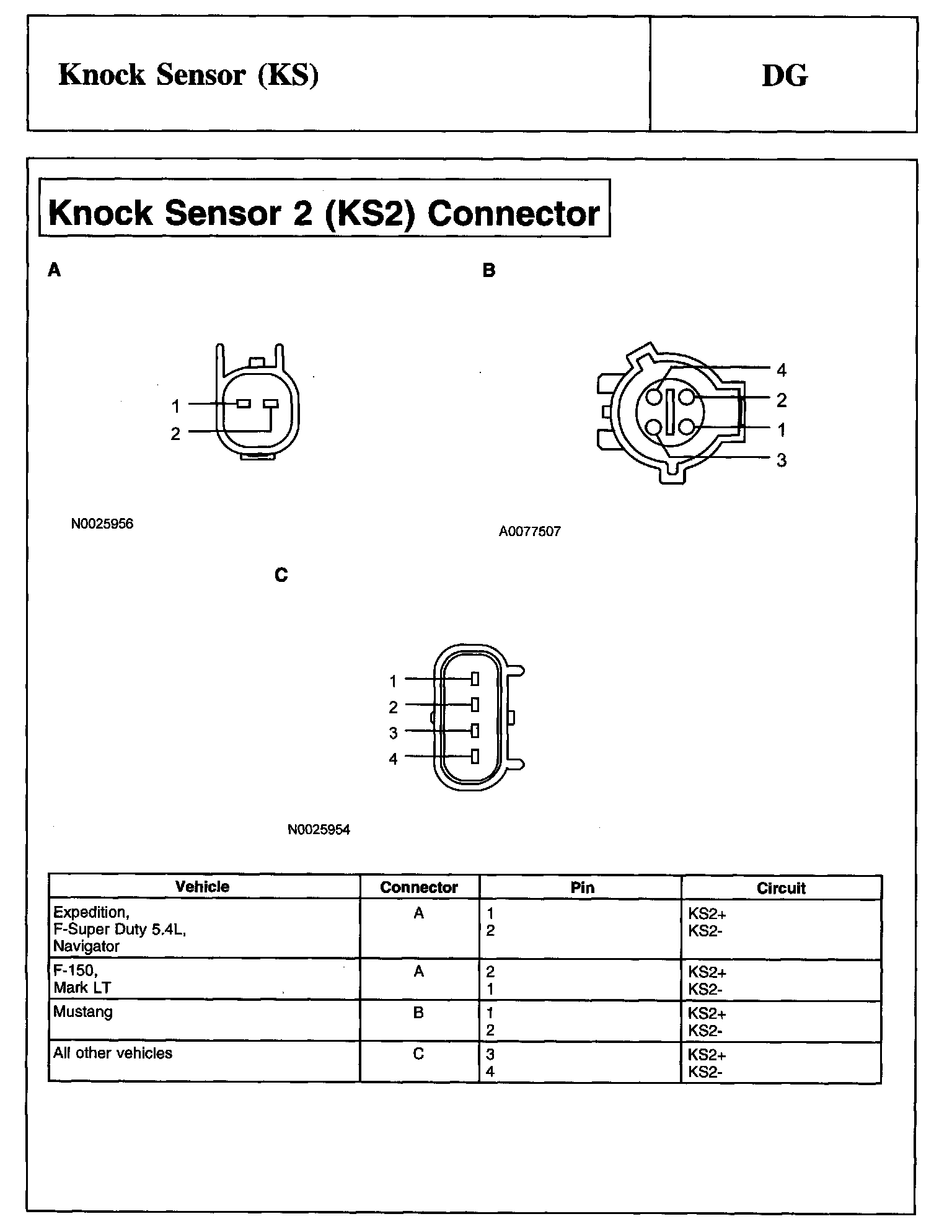

Knock Sensor 2 (KS2) Connector:

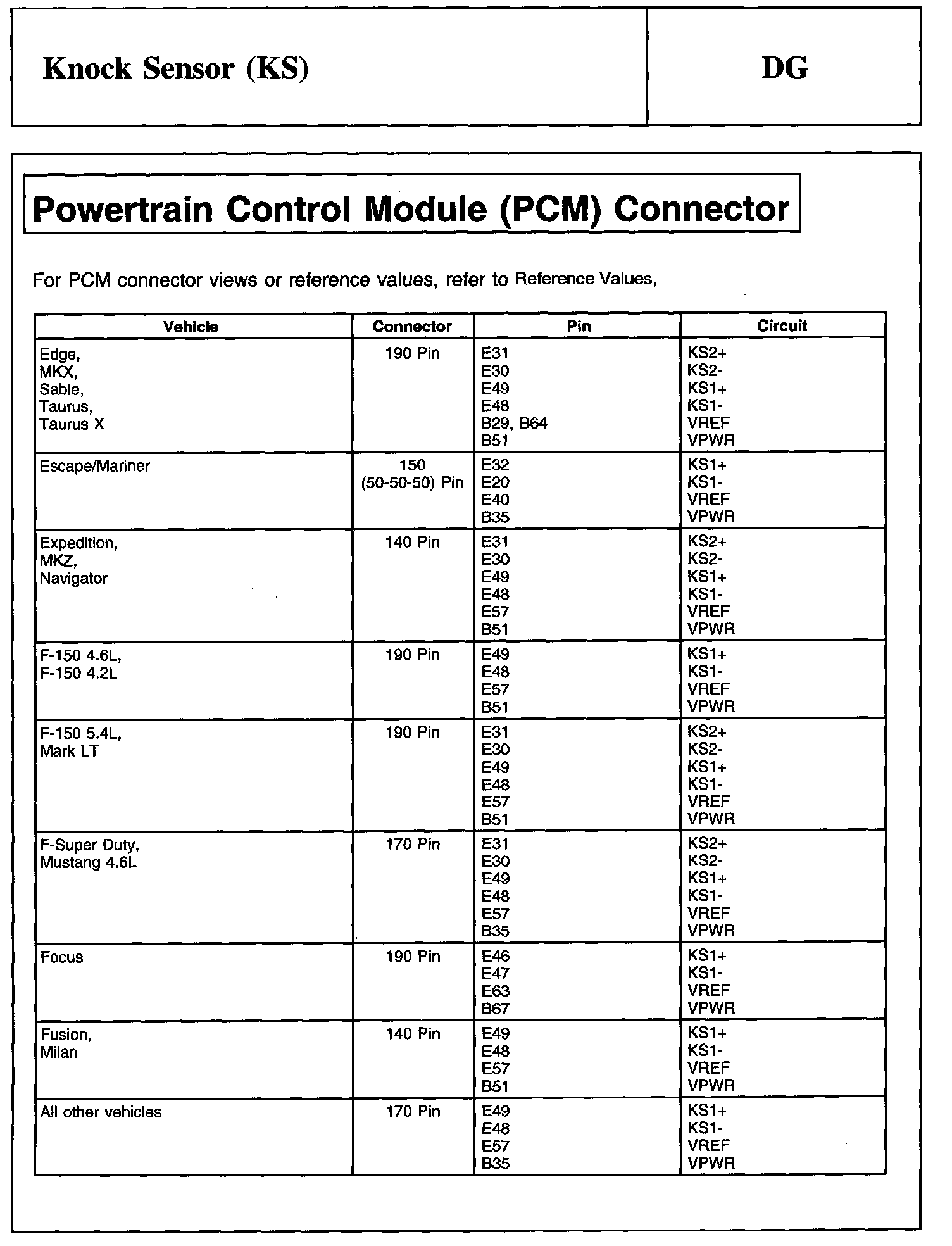

Powertrain Control Module (PCM) Connector:

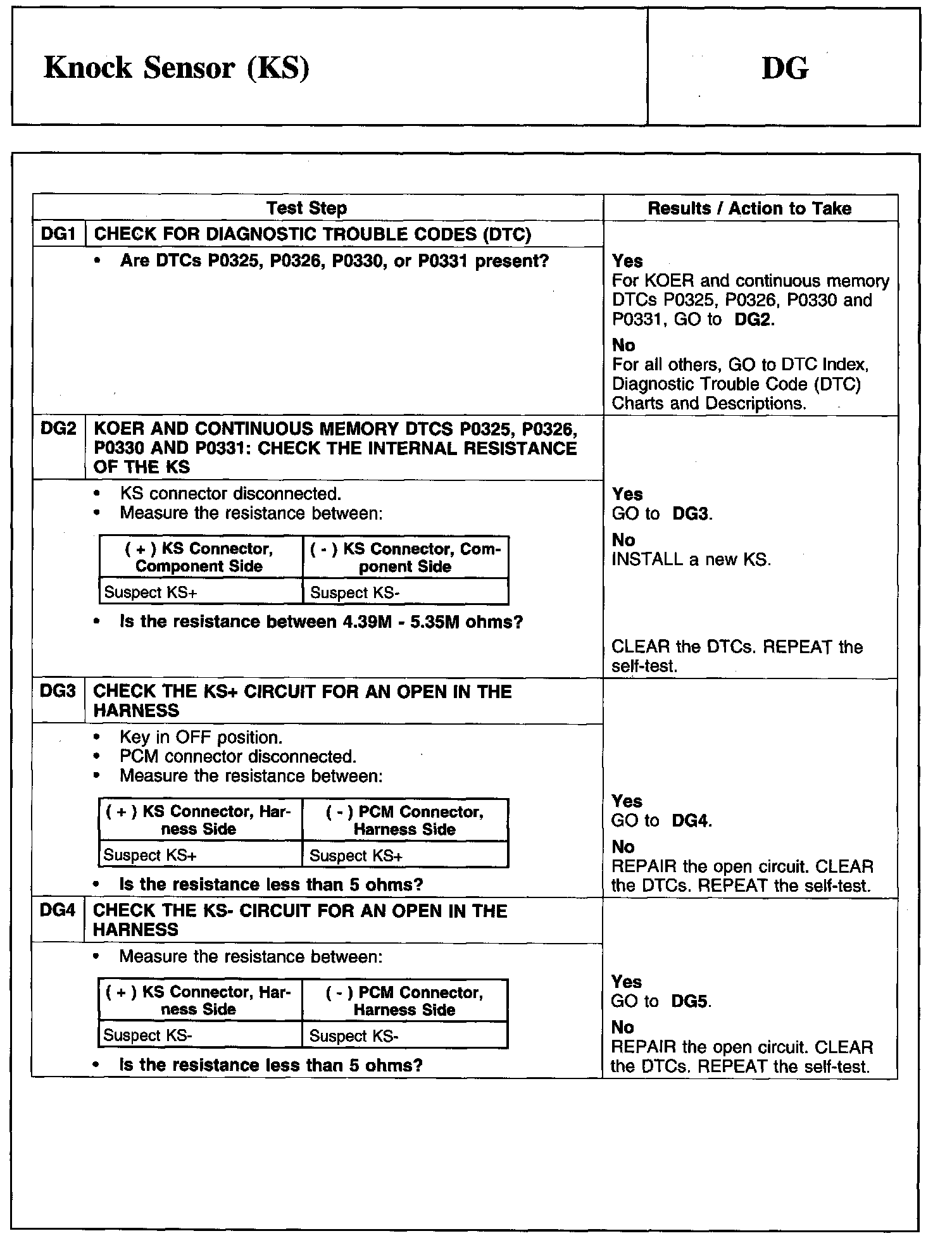

DG1-DG4:

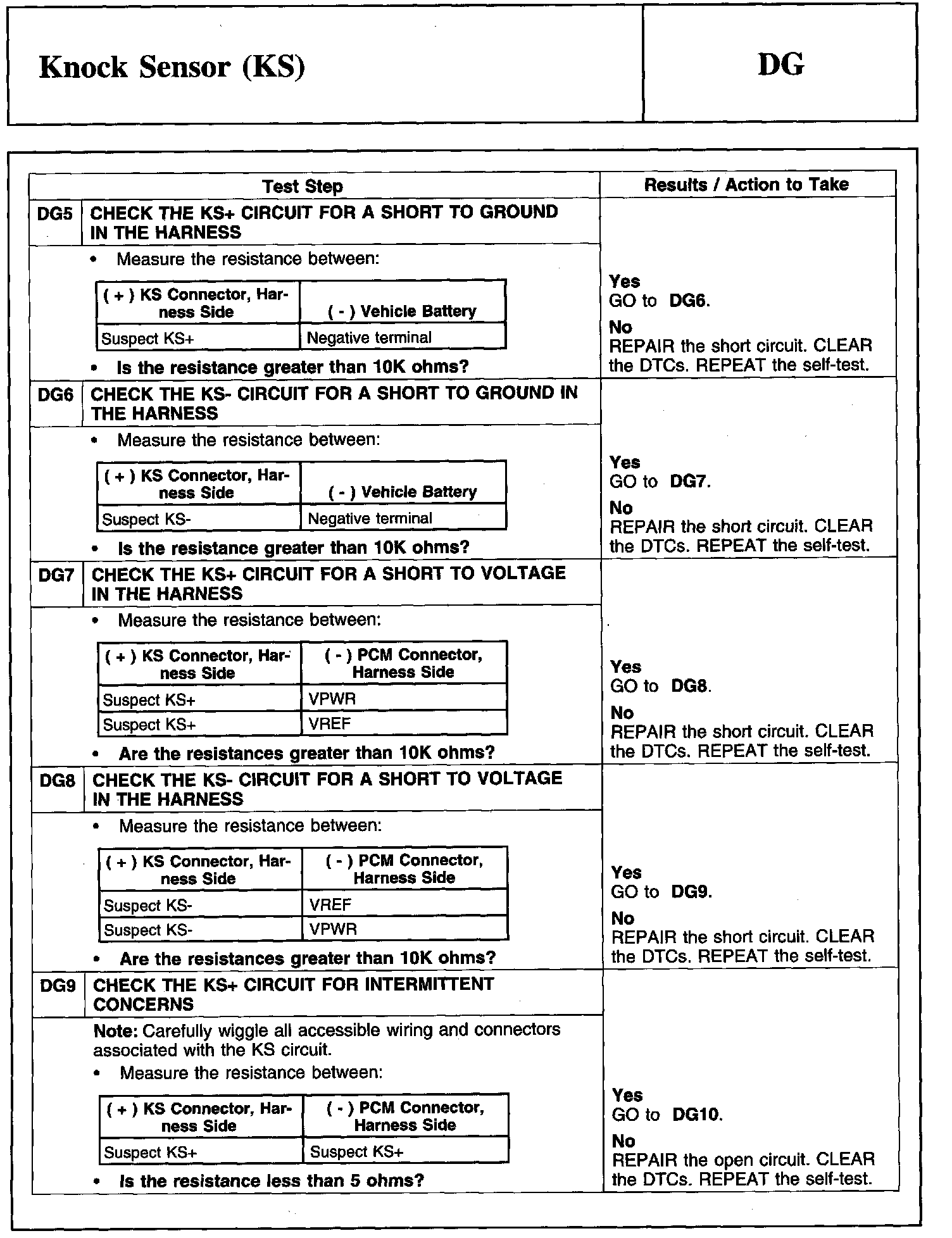

DG5-DG9:

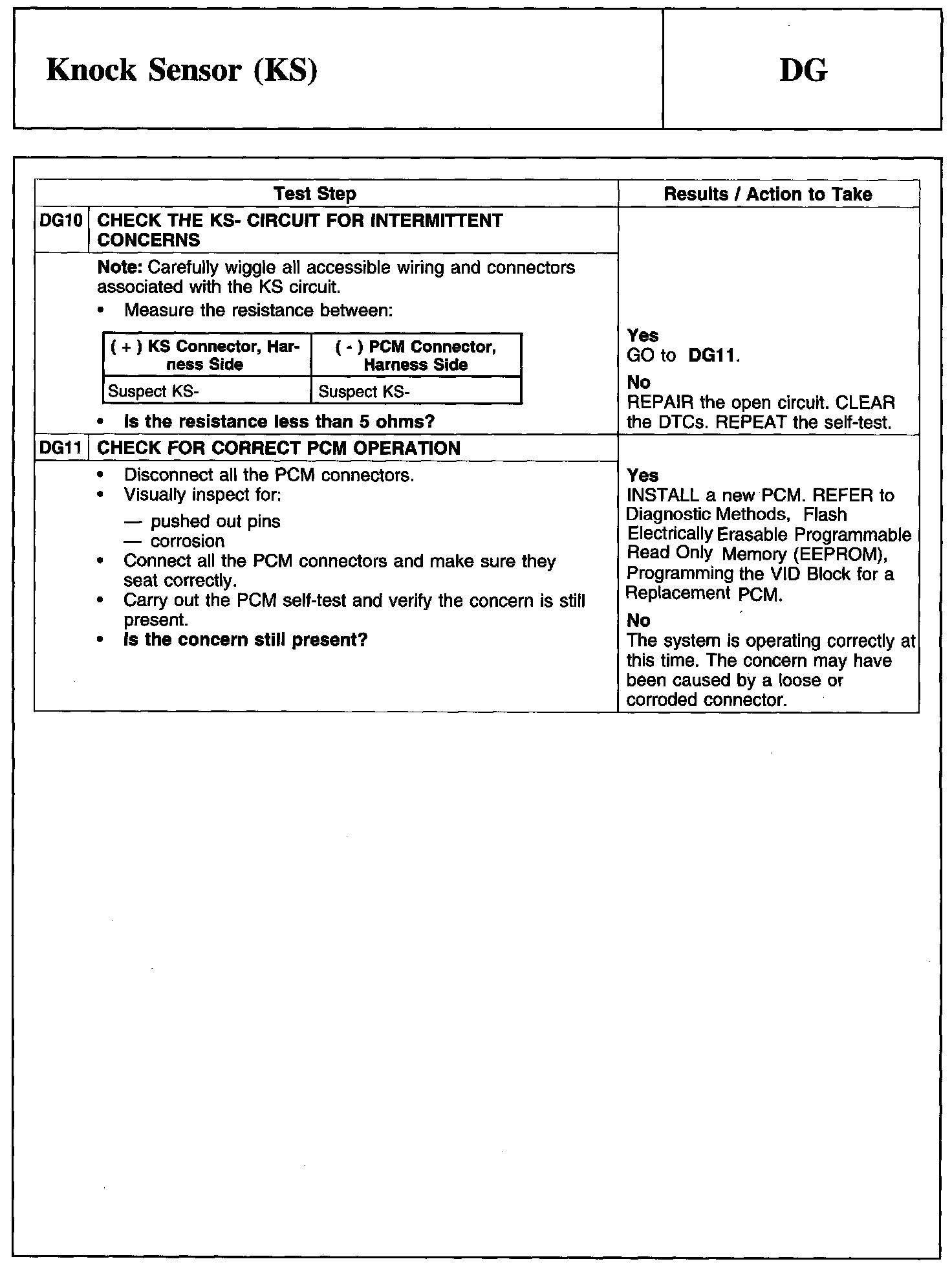

DG10-DG11:
