Battery Junction Box (BJB) / Power Distribution Box
ALLDATA Editor's Note: Ford identifies this one component by 2 different names. Users have reported success comparing these images to determine Application/ID or Location of Fuses and Relays with the Power Distribution Box / Battery Junction Box (BJB).

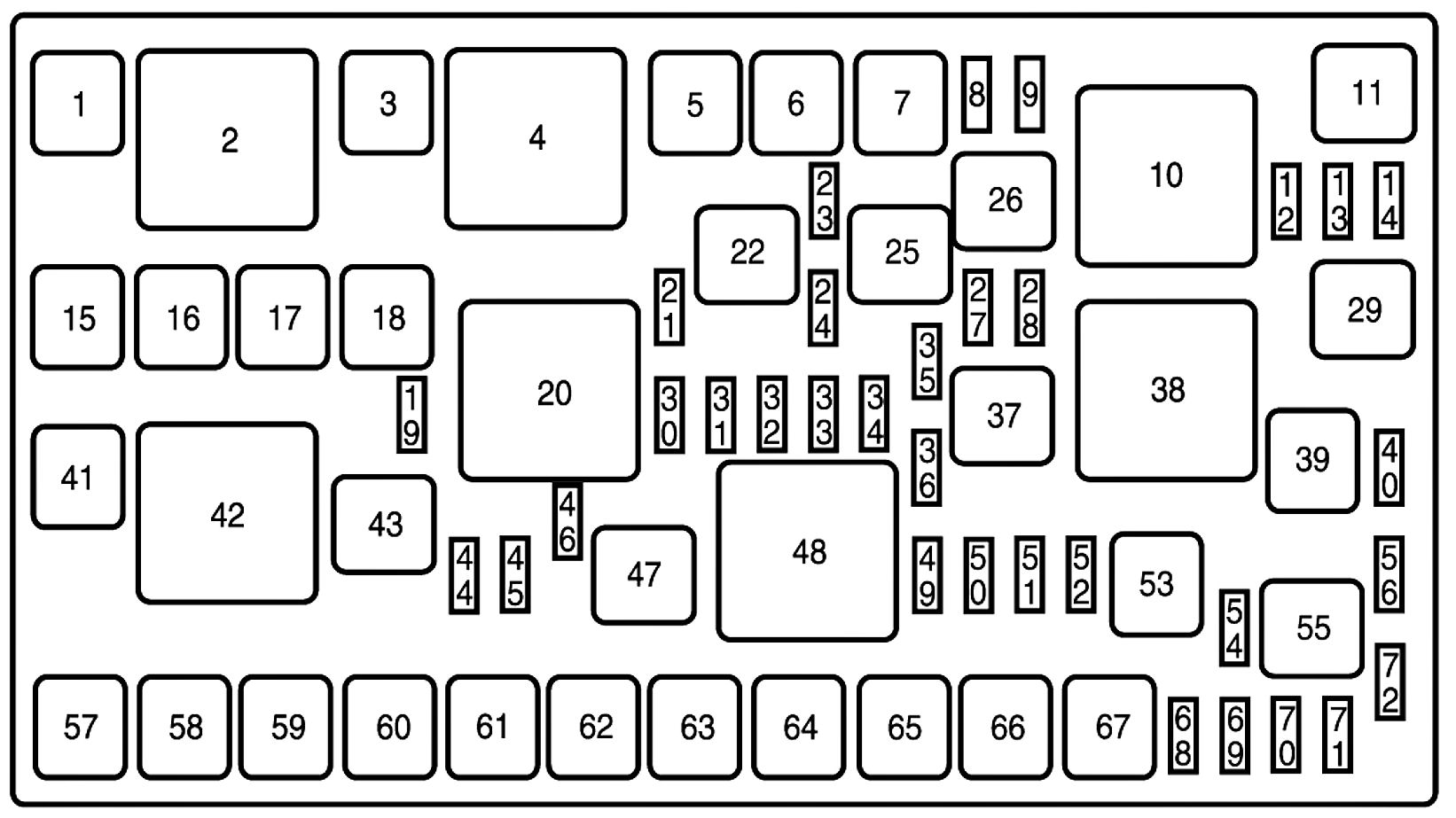

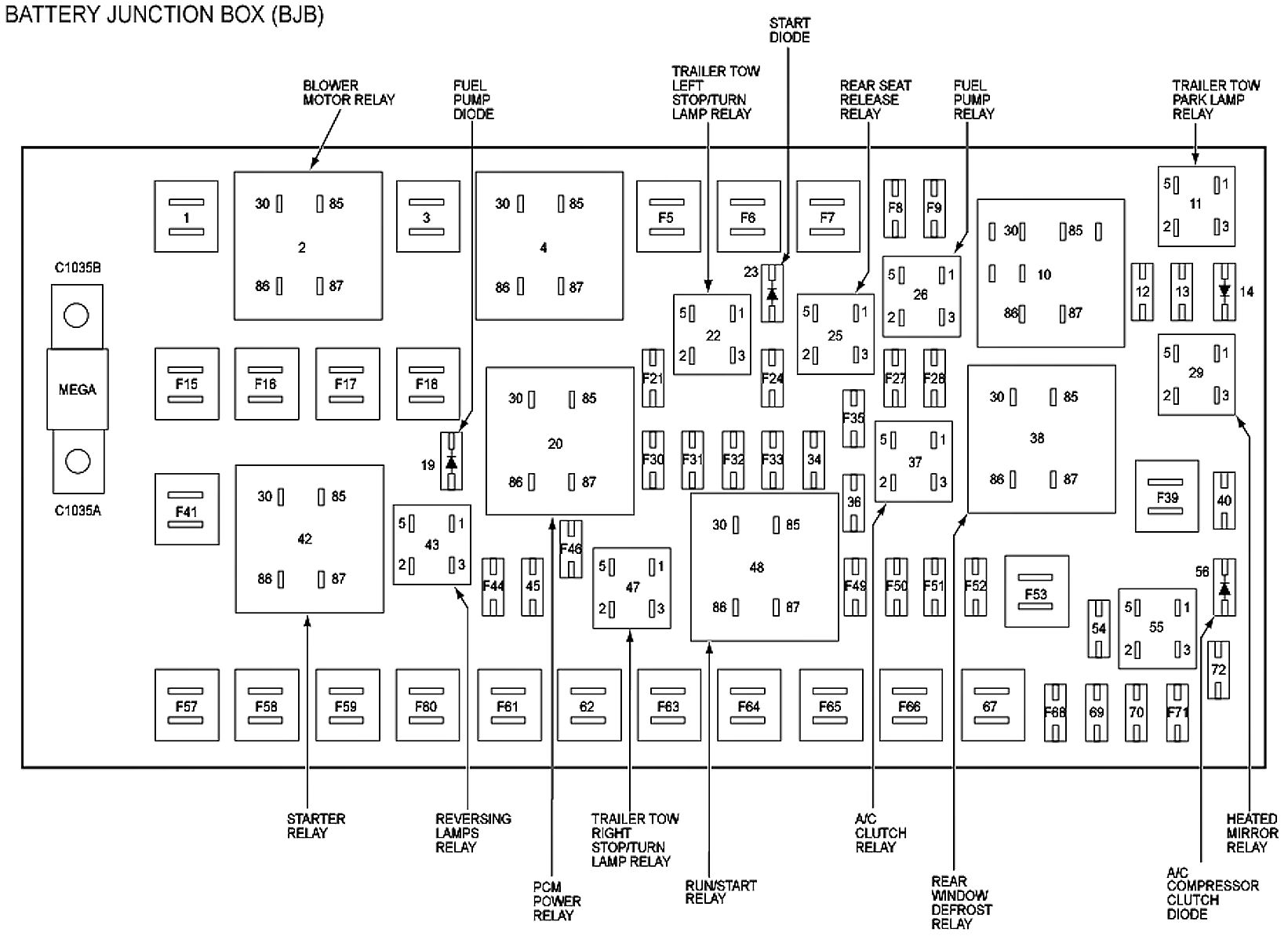

Battery Junction Box (BJB) / Power Distribution Box:

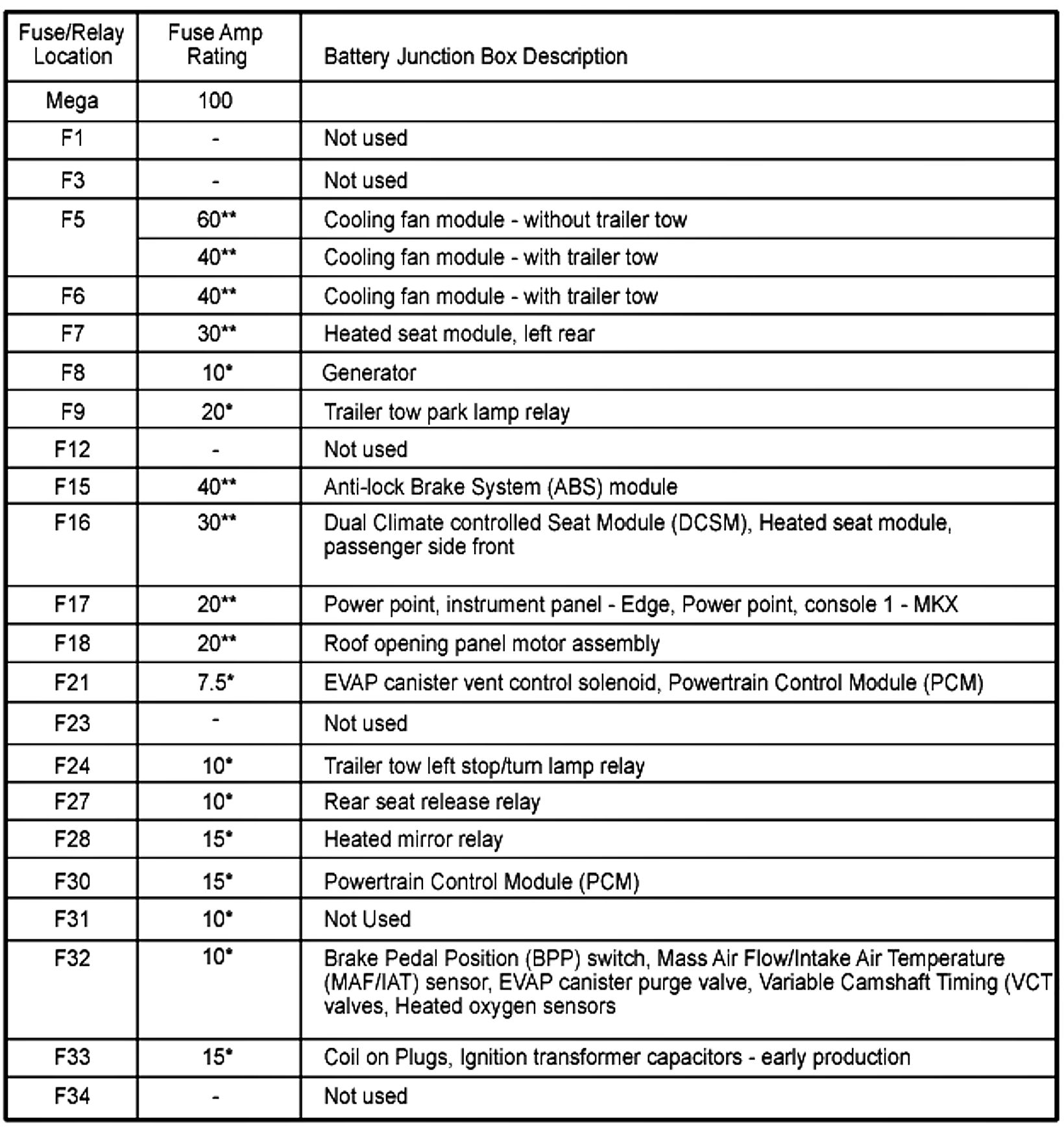

Fuse:

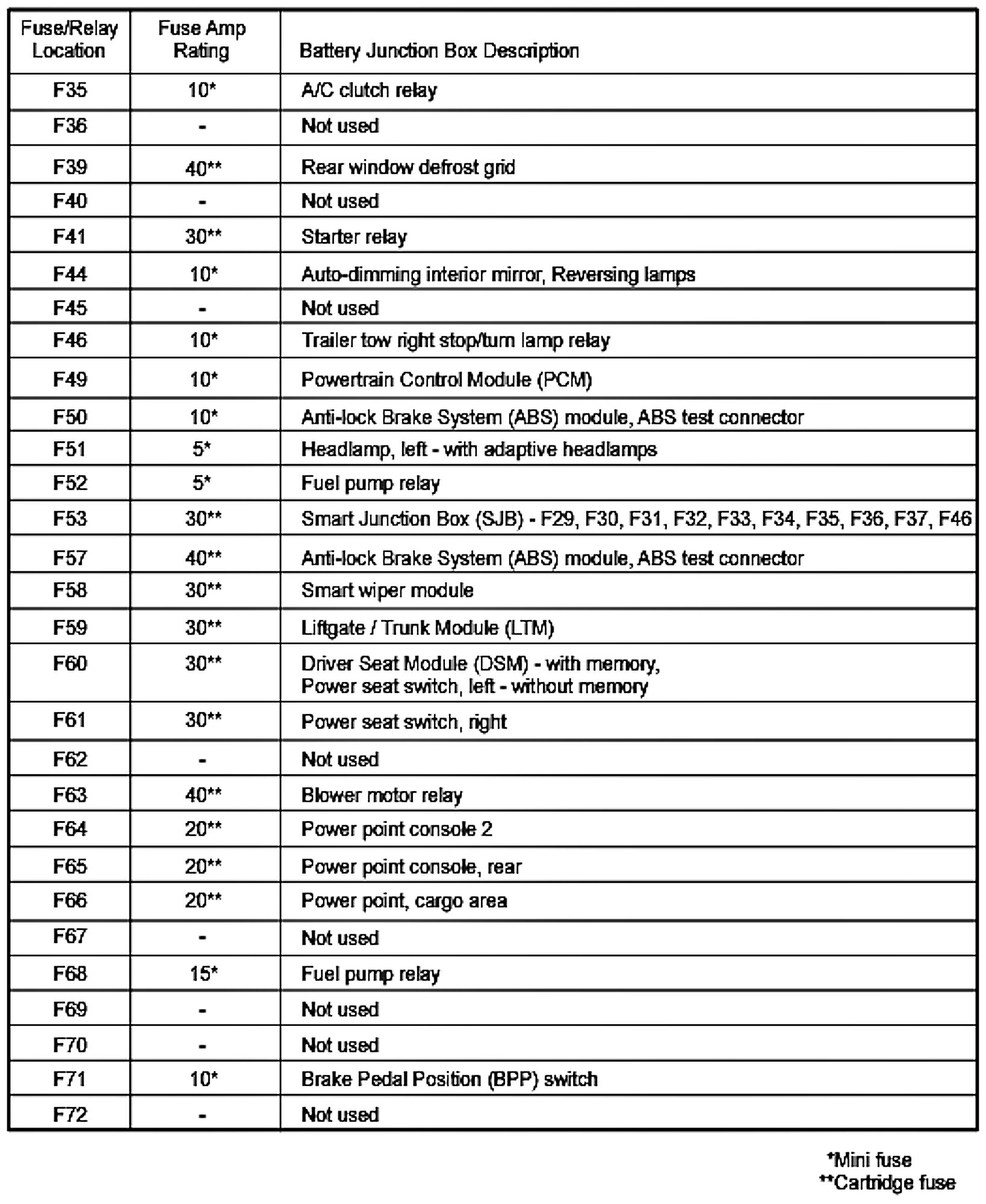

Fuse:
Battery Junction Box (BJB) / Power Distribution Box:
