Audio Control Module (ACM)

AUDIO CONTROL MODULE (ACM)







Removal and Installation

NOTE: It is not necessary to remove the audio control module (ACM) to retrieve the part number.

1. NOTE: Module configuration is only required if a new ACM is being installed.

Upload the ACM configuration information to the scan tool.

2. Remove the instrument panel center finish panel.

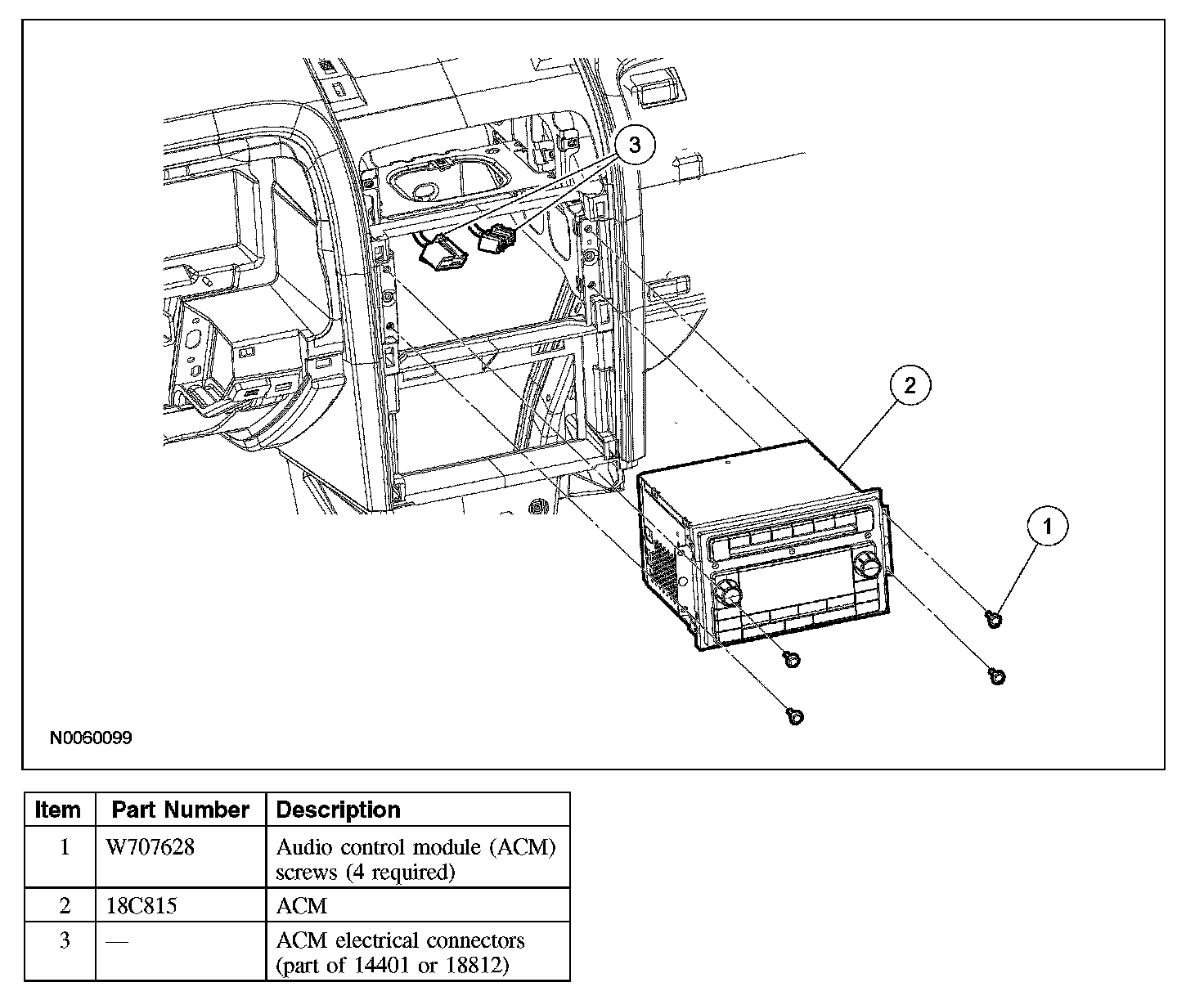

3. Remove the 4 screws and the ACM.
- Disconnect the electrical connectors and the antenna cable.

4. To install, reverse the removal procedure.
- Download the configuration information to the ACM.
