Front Fender: Service and Repair

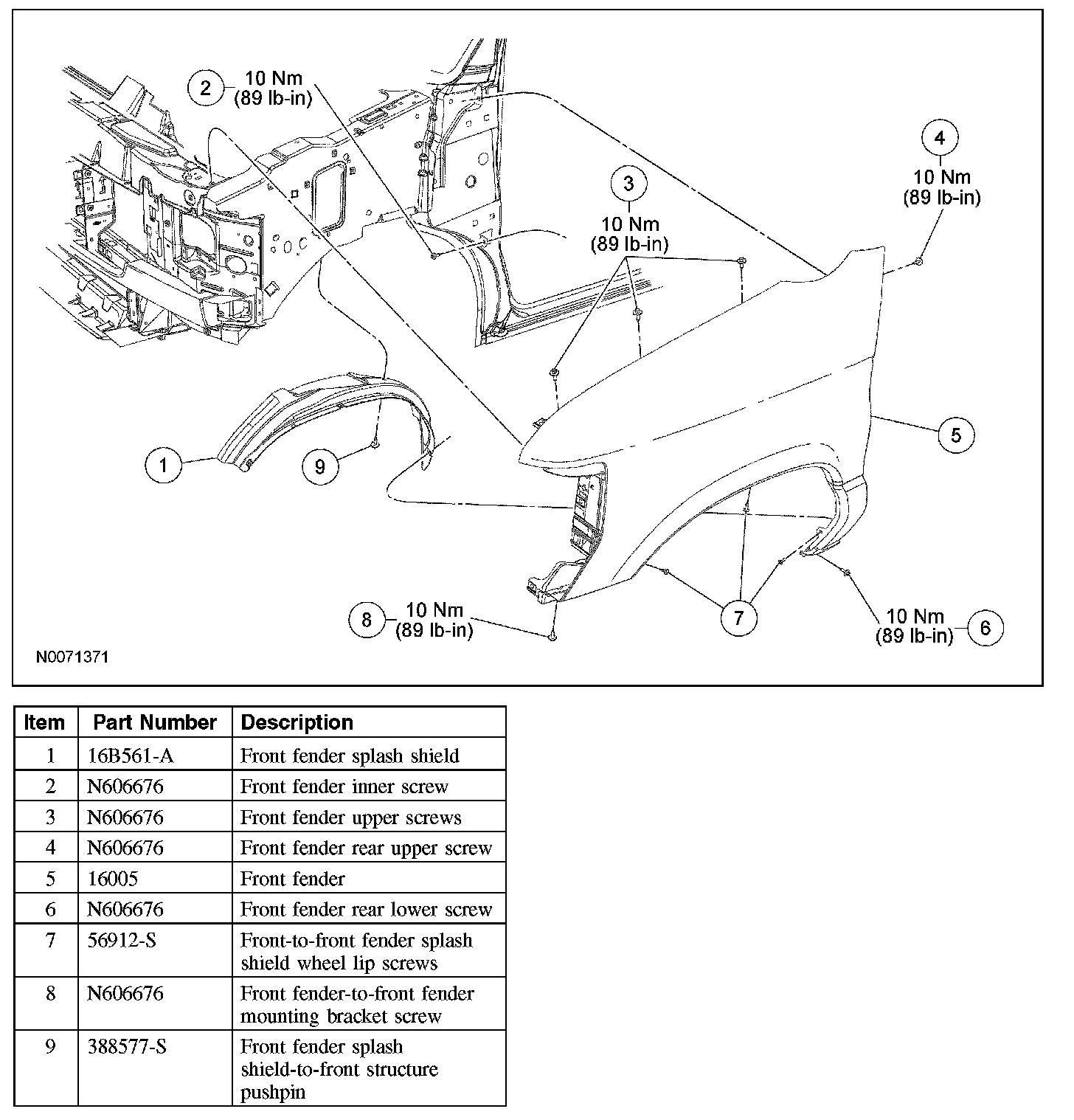

FENDER - FRONT







Removal and Installation
1. Remove the radiator grille opening panel reinforcement.
2. Remove the front fender-to-front fender splash shield wheel lip screws.







3. With the front door open, remove the front fender rear upper screw.
- To install, tighten to 10 Nm (89 lb-in).

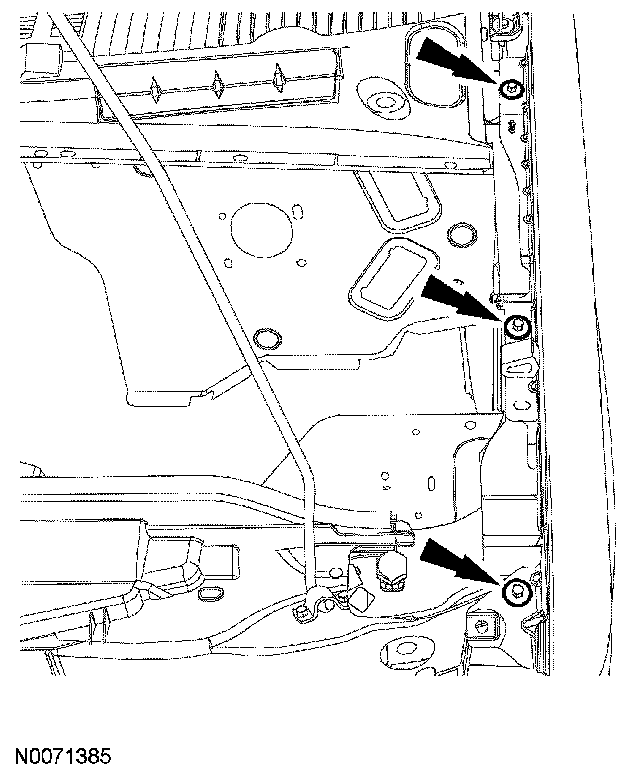

4. Through the front fender wheel well, remove the inner screw.
- To install, tighten to 10 Nm (89 lb-in).







5. Remove the lower rear fender screw and shims.
- To install, tighten to 10 Nm (89 lb-in).

6. Remove the lower front fender-to-fender mounting bracket screw.
- To install, tighten to 10 Nm (89 lb-in).







7. Remove the front fender upper screws and the front fender.
- To install, tighten 10 Nm (89 lb-in).







8. To install, reverse the removal procedure.
