Engine Control Module

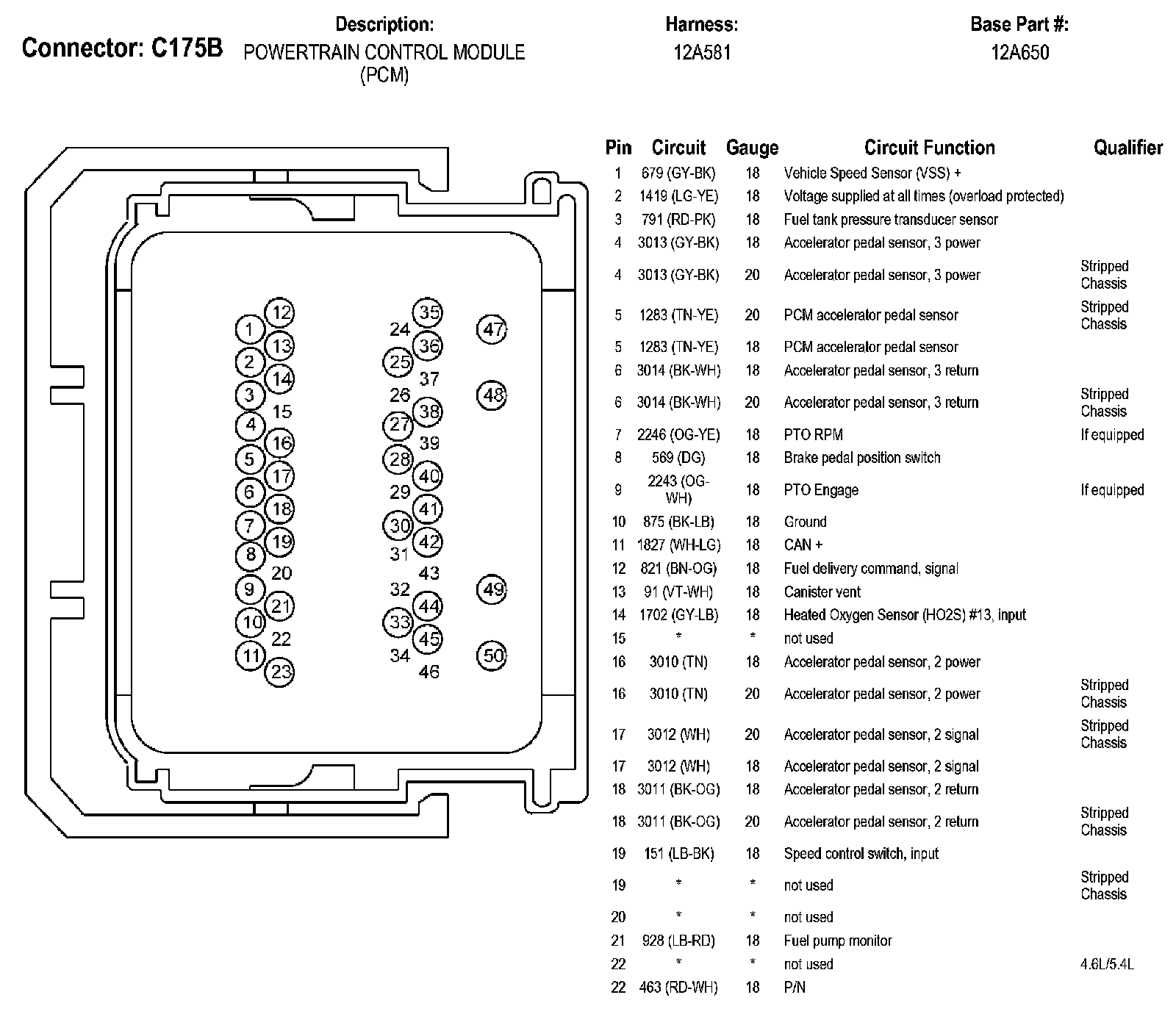

C175B (Part 1):

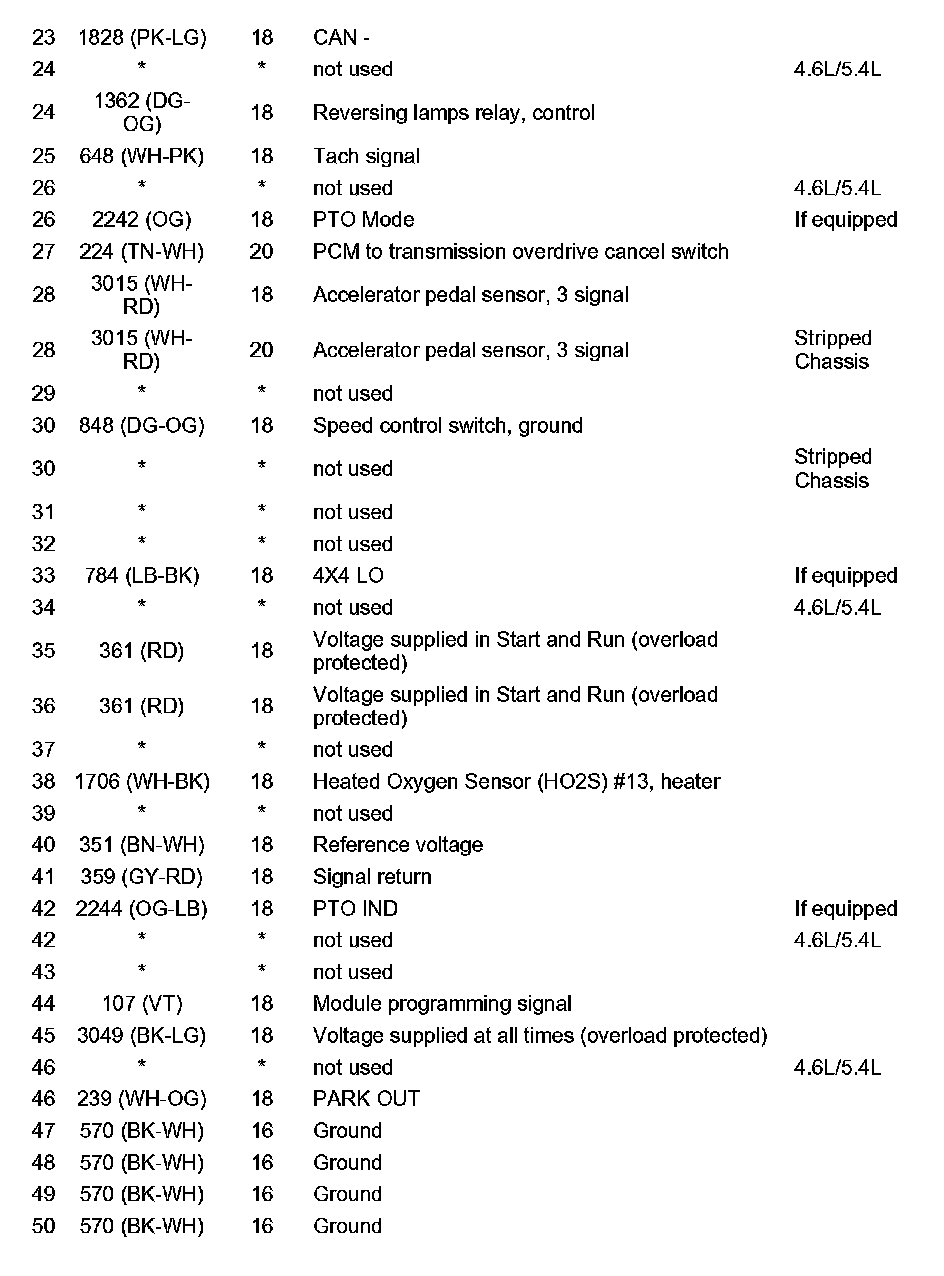

C175B (Part 2):

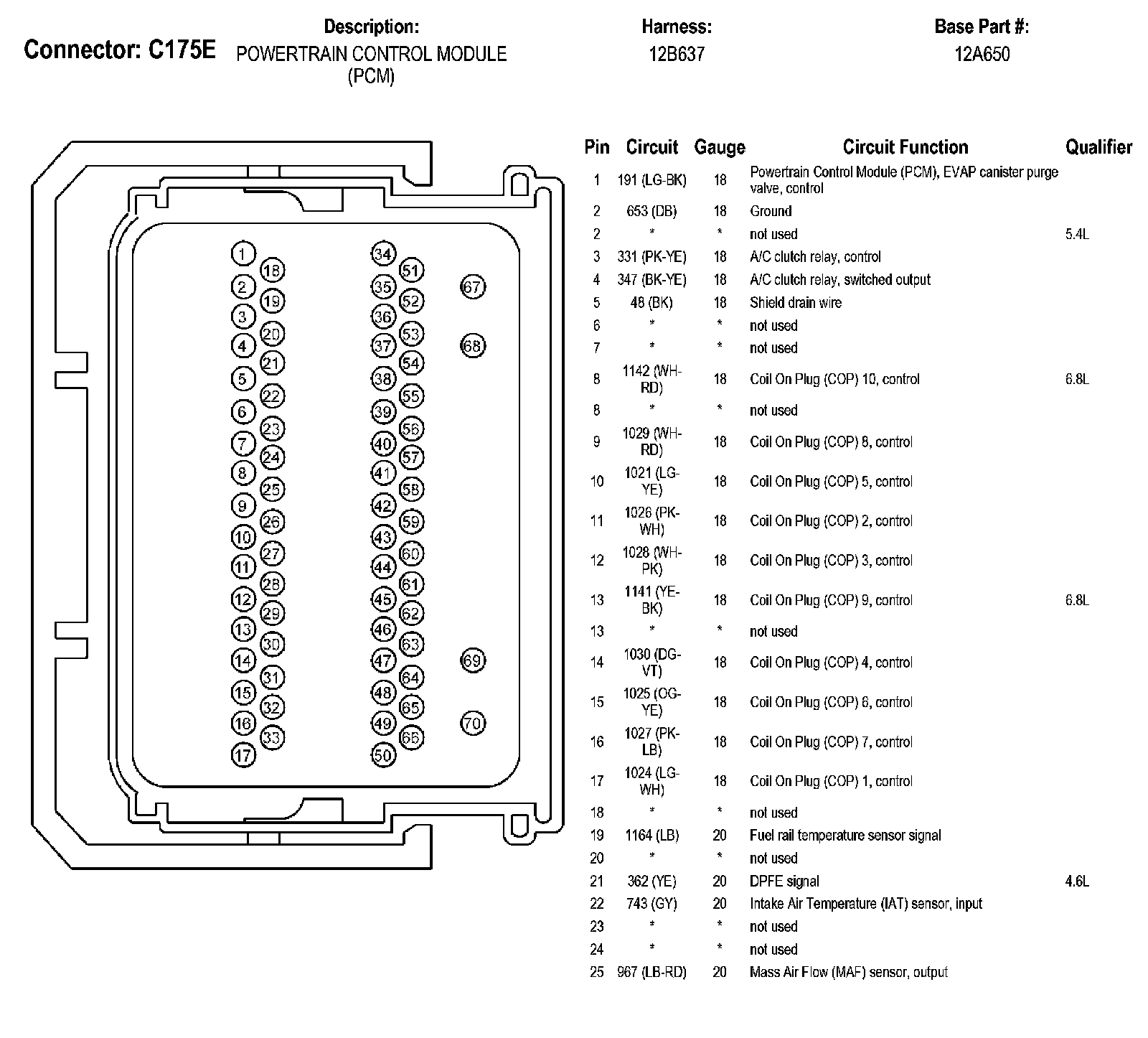

C175E (Part 1):

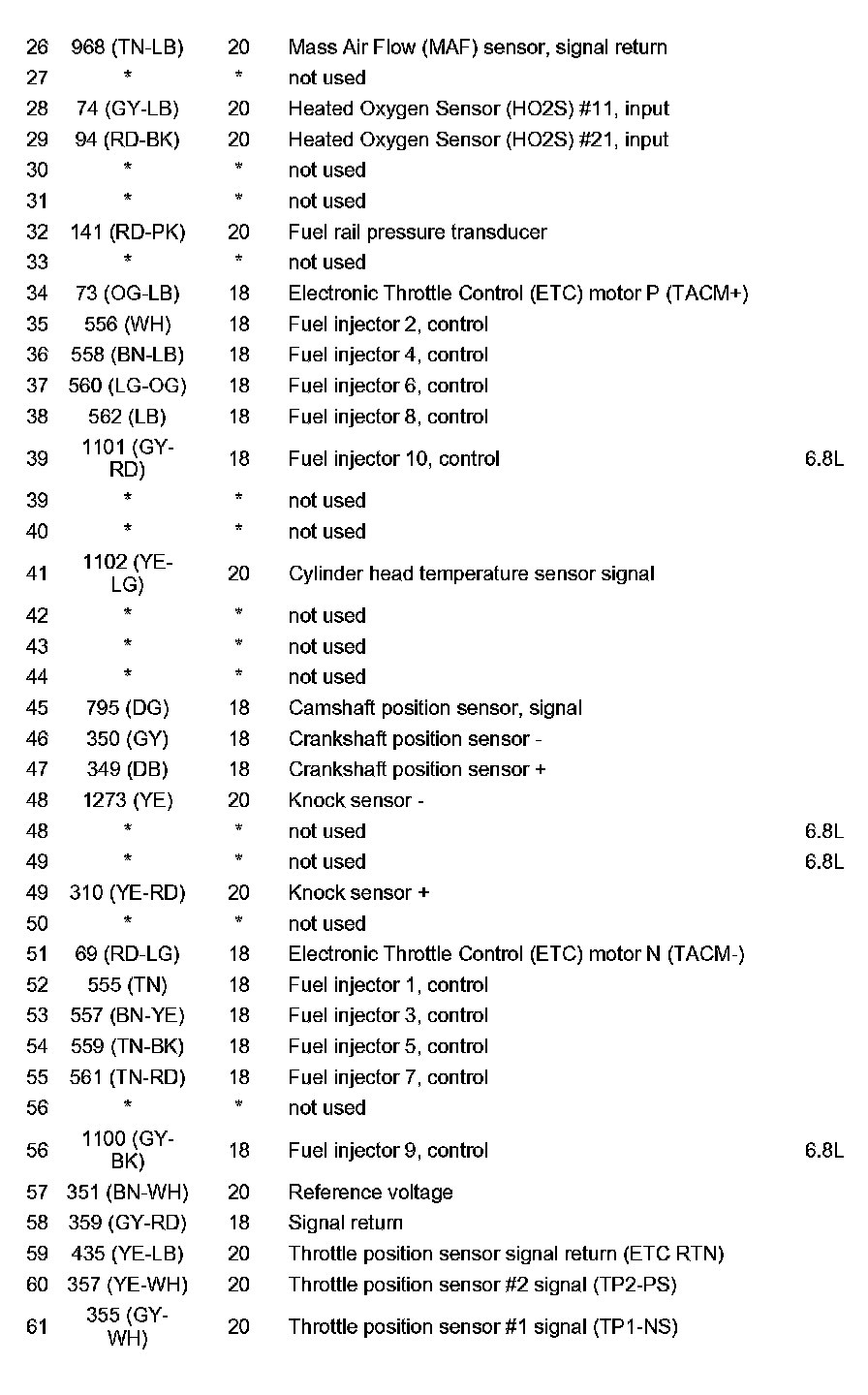

C175E (Part 2):



C175E (Part 3):



C175T:

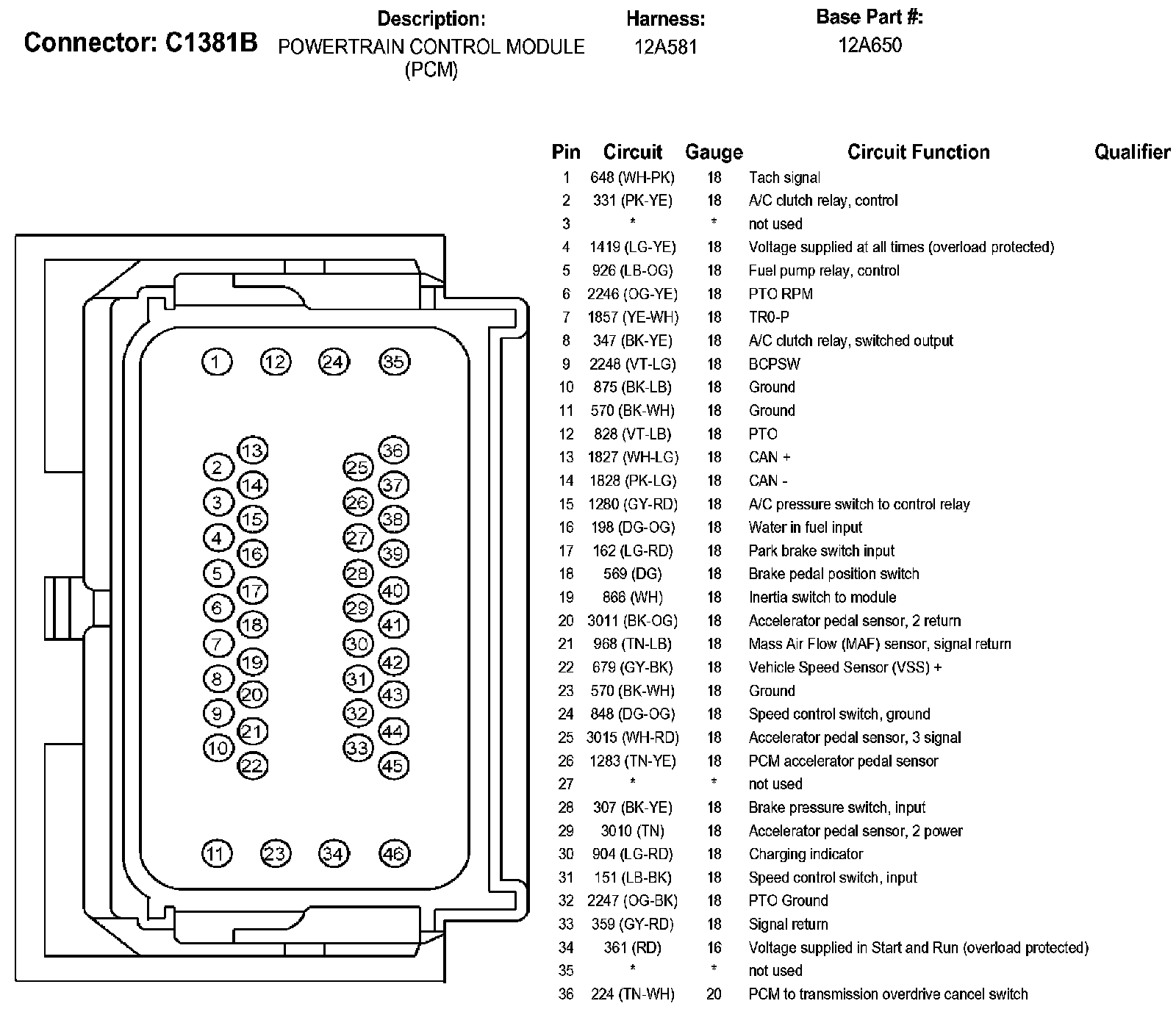

C1381B (Part 1):



C1381B (Part 2):

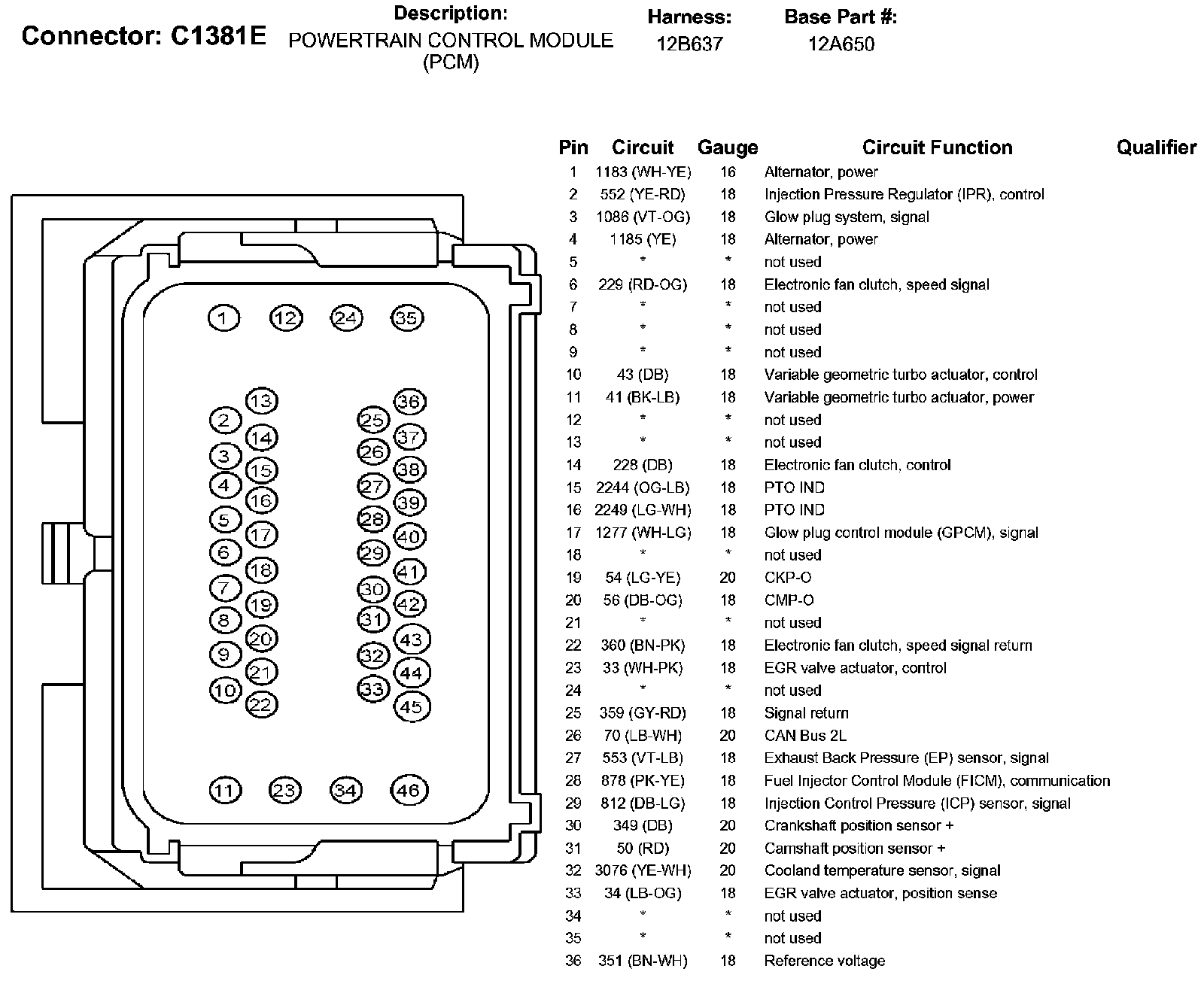

C1381E (Part 1):



C1381E (Part 2):

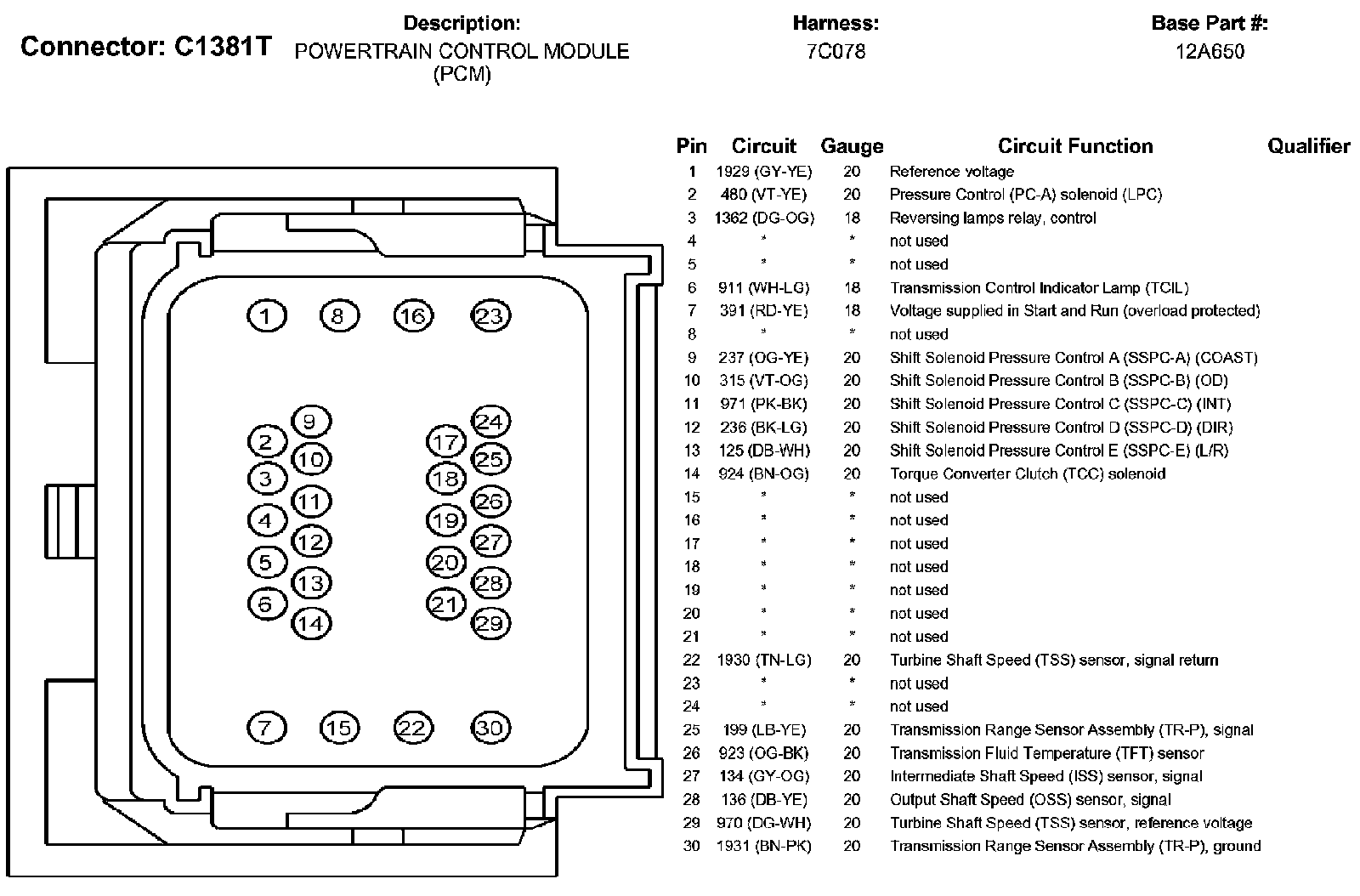

C1381T:
