Front Door Window Regulator: Service and Repair

WINDOW REGULATOR AND MOTOR - FRONT DOOR

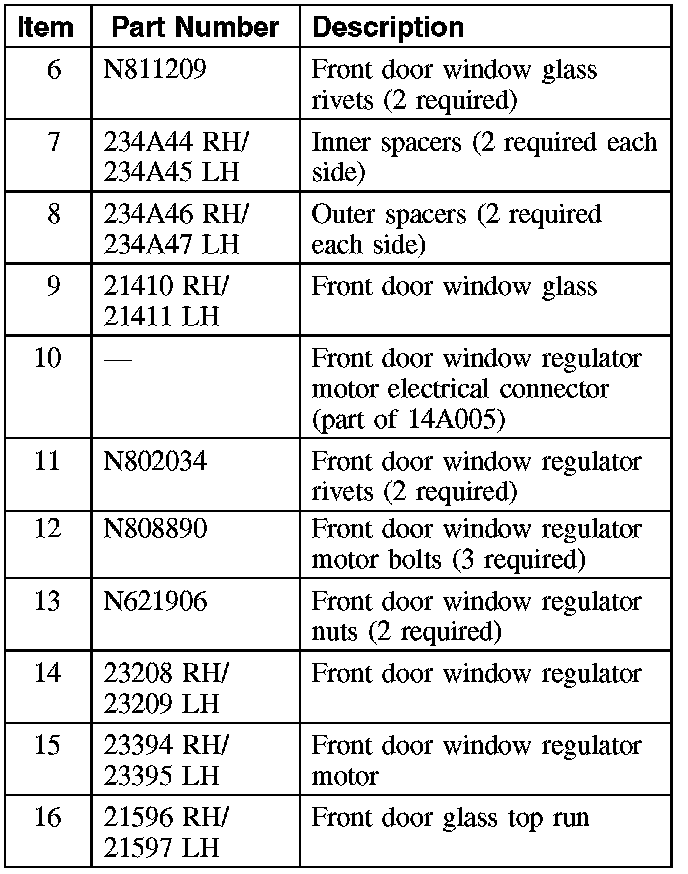

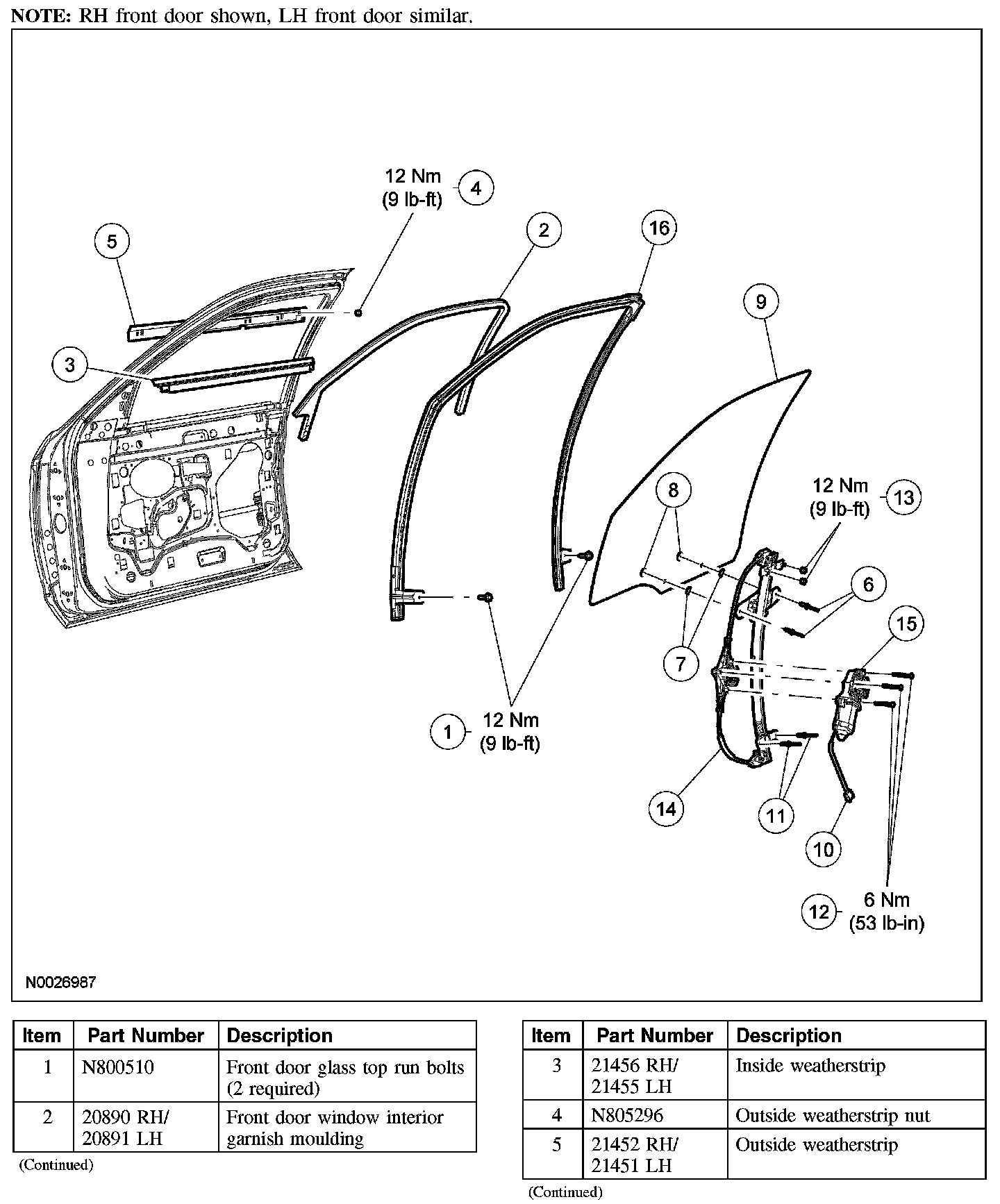

Exploded View

Part 1:

Part 2:

Special Tool(s)

Special Tool(s):

Removal and Installation
1. Remove the front door window glass.
2. Disconnect the front door window regulator motor electrical connector.
3. Remove the 2 front door window regulator rivets.







4. Remove the 3 front door window regulator motor bolts.
- To install, tighten to 6 Nm (53 lb-in).

5. Remove the 2 front door window regulator nuts.
- To install, tighten to 12 Nm (9 lb-ft).

6. Remove the front door window regulator.
7. To install, reverse the removal procedure.
- Use the special tool to install the new rivets.
