Home >> Ford >> 2008 >> Crown Victoria V8-4.6L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations >> Battery Junction Box
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

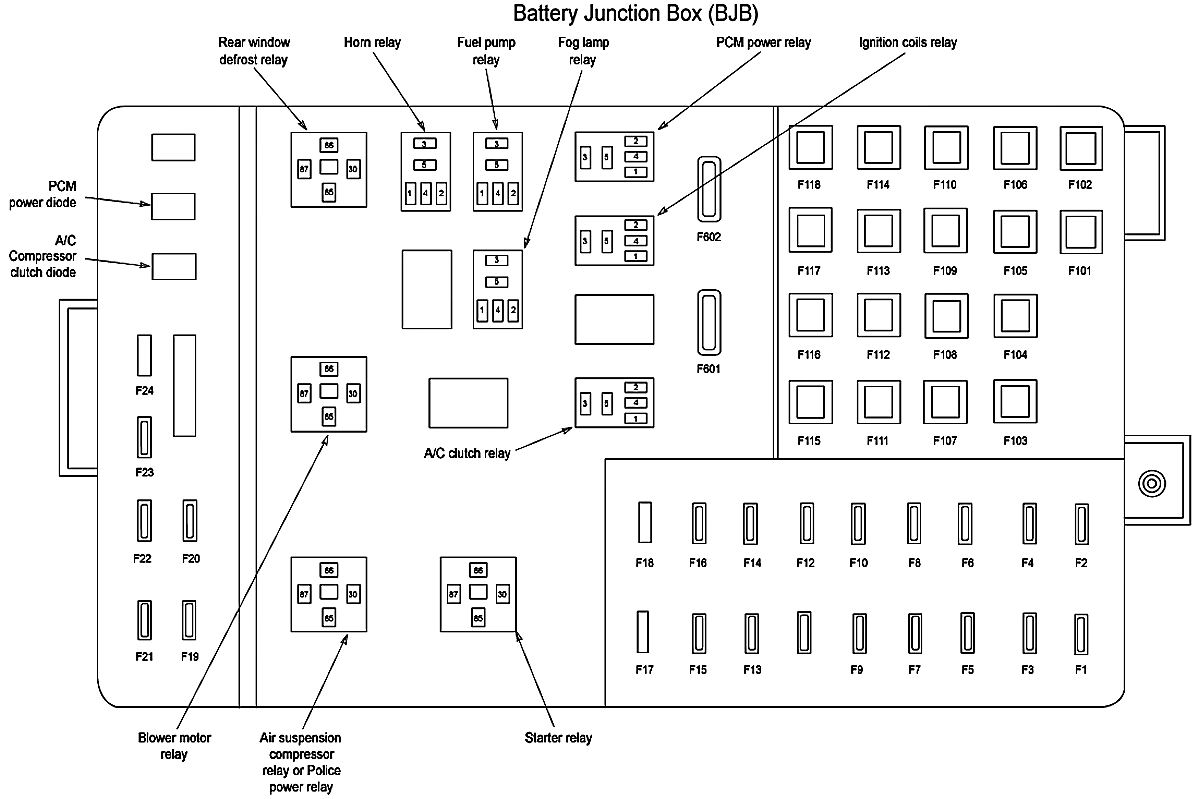

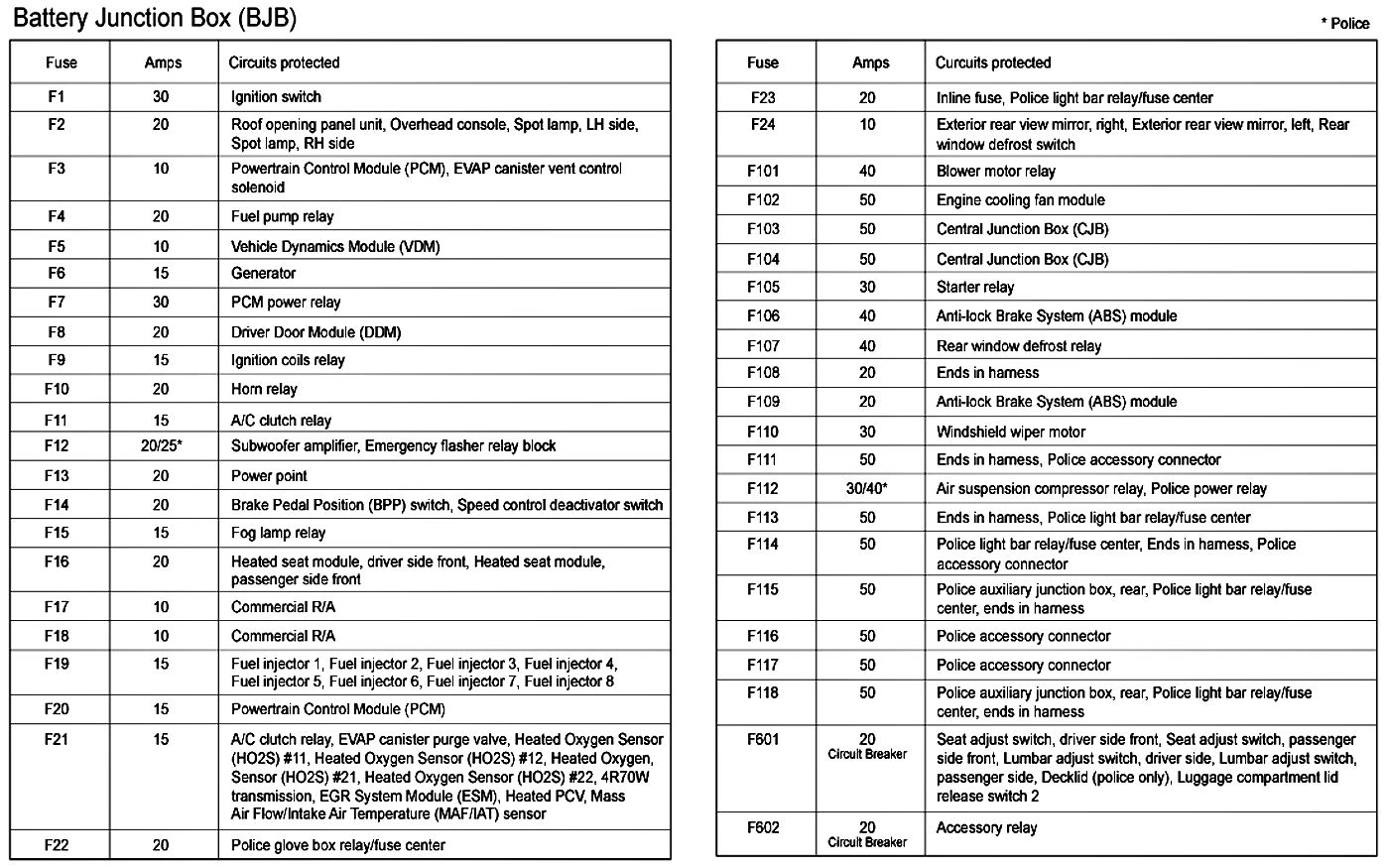

Battery Junction Box













Note: The battery junction box is located in the engine compartment.
