System Diagram

Exhaust System - Exploded View

Single Exhaust (Part 1):

System Diagram

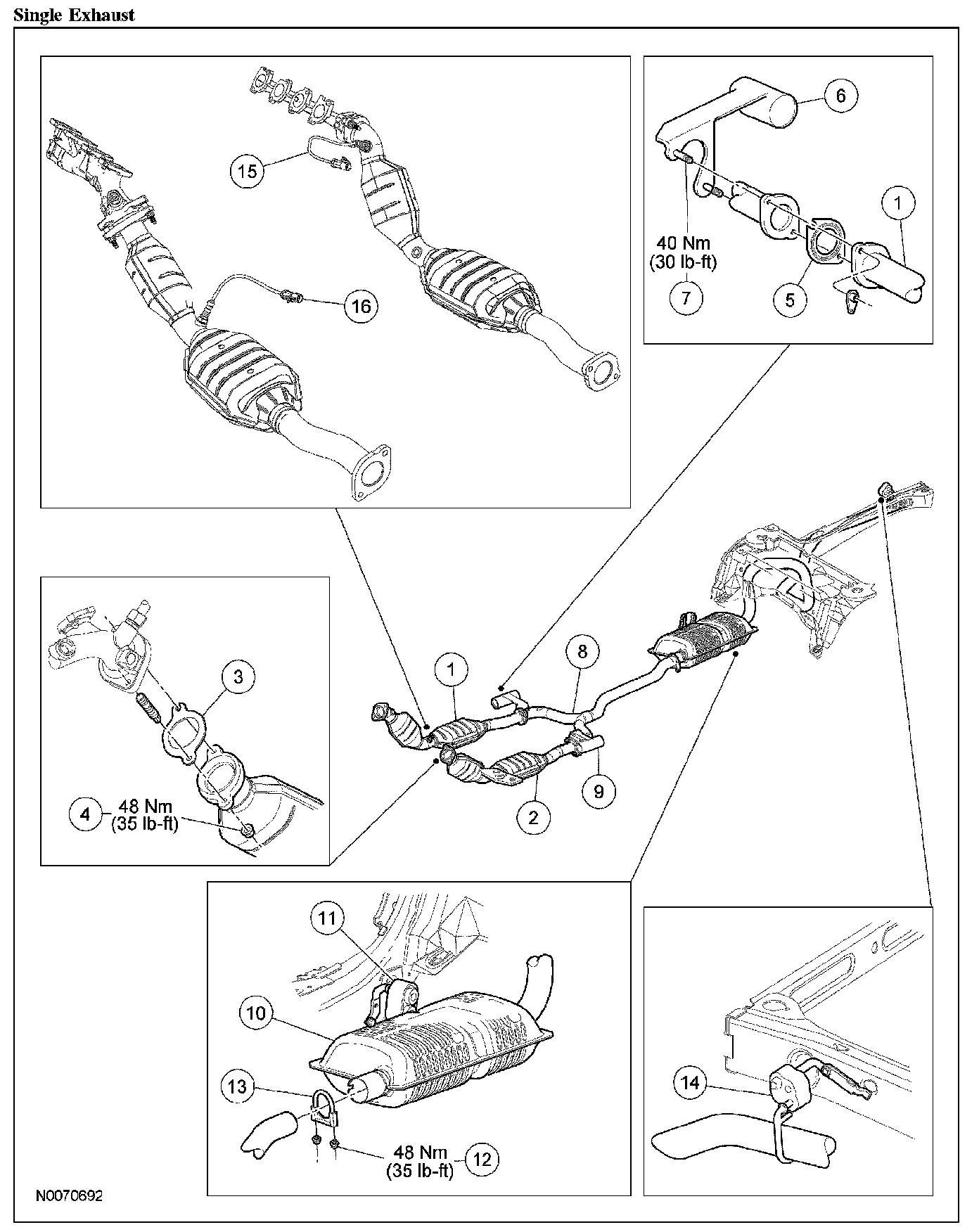

Single Exhaust (Part 1):

Single Exhaust (Part 2):

Single Exhaust (Part 3):

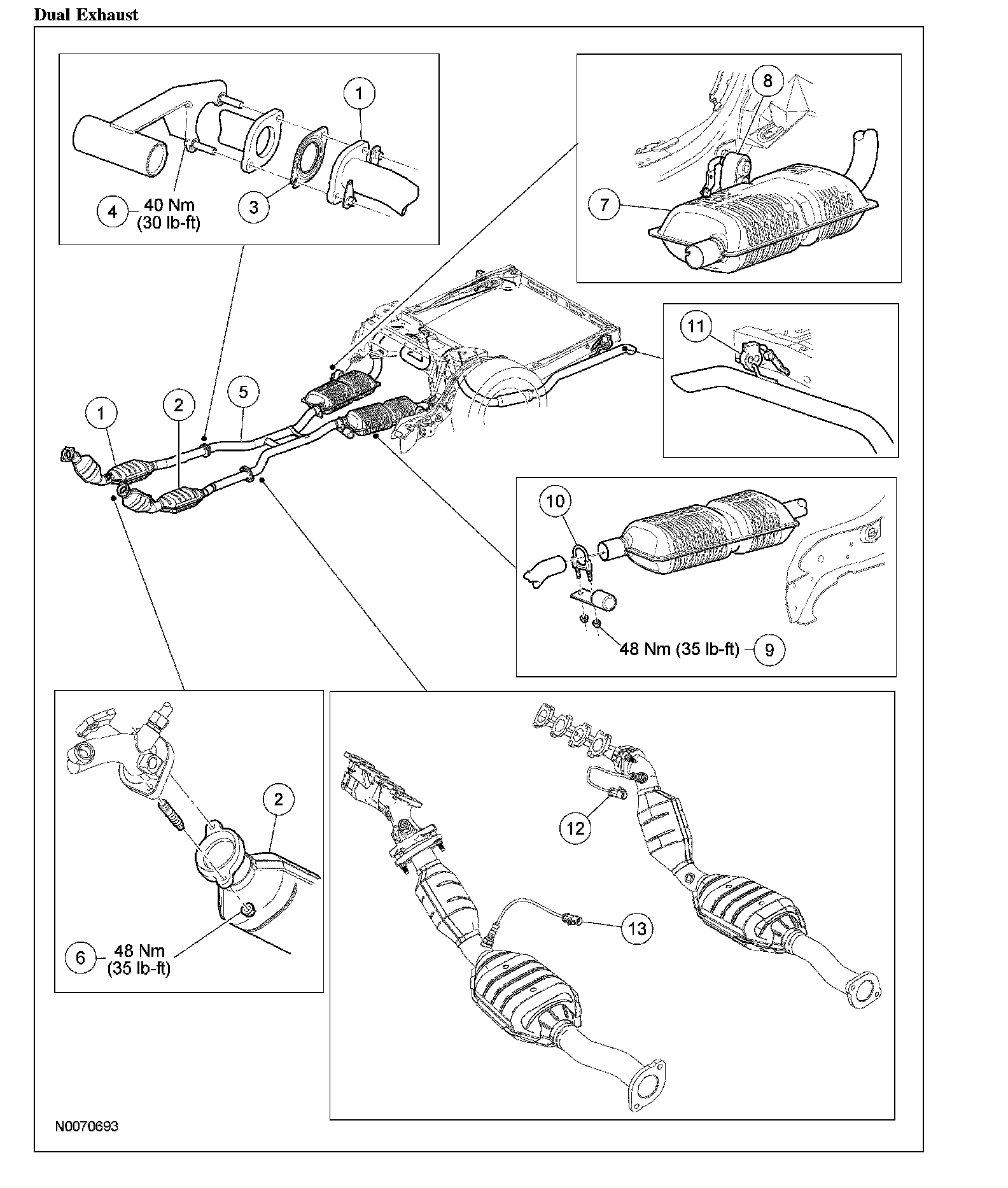

Dual Exhaust (Part 1):

Dual Exhaust (Part 2):

Dual Exhaust (Part 3):
