EATC HVAC Module Connector

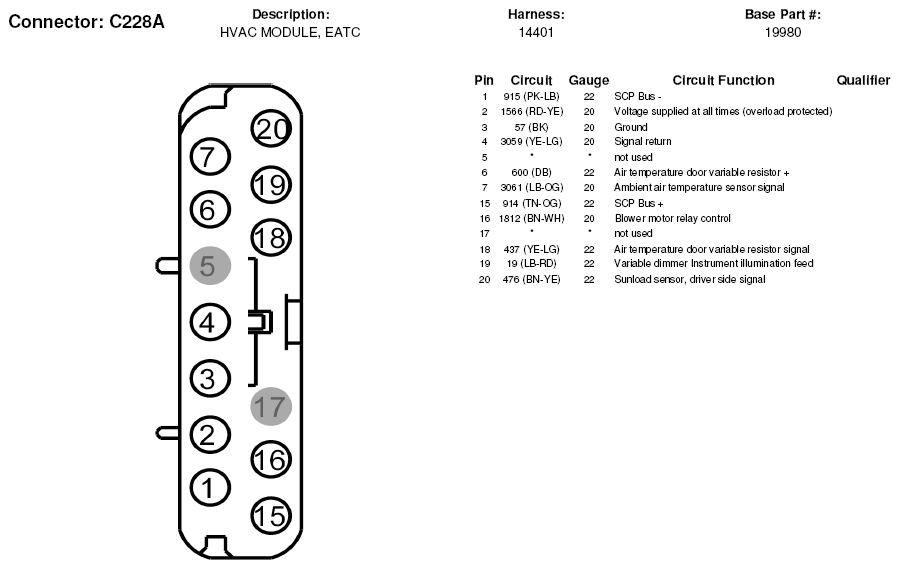

Fig 1: EATC HVAC Module Connector End View (C228A)
Courtesy of FORD MOTOR CO.

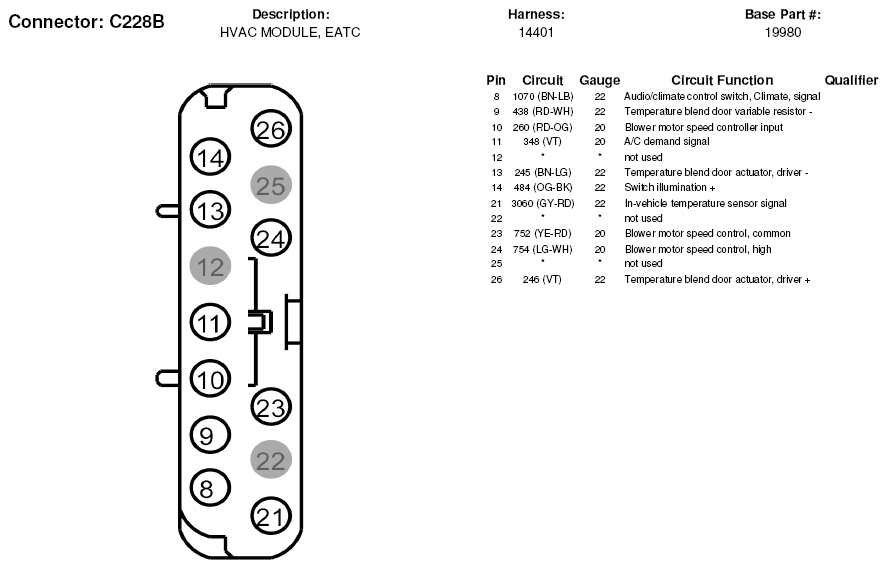

Fig 2: EATC HVAC Module Connector End View (C228B)
