Symbols

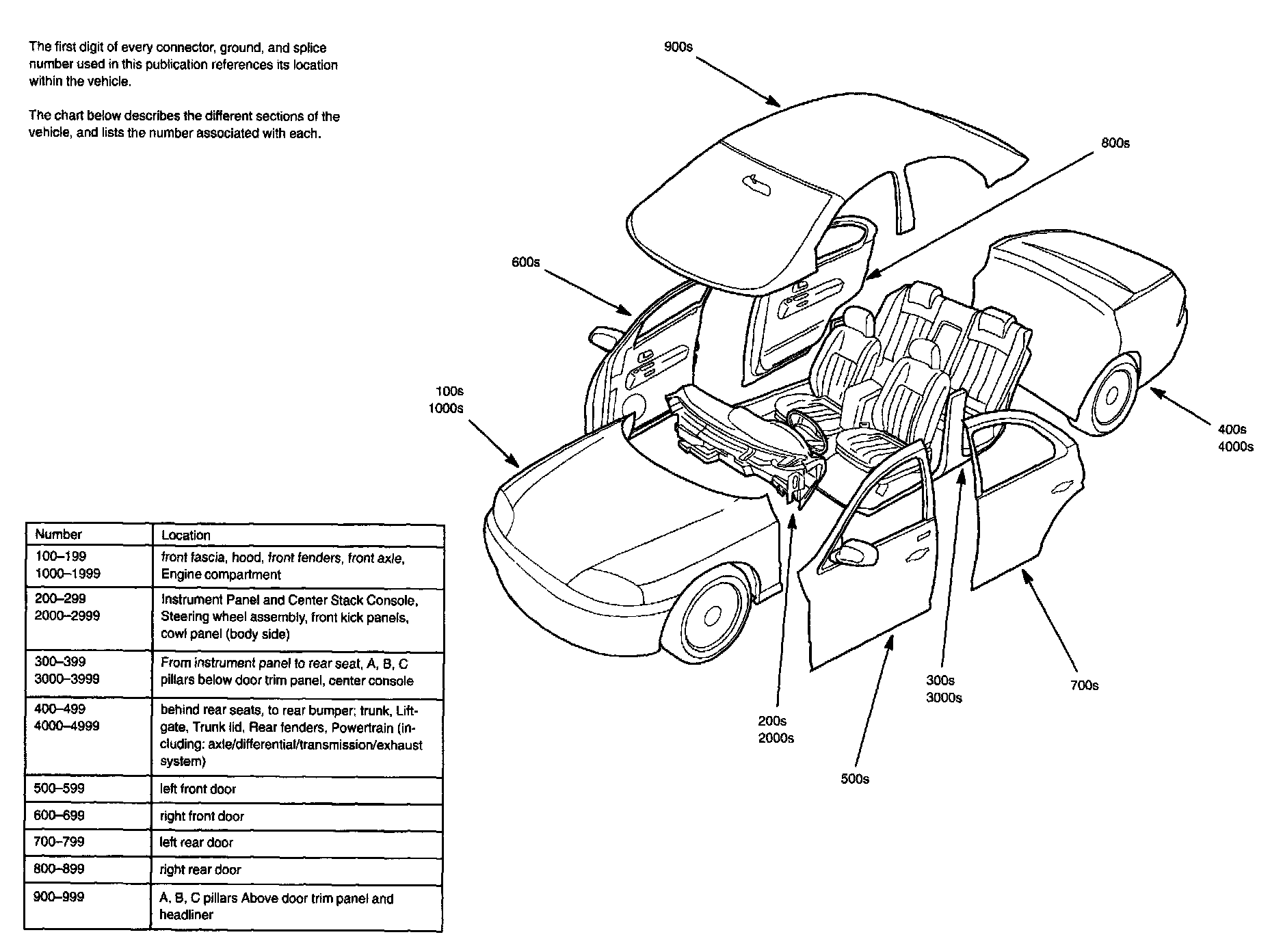

Symbols Part 1:

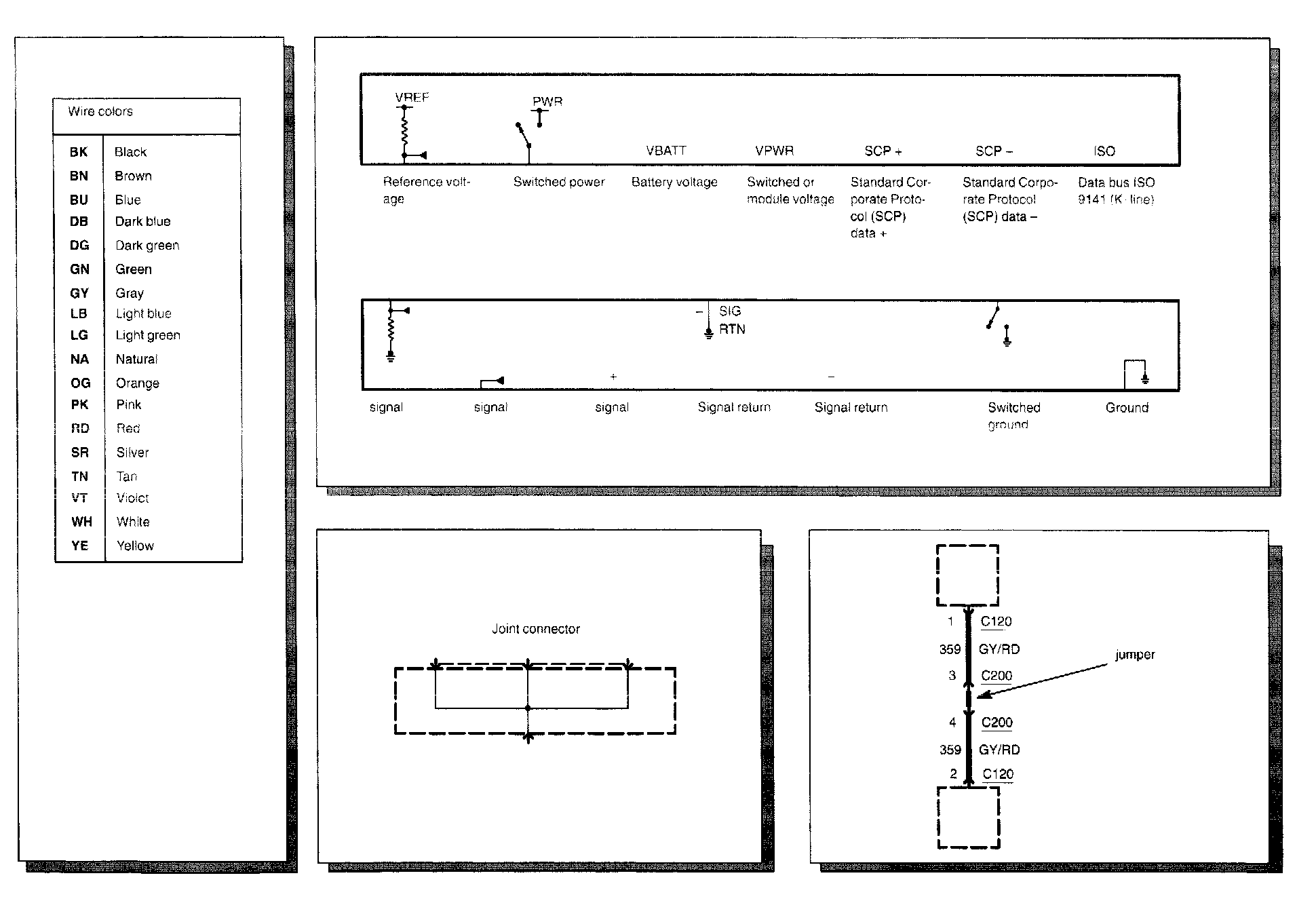

Symbols Part 2:

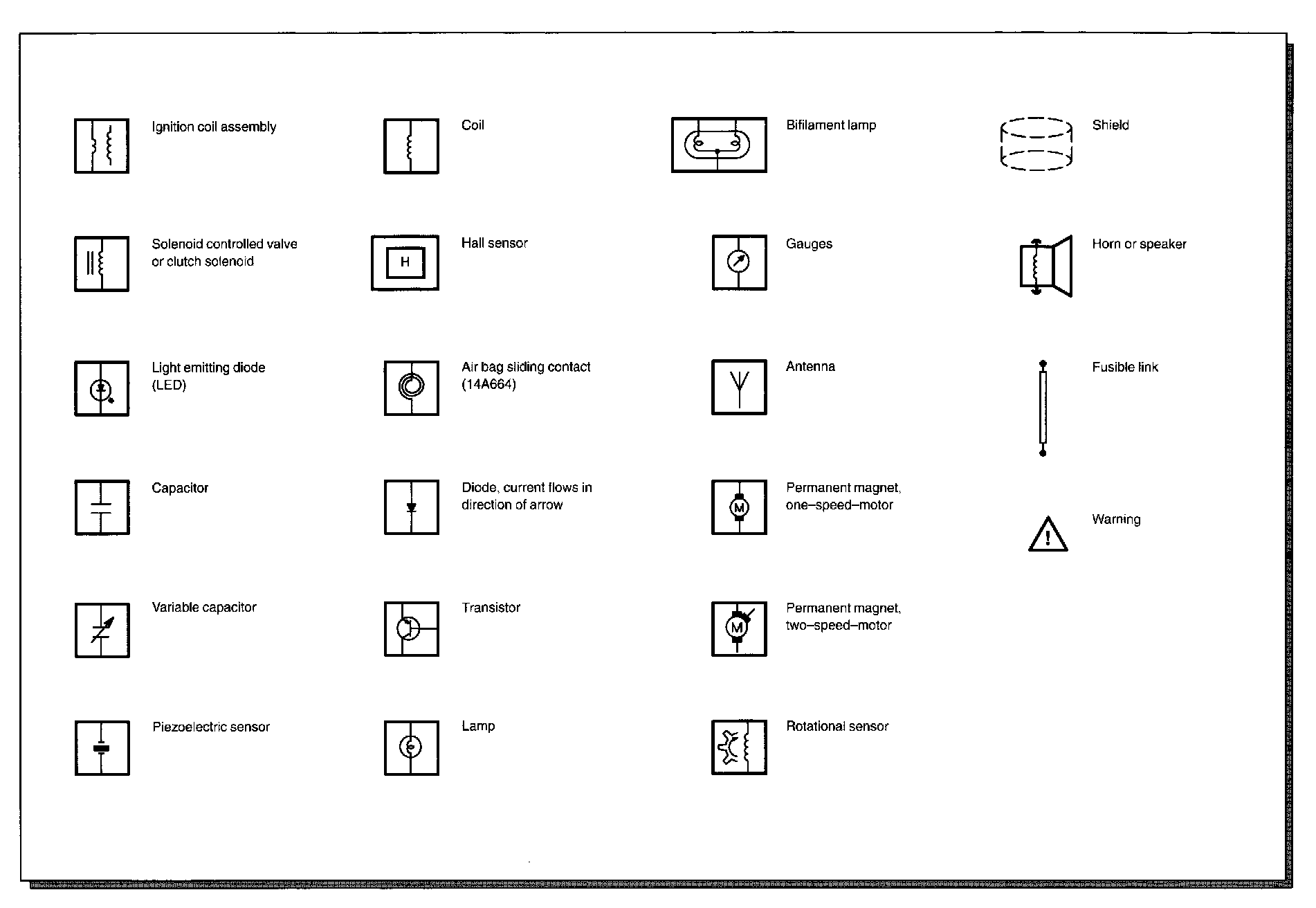

Symbols Part 3:

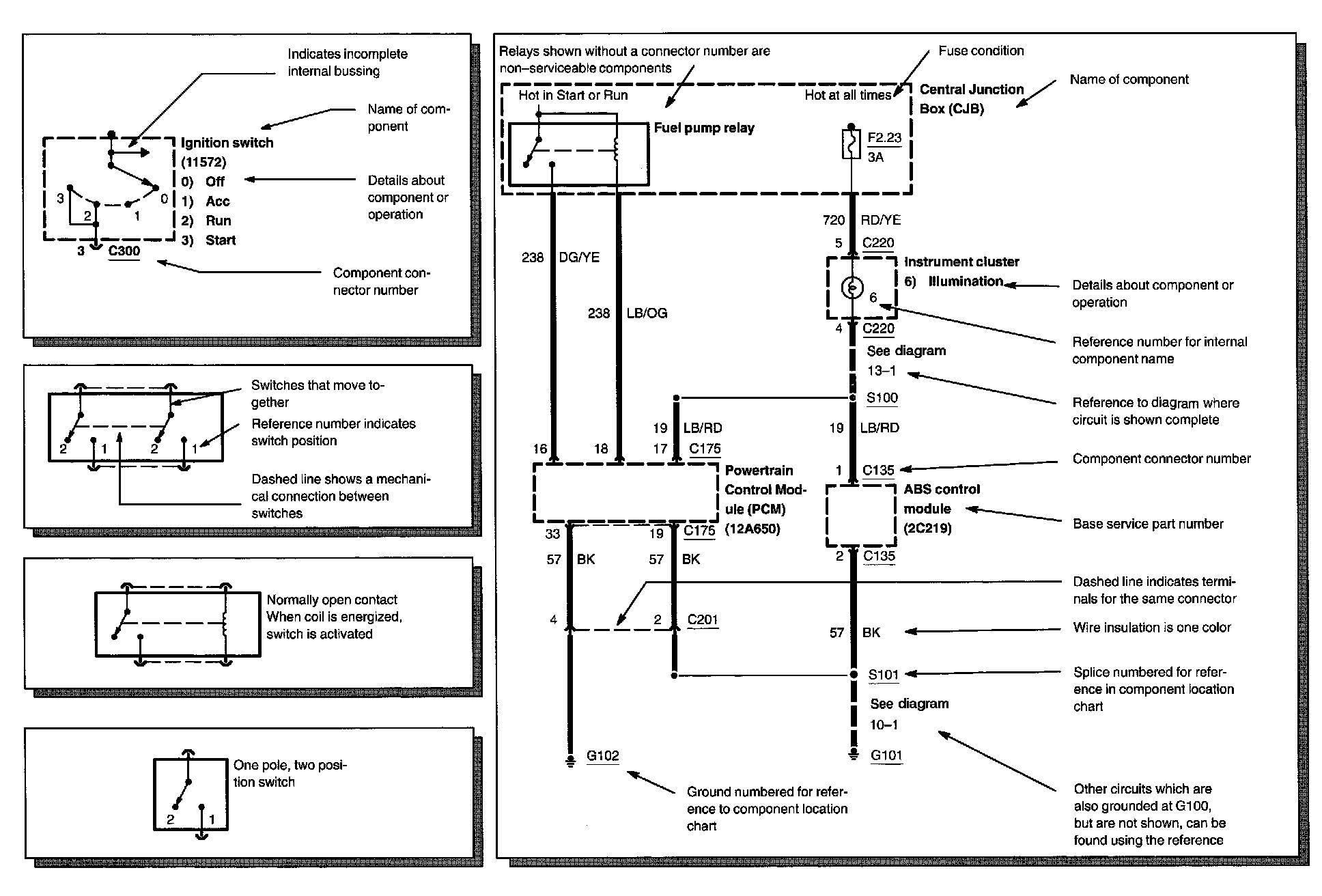

Symbols Part 4:

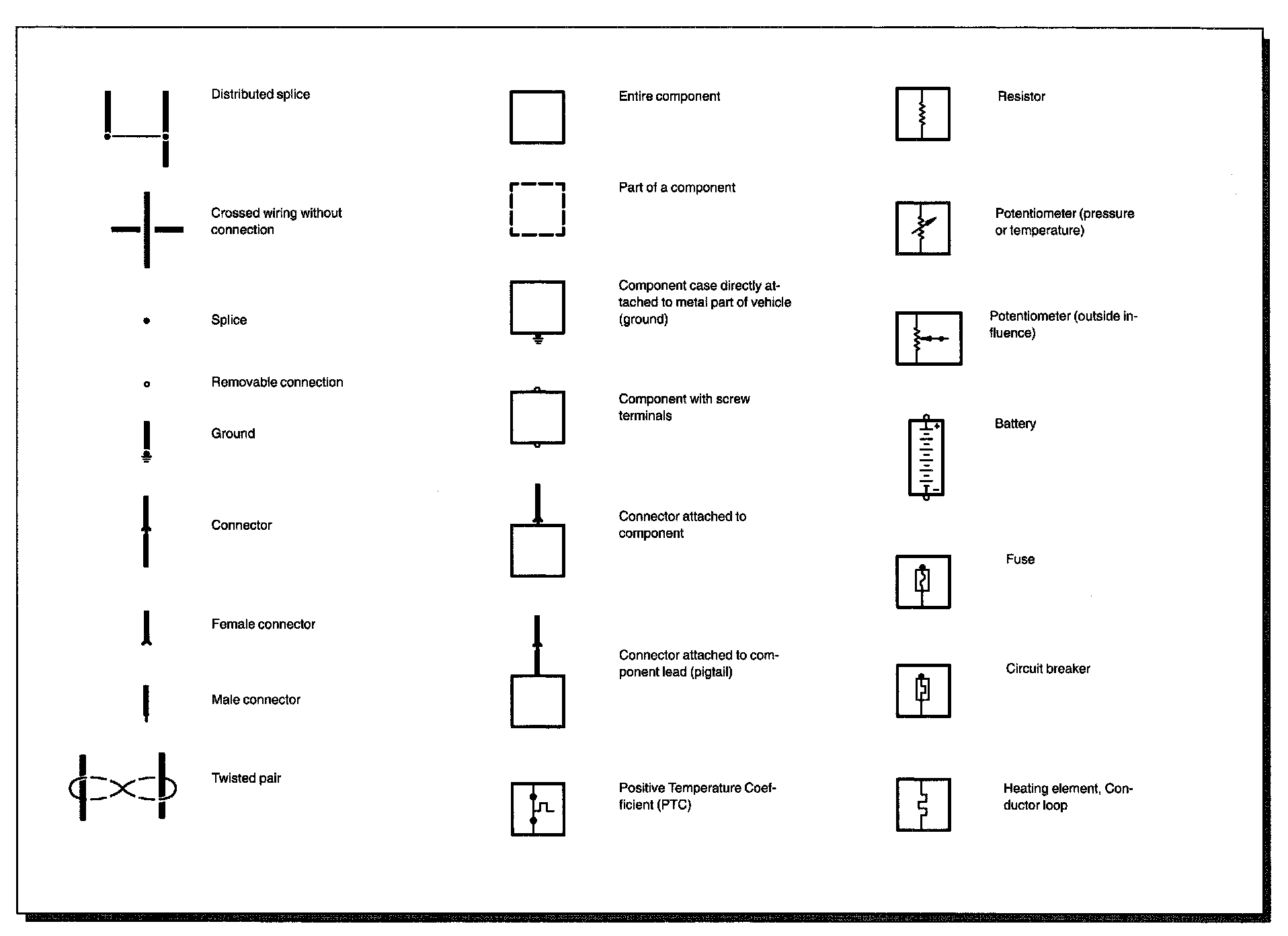

Symbols Part 5:

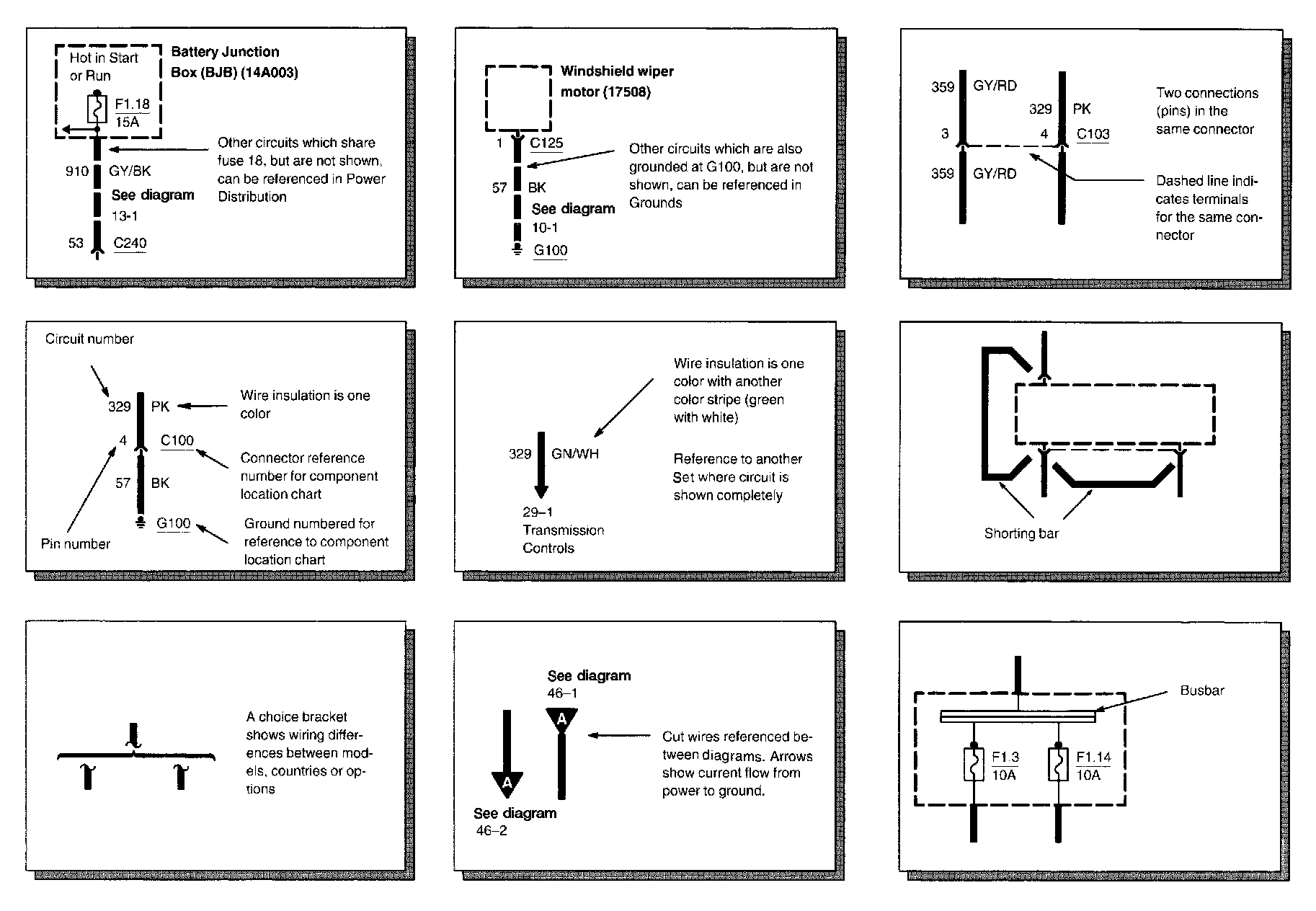

Symbols Part 6:
