System Diagram

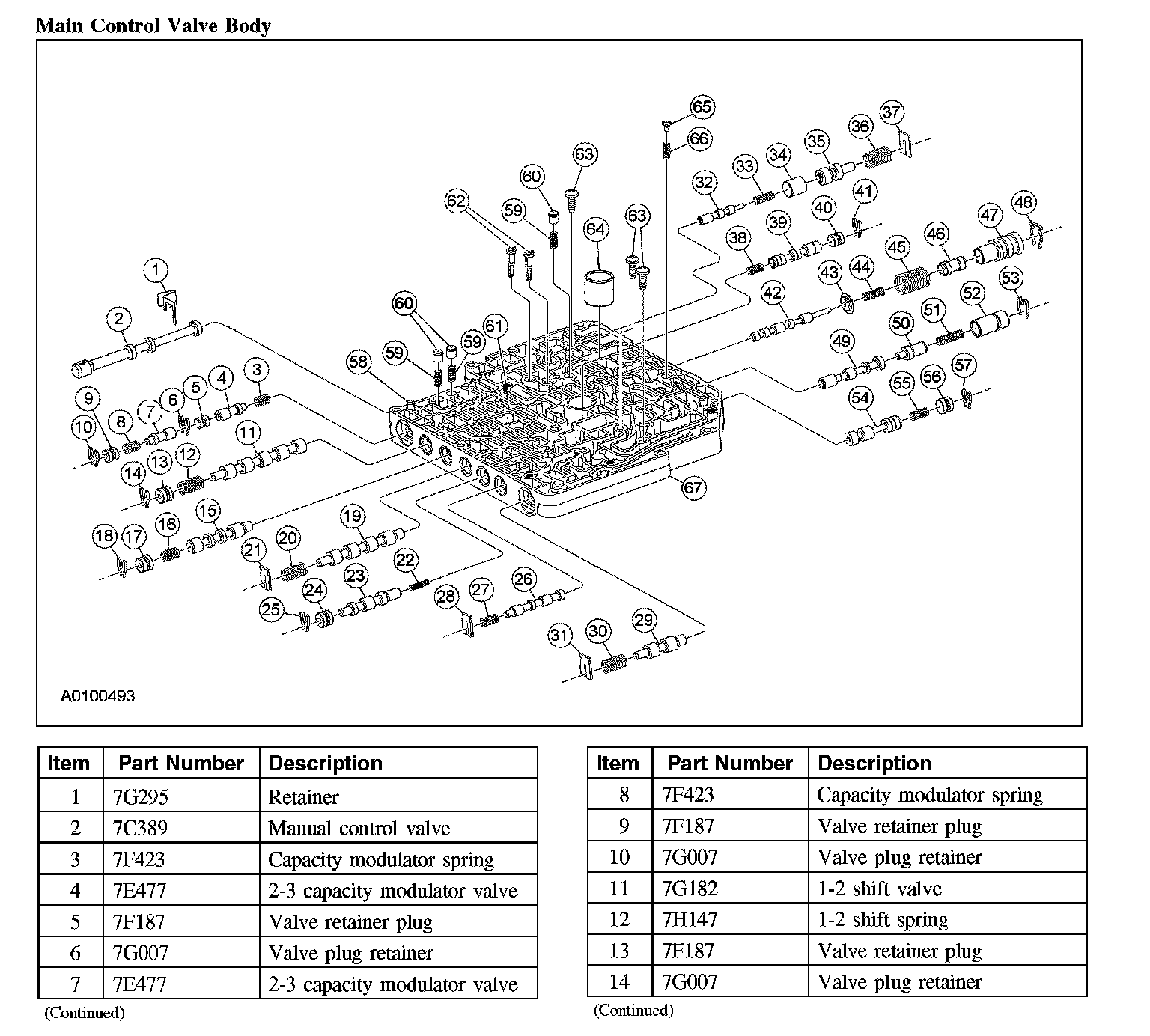

Main Control Valve Body

Main Control Valve Body (Part 1):

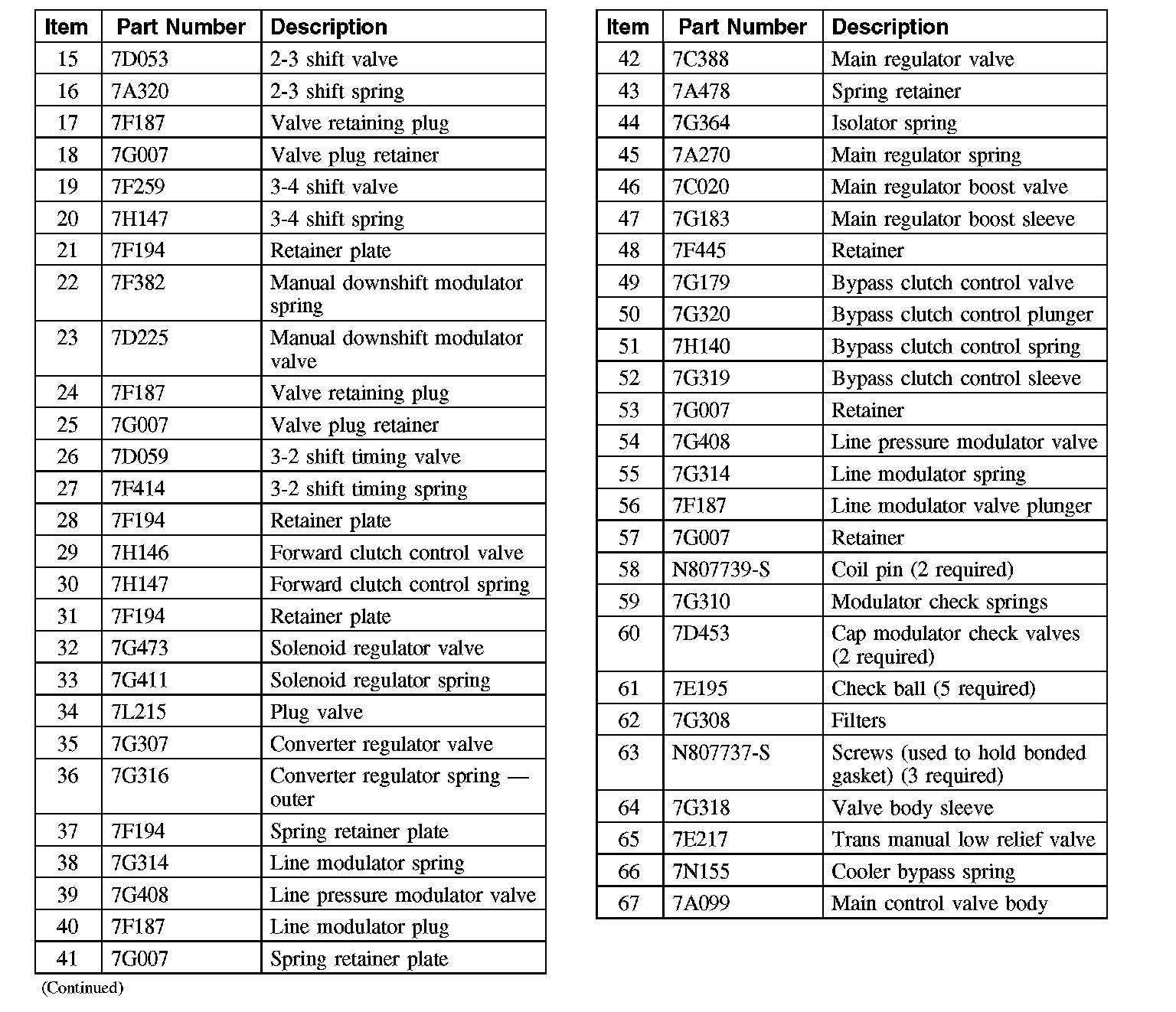

Main Control Valve Body (Part 2):

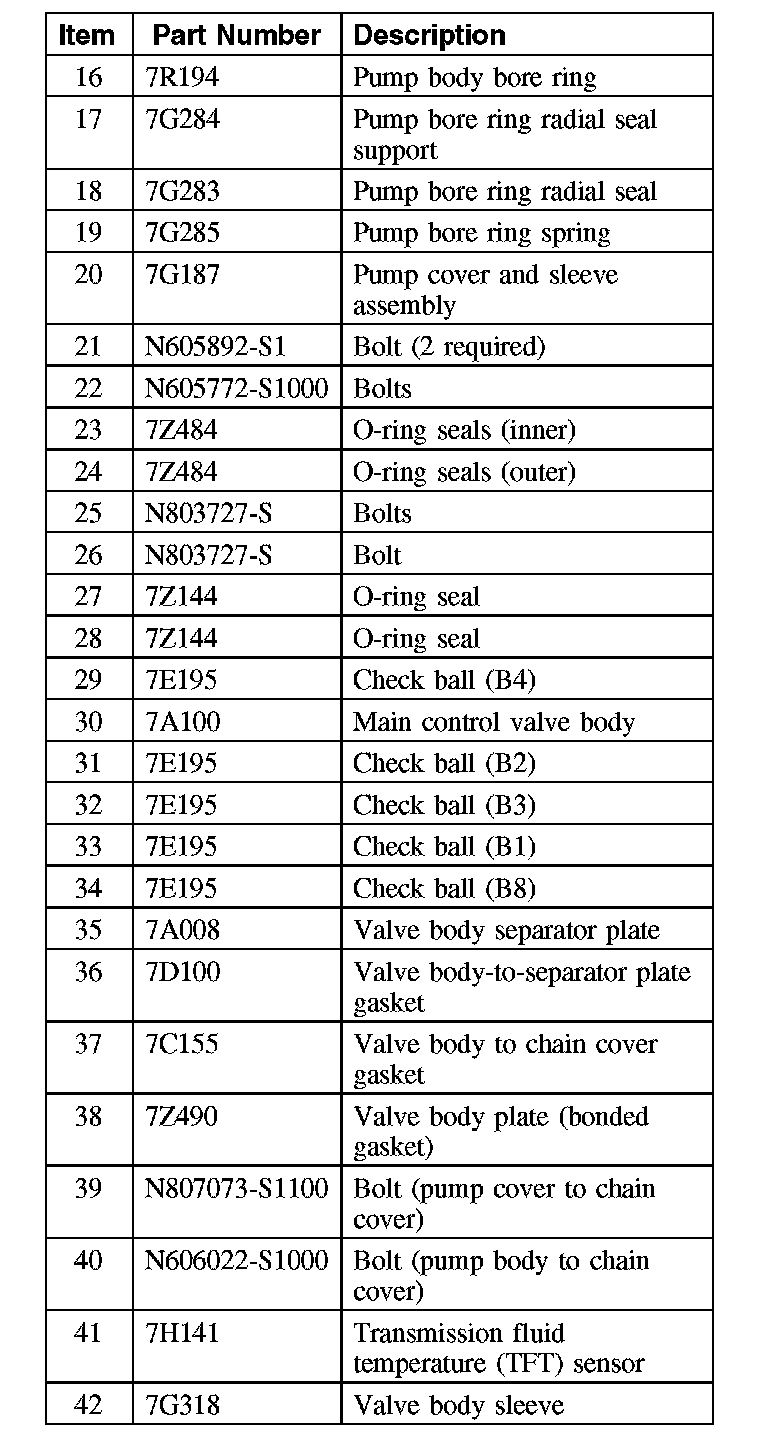

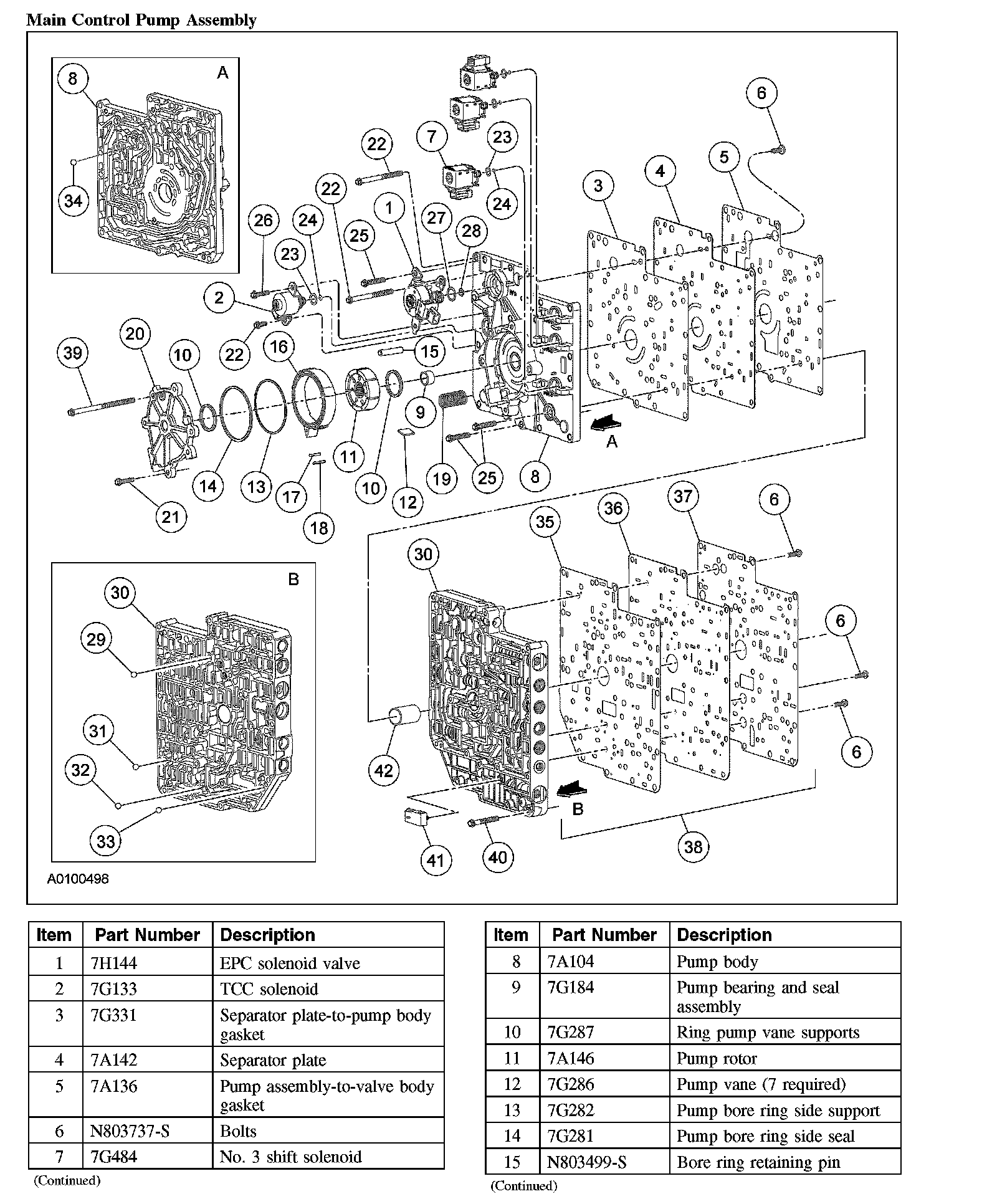

Main Control Pump Assembly

System Diagram

Main Control Valve Body (Part 1):

Main Control Valve Body (Part 2):

Main Control Pump Assembly (Part 1):

Main Control Pump Assembly (Part 2):
