Turbine Shaft Speed (TSS) Sensor: Notes

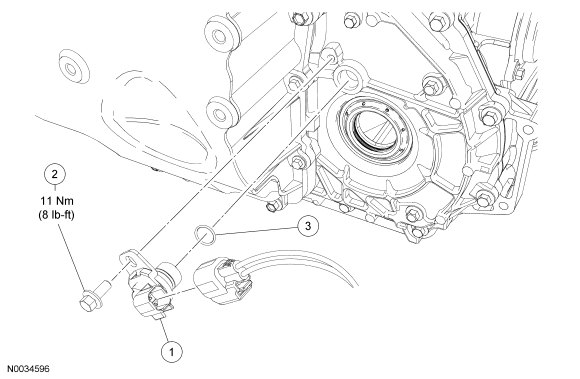

Fig 1: Exploded View Of Turbine Shaft Speed TSS Sensor With Torque Specifications
GF0020128Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7M101 Turbine shaft speed (TSS) sensor
2 N605771-S36 TSS sensor bolt
3 N811757-S100 O-ring seal
