Seat Backrest - Front, Center
>>
Notes
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Seat Backrest - Front, Center: Notes

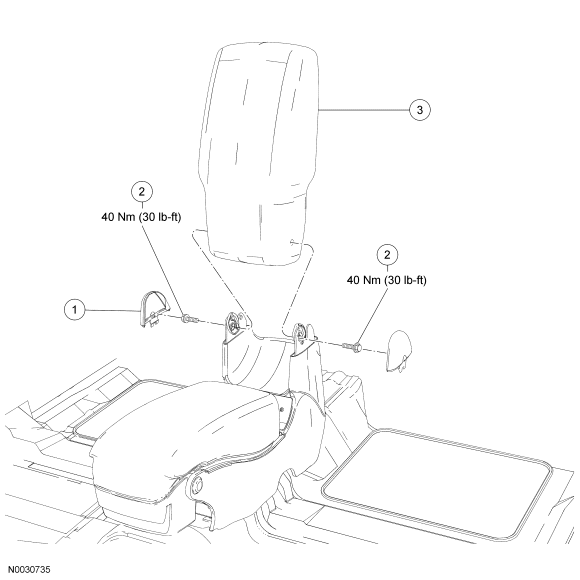

Fig 1: Front, Center Seat Backrest Replacement Components -- With Torque Specifications
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
654A83
Backrest pivot trim cover (2 required)
2
N811846
Backrest pivot bolts (2 required)
3
644A22
Center front seat backrest
