Seat - Front, Center: Notes

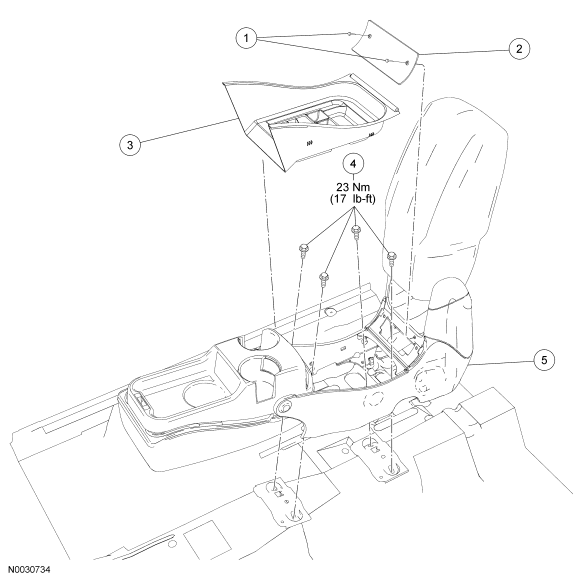

Fig 1: Front, Center Seat Replacement Components -- With Torque Specifications
GF0019239Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Pushpin retainers (2 required)
2 63822 Trim cover
3 045G74 Console tray
4 W701875 Bolts (4 required)
5 600A50 Center front seat
