Pressure Feedback Exhaust Sensor: Service and Repair

DIFFERENTIAL PRESSURE FEEDBACK EXHAUST GAS RECIRCULATION (EGR) SENSOR

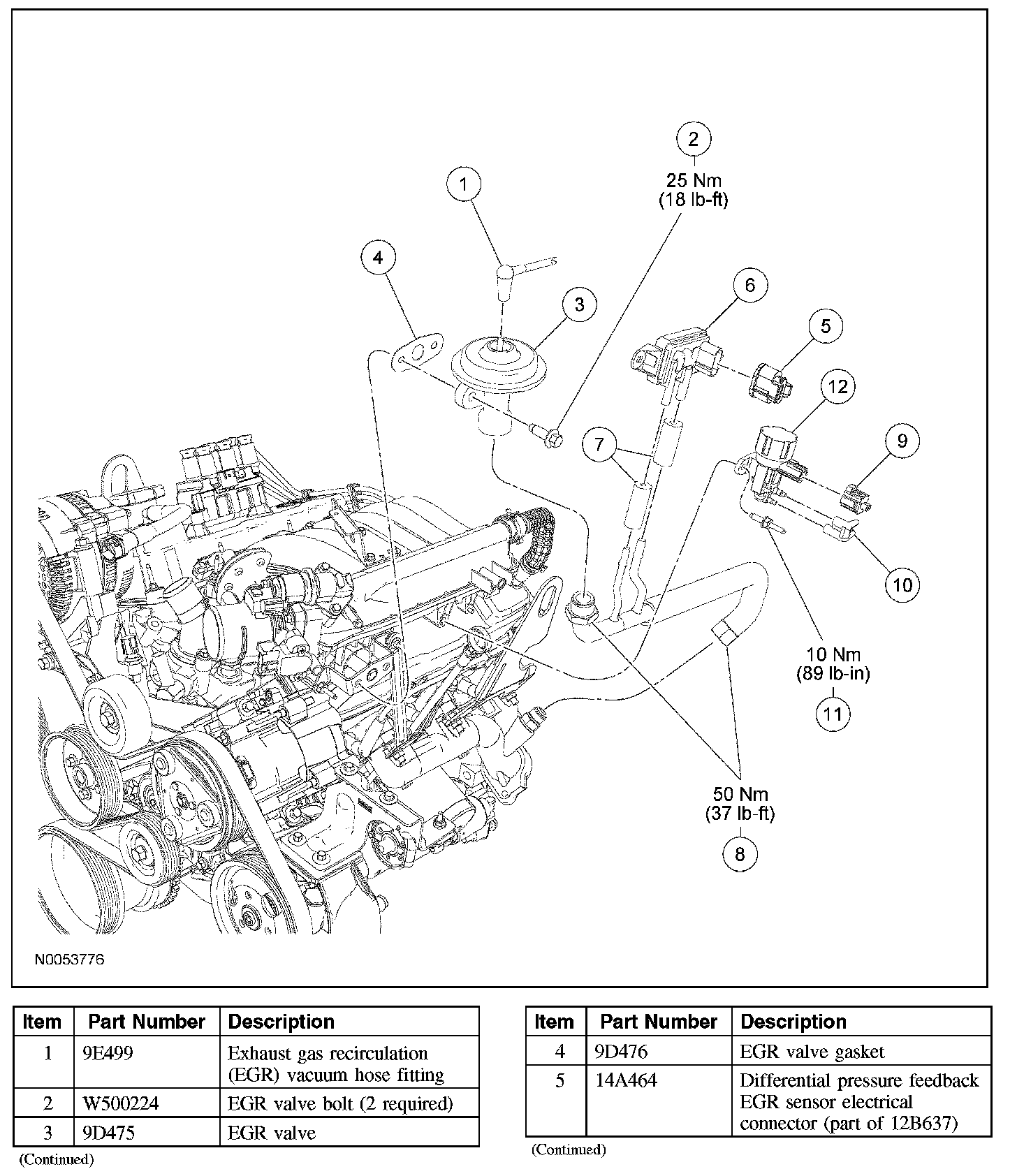

Part 1:

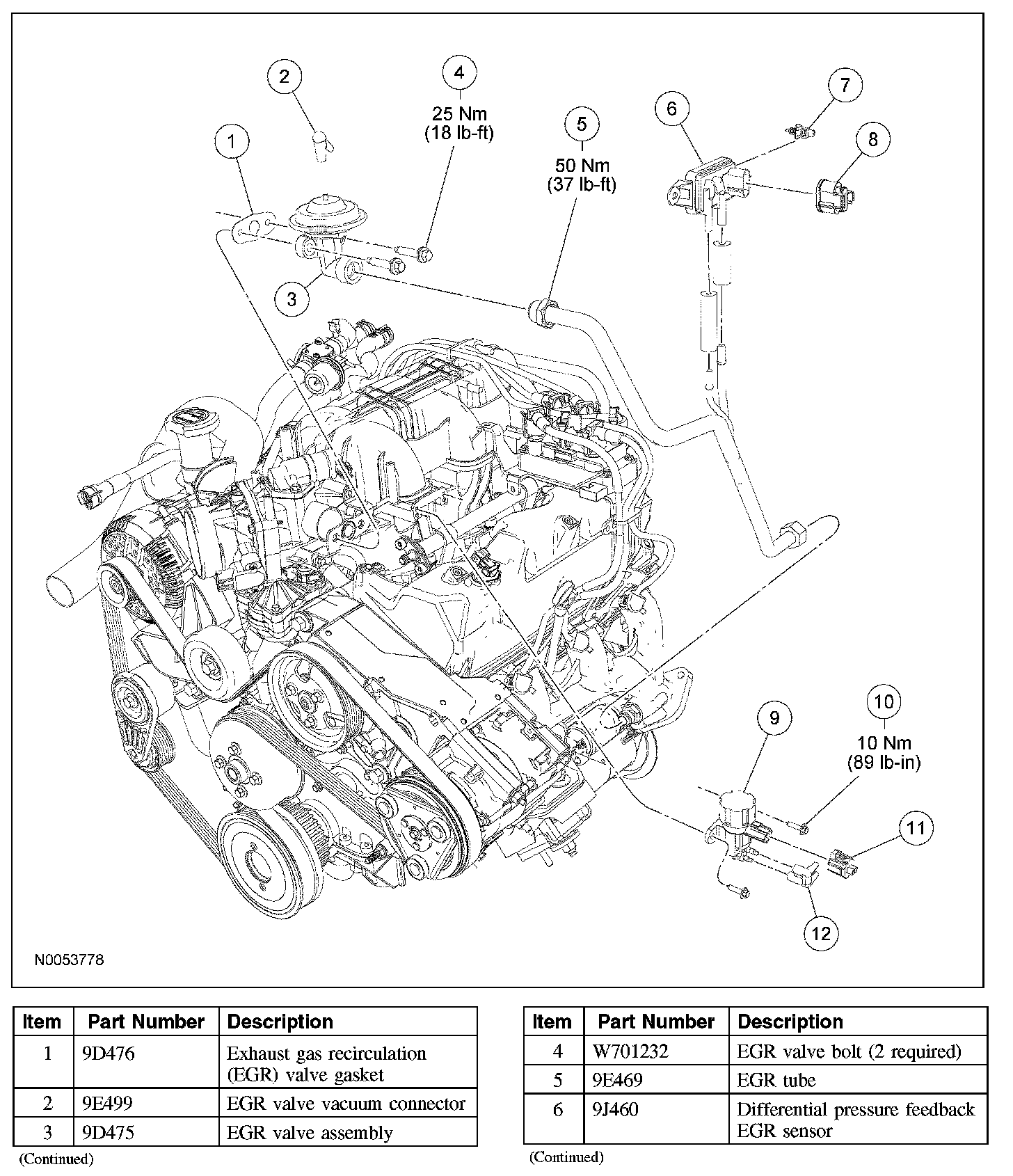

Part 2:

Part 1:

Part 2:

Exploded View

Removal and Installation
1. Disconnect the battery ground cable.
2. Disconnect the pushpin retainer from the differential pressure feedback exhaust gas recirculation (EGR) sensor.
3. Disconnect the differential pressure feedback EGR sensor electrical connector.
4. Remove the differential pressure feedback EGR sensor from the hoses.
5. To install, reverse the removal procedure.
