Manual Transmission/Transaxle

Exploded Views

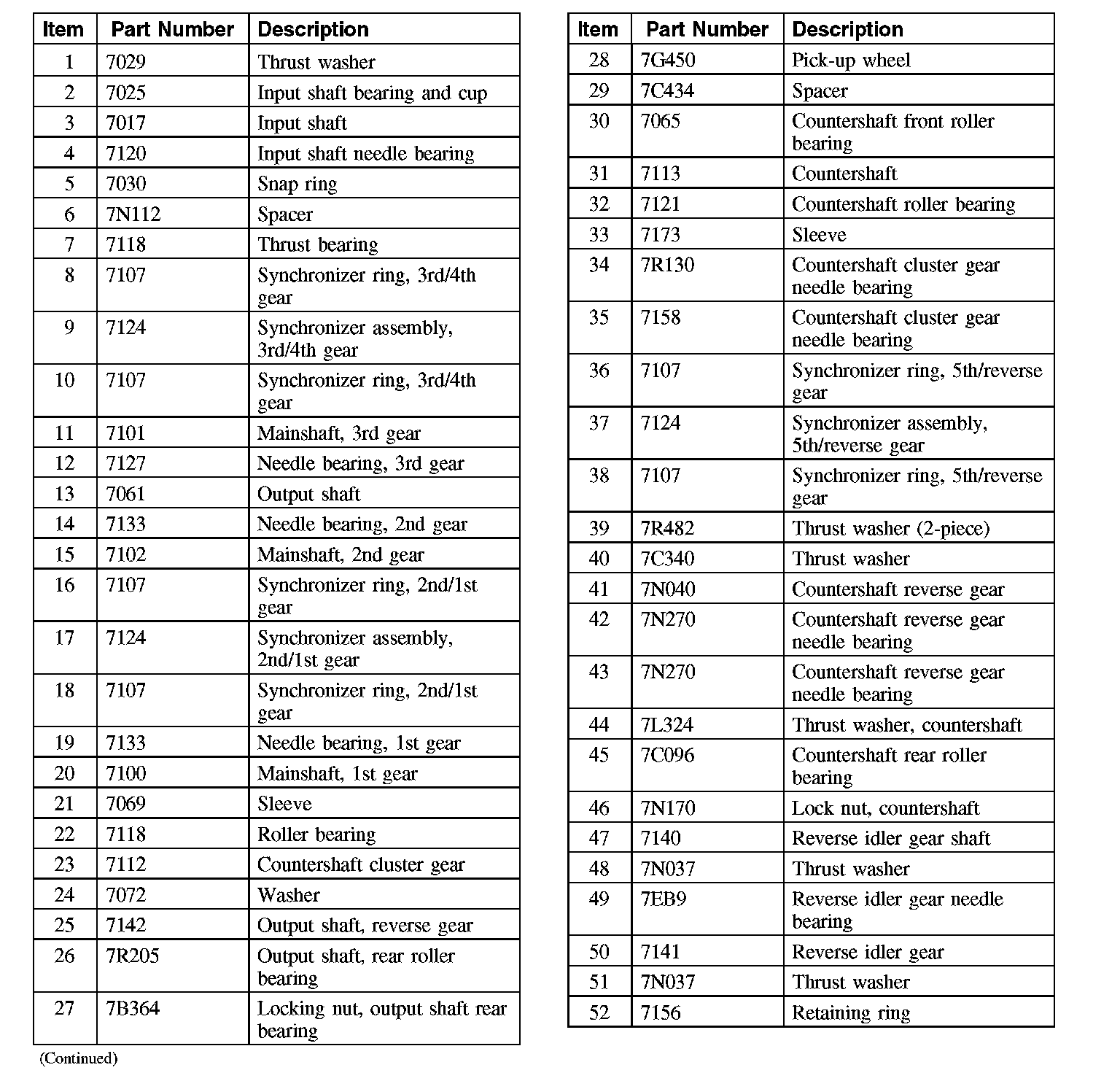

Transmission Internal Components - Disassembled View (Part 1):

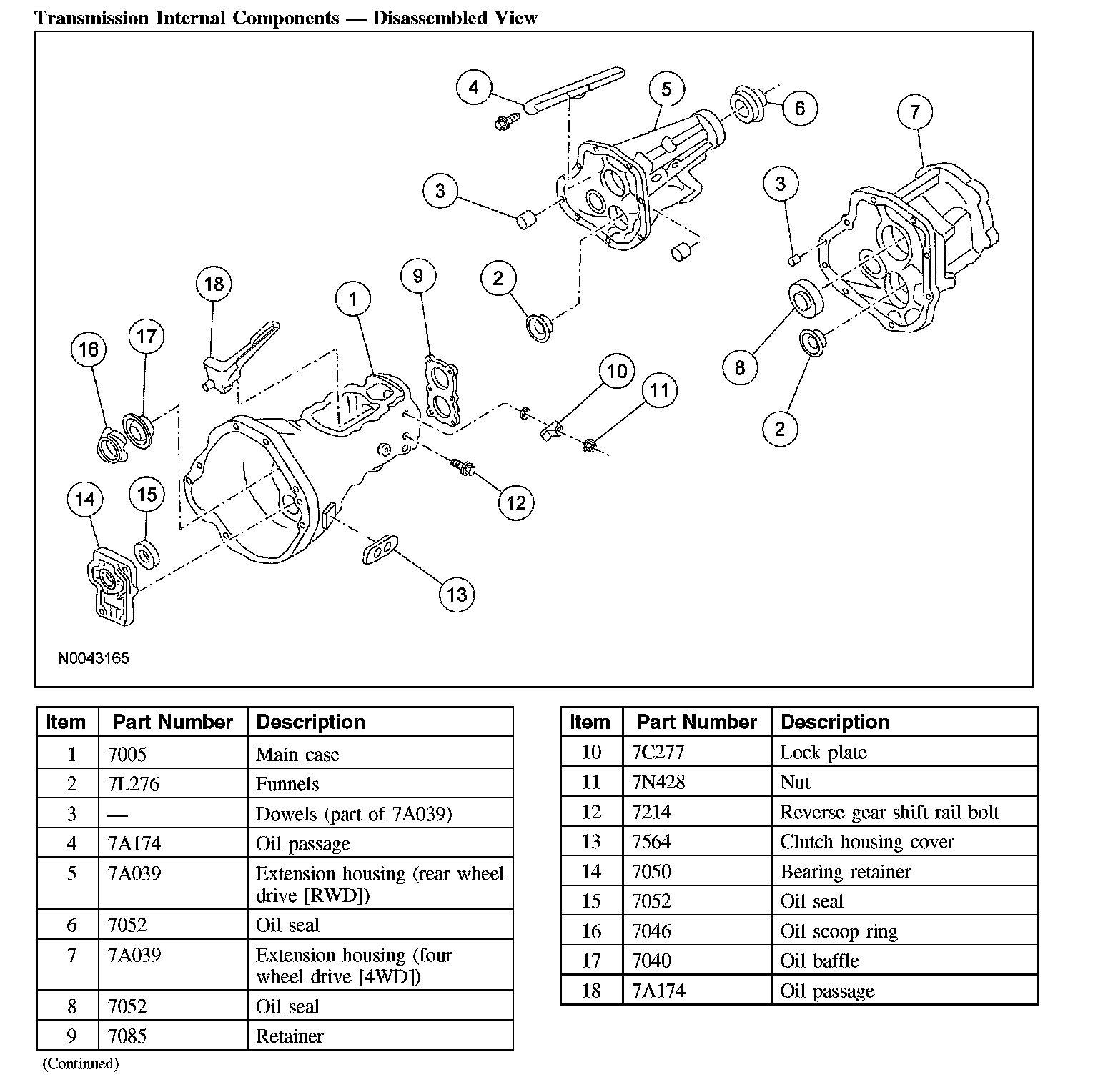

Transmission Internal Components - Disassembled View (Part 2):

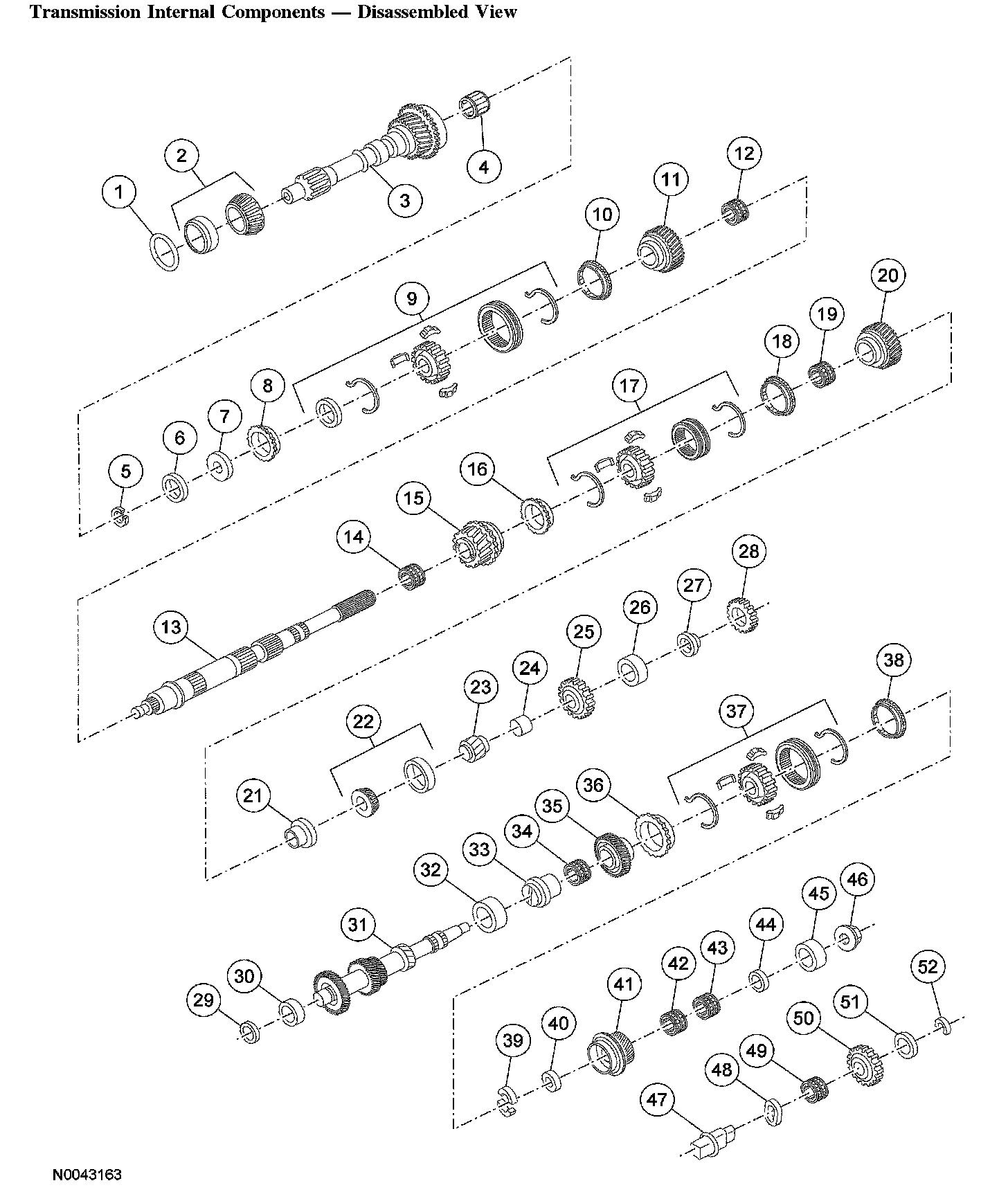

Transmission Internal Components - Disassembled View (Part 3):

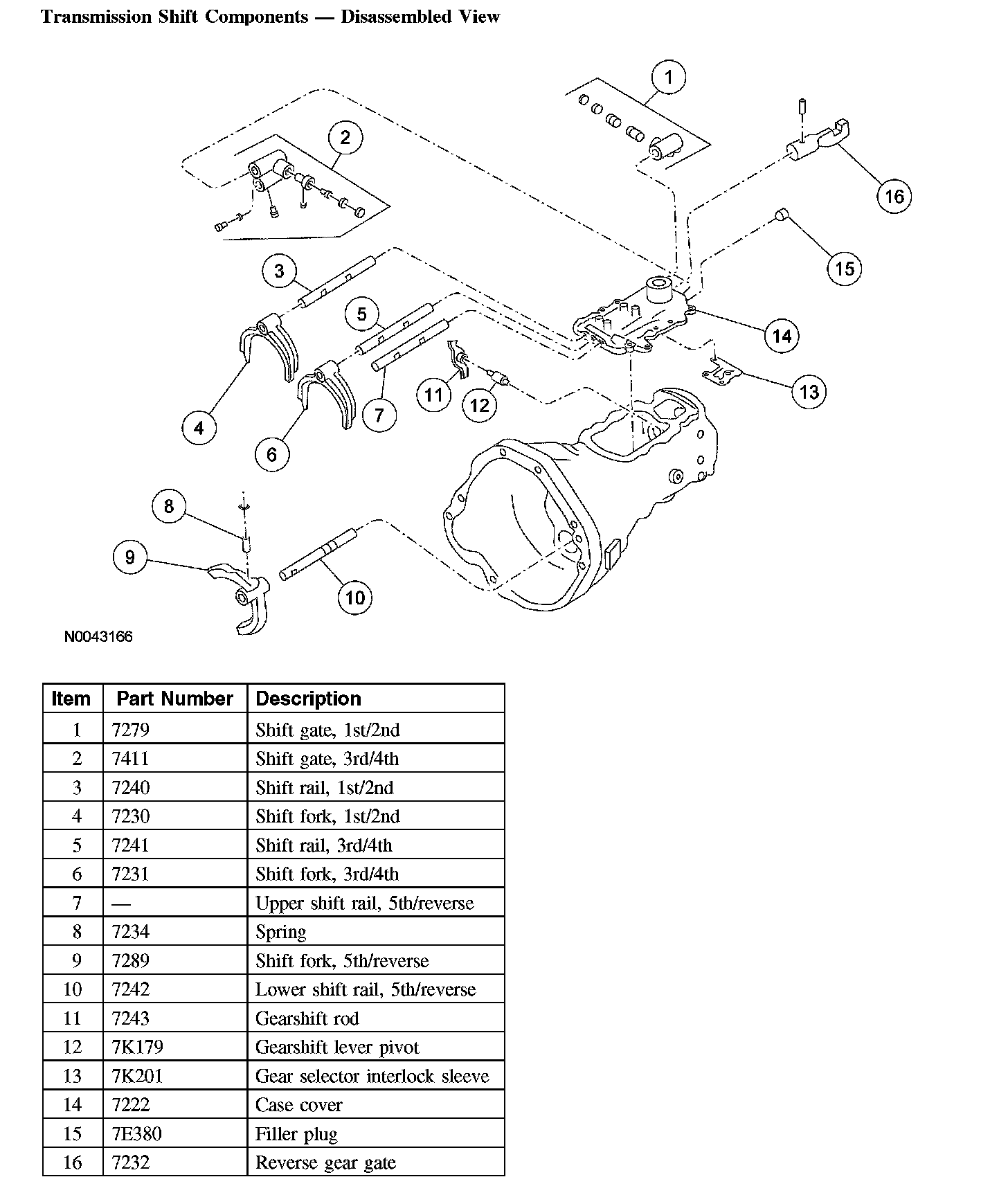

Transmission Shift Components - Disassembled View:
