Power Window Motor: Service and Repair

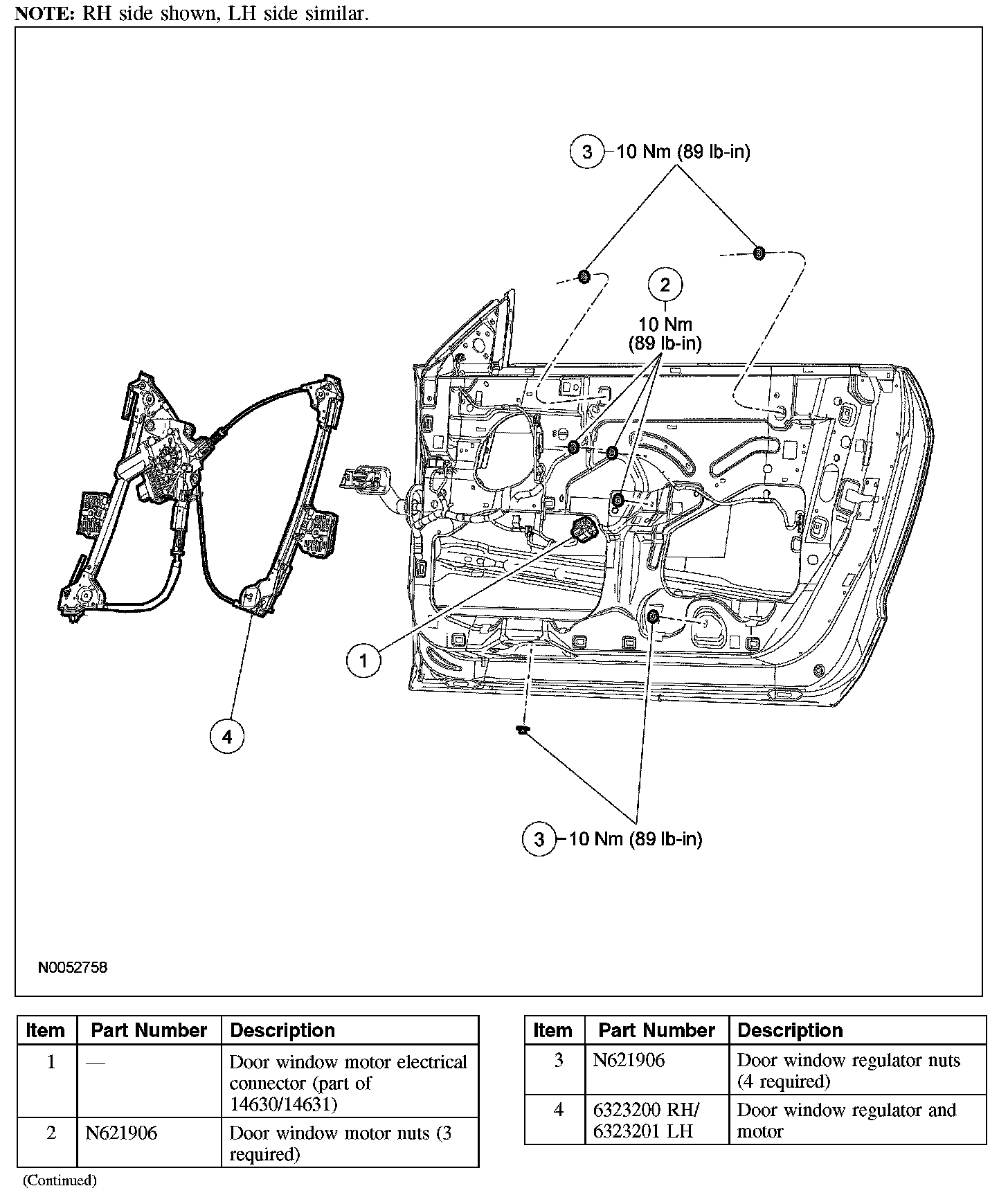

WINDOW REGULATOR AND MOTOR - FRONT DOOR







Removal and Installation
1. Remove the door window glass.
2. Disconnect the door window motor electrical connector.
3. Remove the 3 door window motor nuts.
- To install, tighten to 10 Nm (89 lb-in).

4. NOTE: Make certain not to disturb the jack screw when removing the lower right window regulator nut. This may affect the window adjustment.

Remove the 4 door window regulator nuts.
- To install, tighten to 10 Nm (89 lb-in).

5. Remove the door window regulator and motor through the rear access hole.
6. To install, reverse the removal procedure.
- Adjust the door window glass as necessary.
- Initialize the window motor.
