Connector Location Index
PLEASE NOTE: If a link on the Connector Location Index to a View is not provided, that means that the Connector and/or View in question does NOT apply to the vehicle model selected.

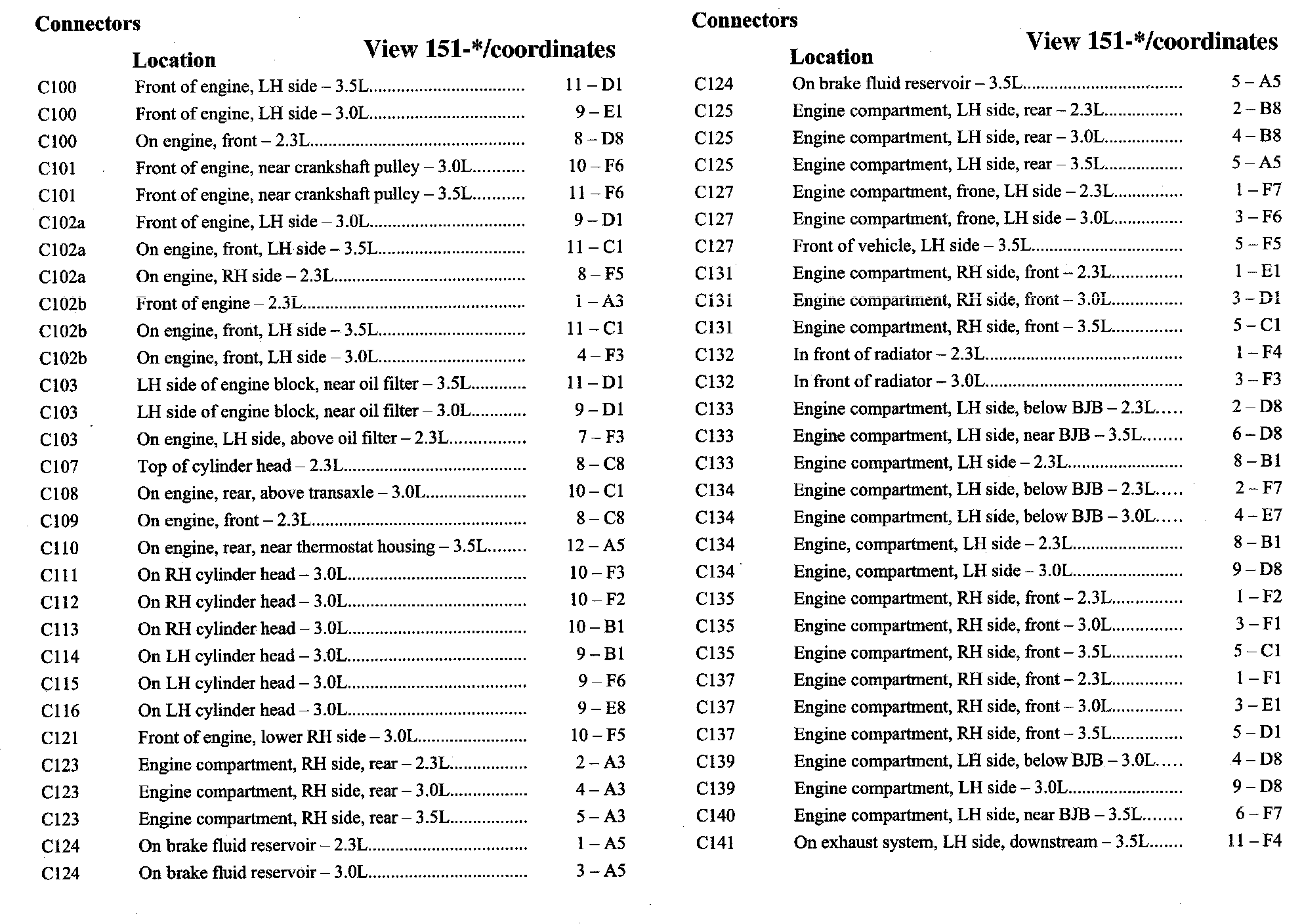

C100-C141:

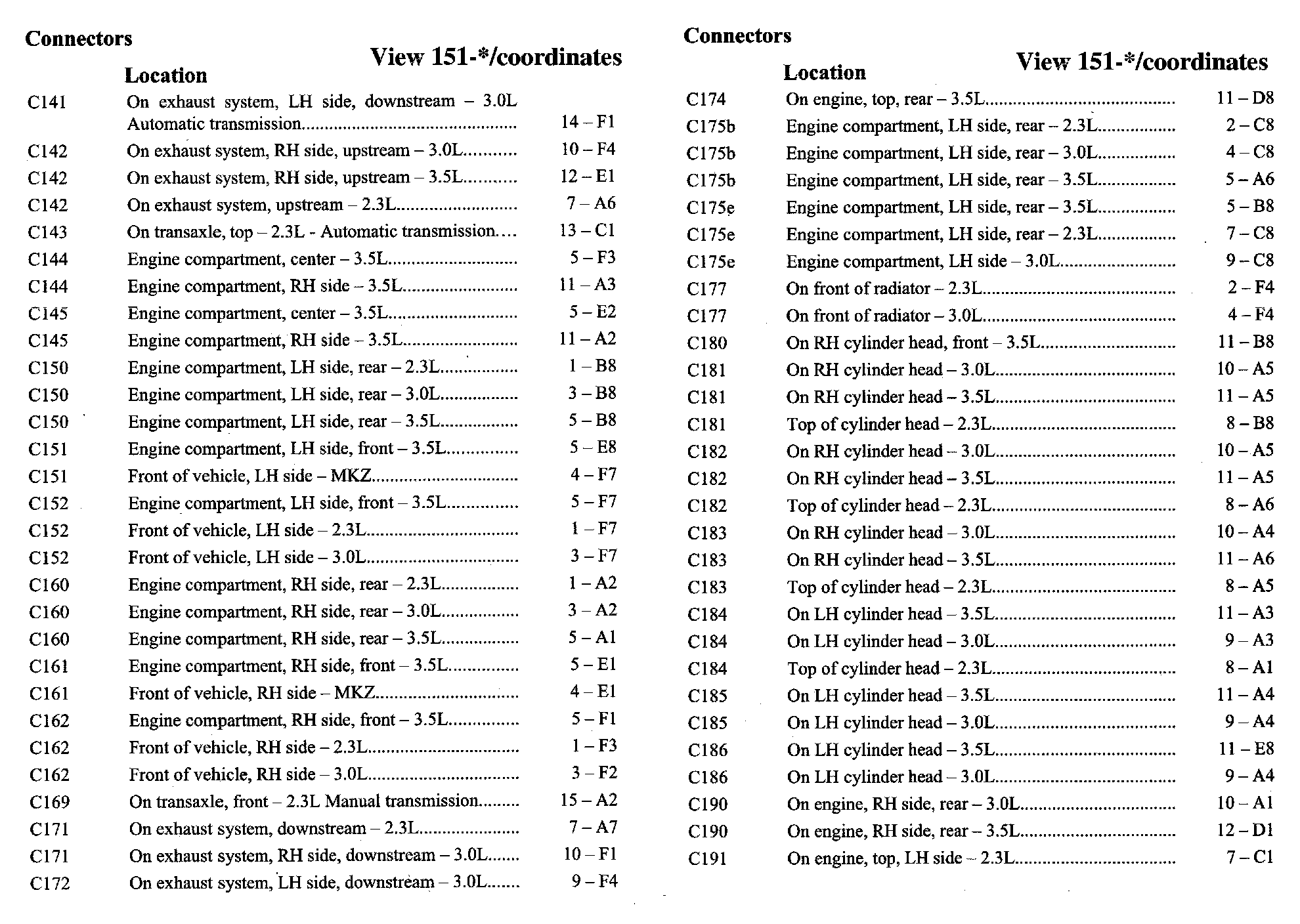

C141-C191:

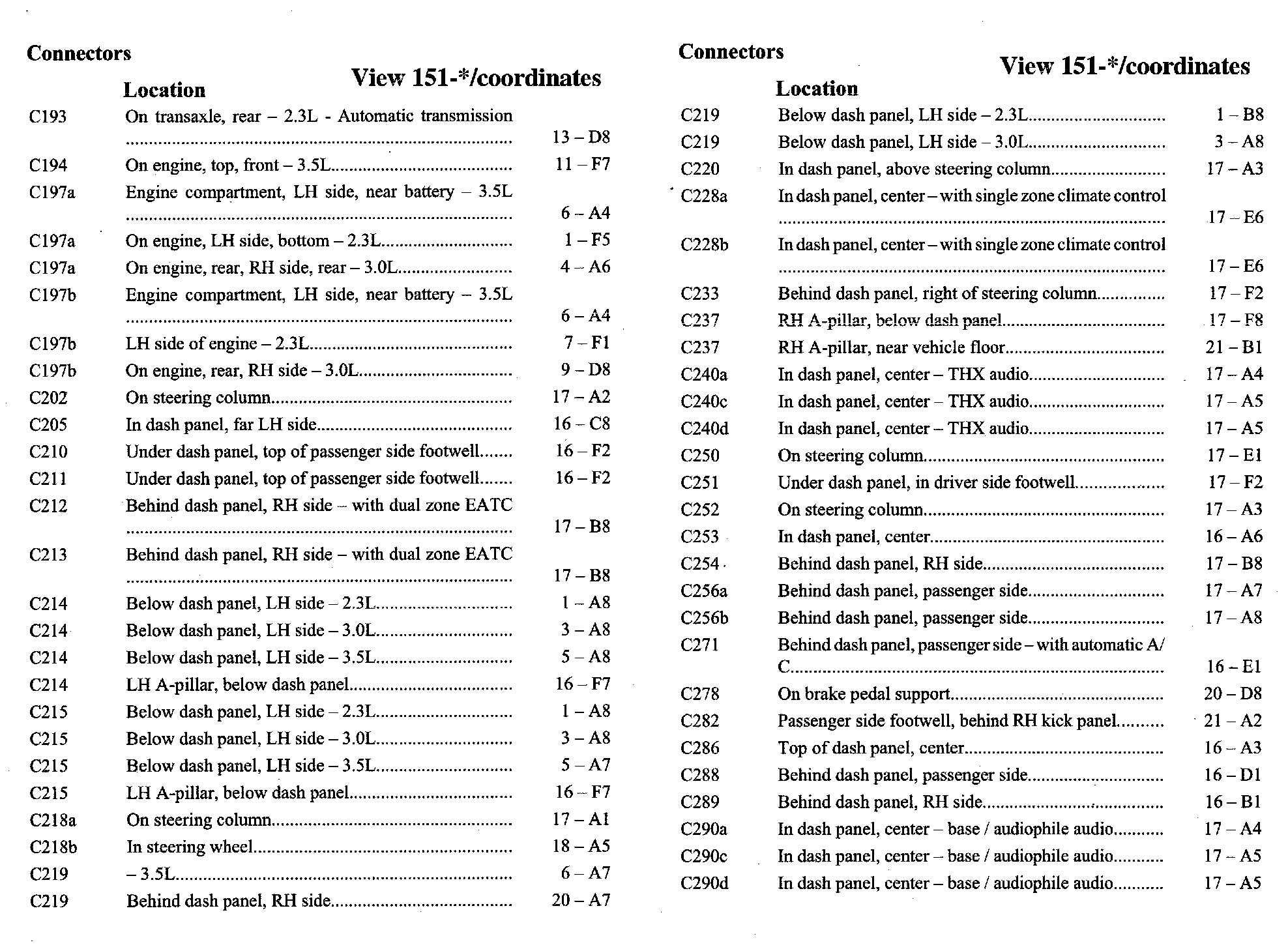

C193-C290d:

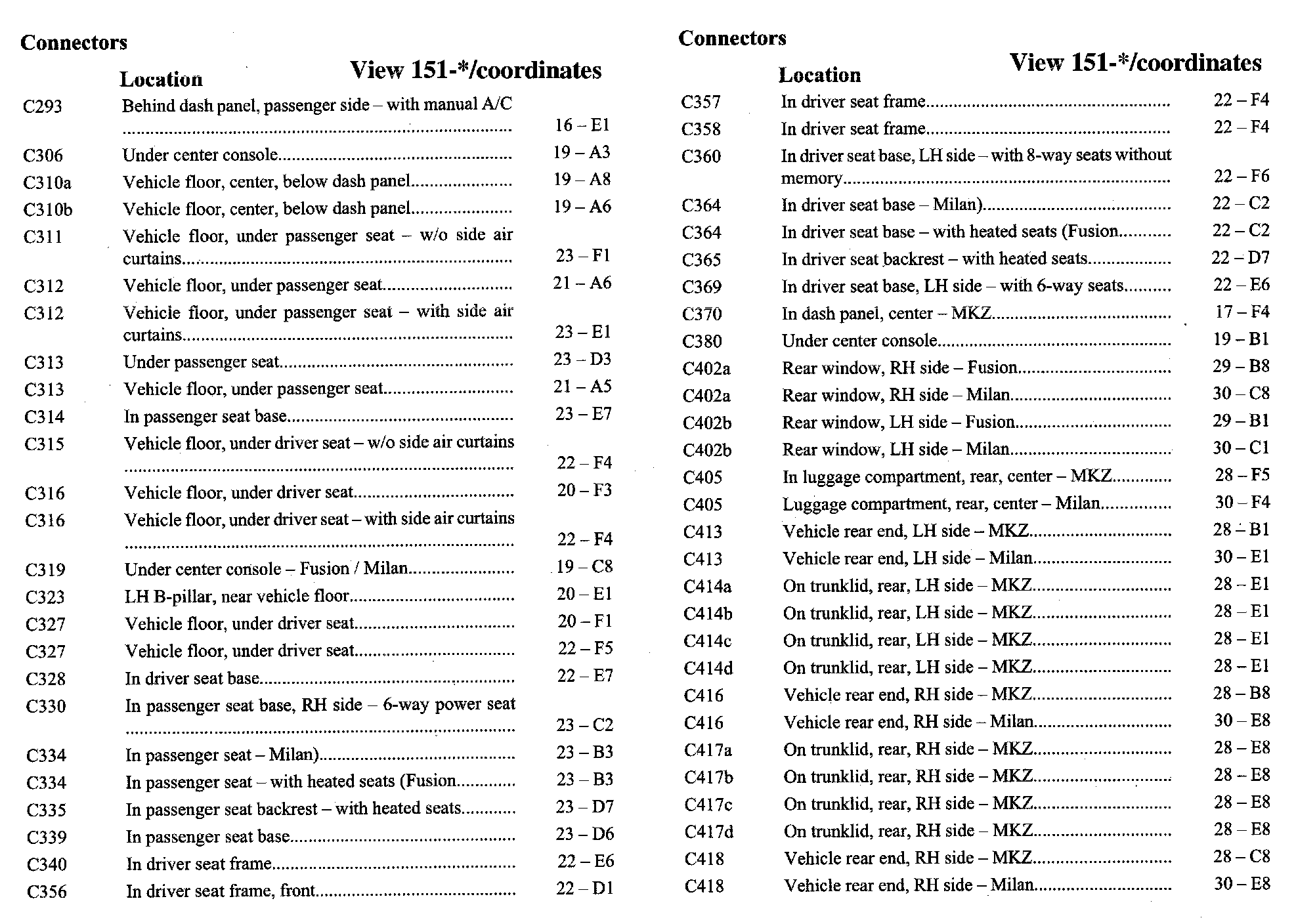

C293-C418:

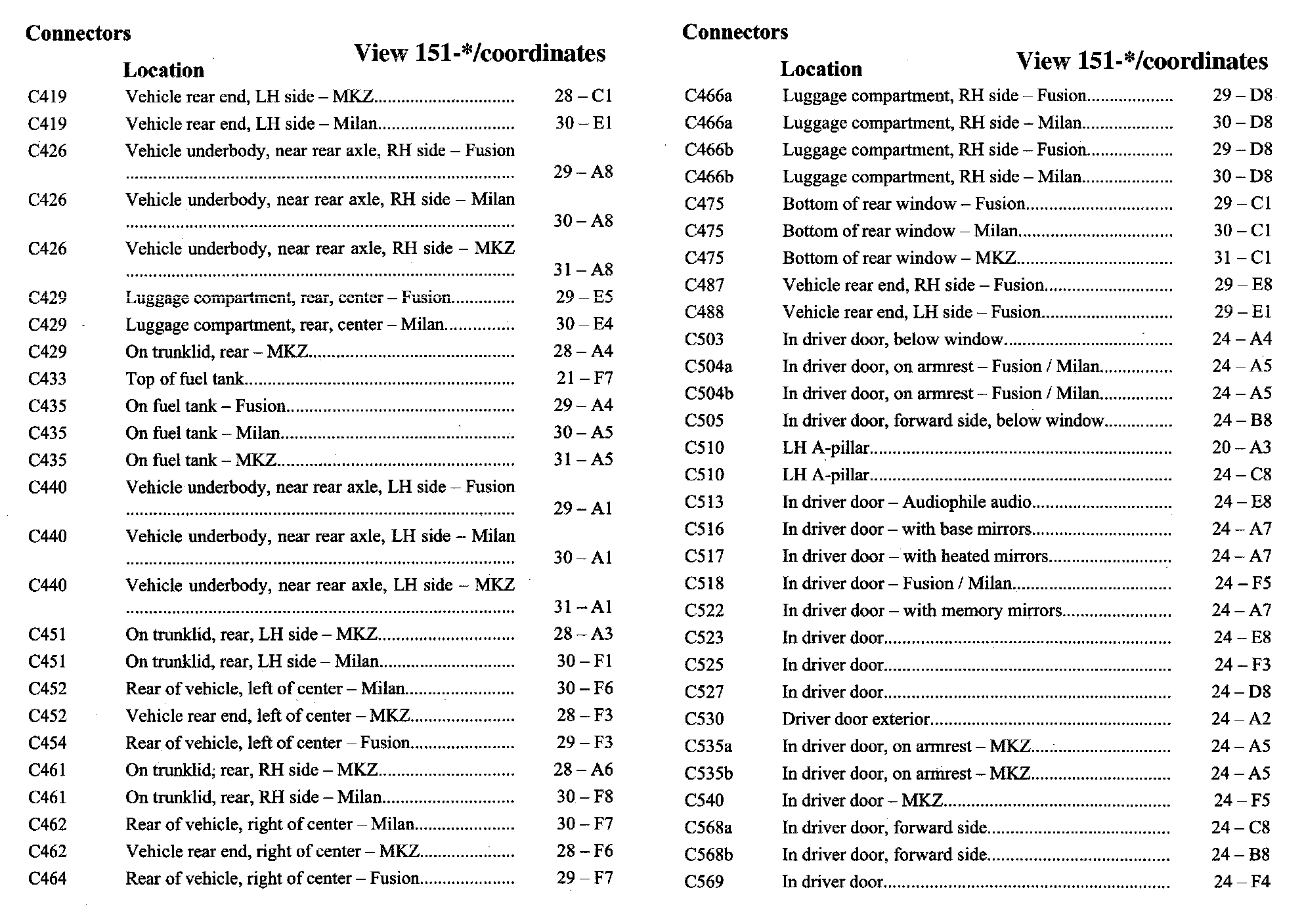

C419-C569:

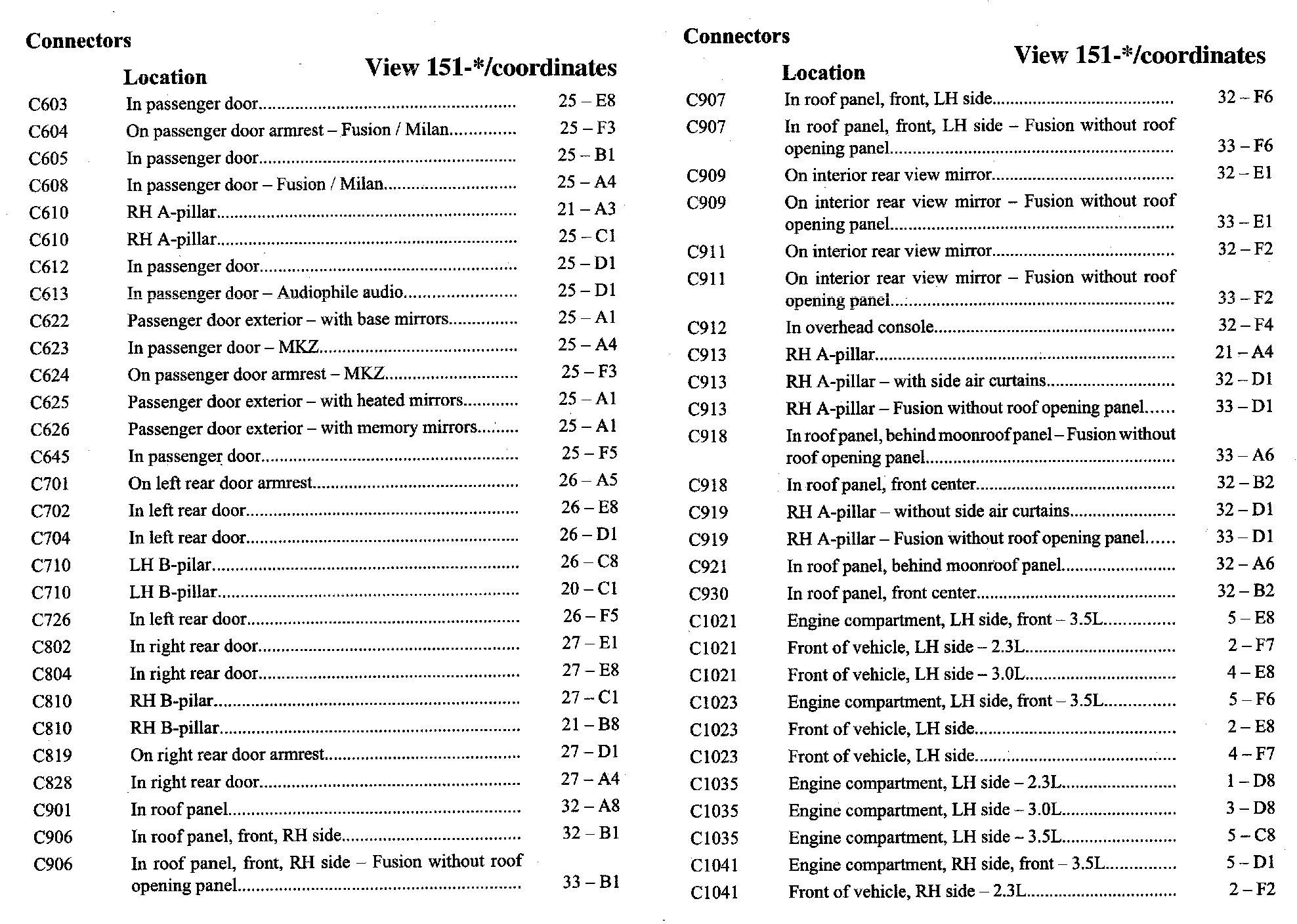

C603-C1041:

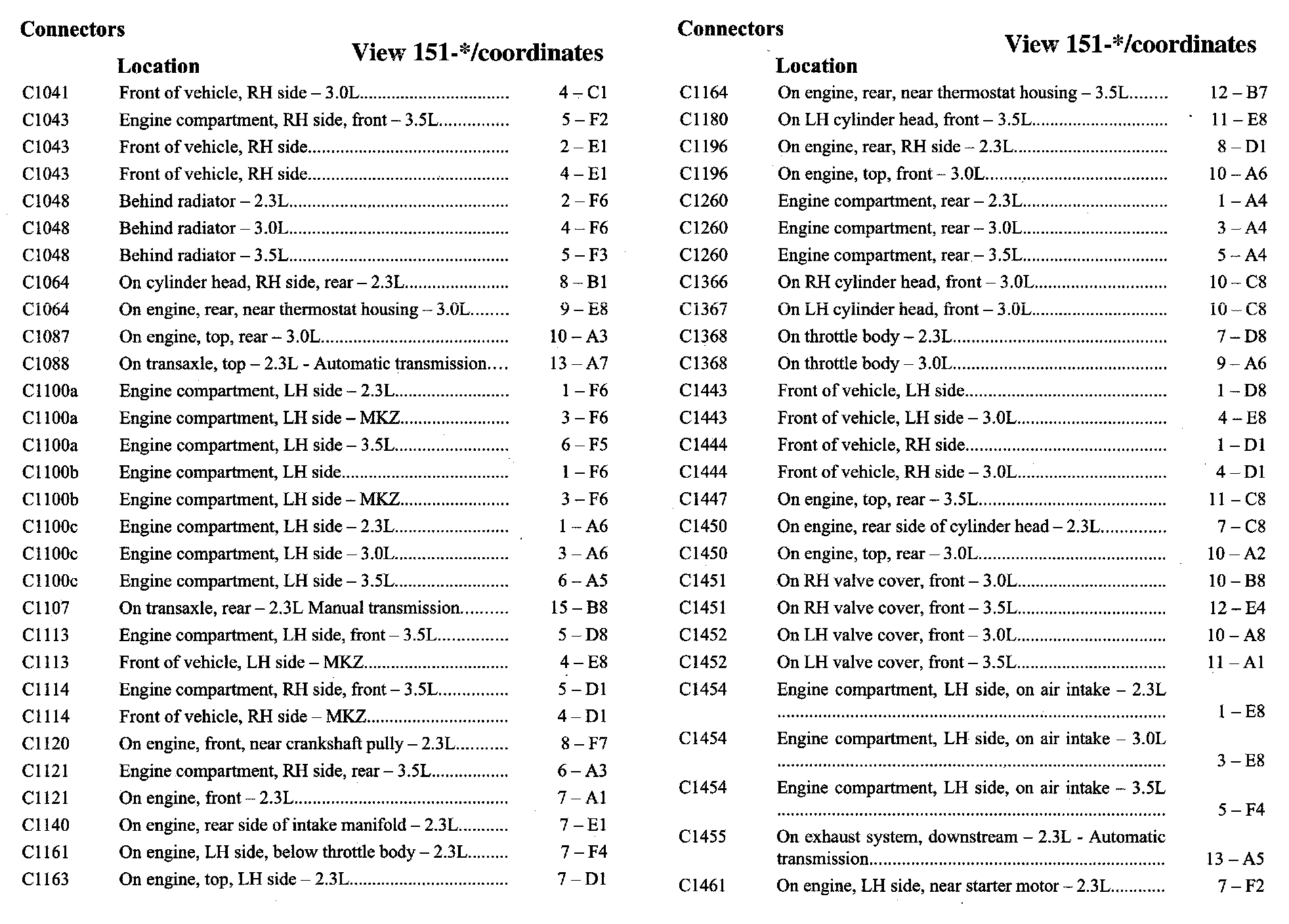

C1041-C1461:

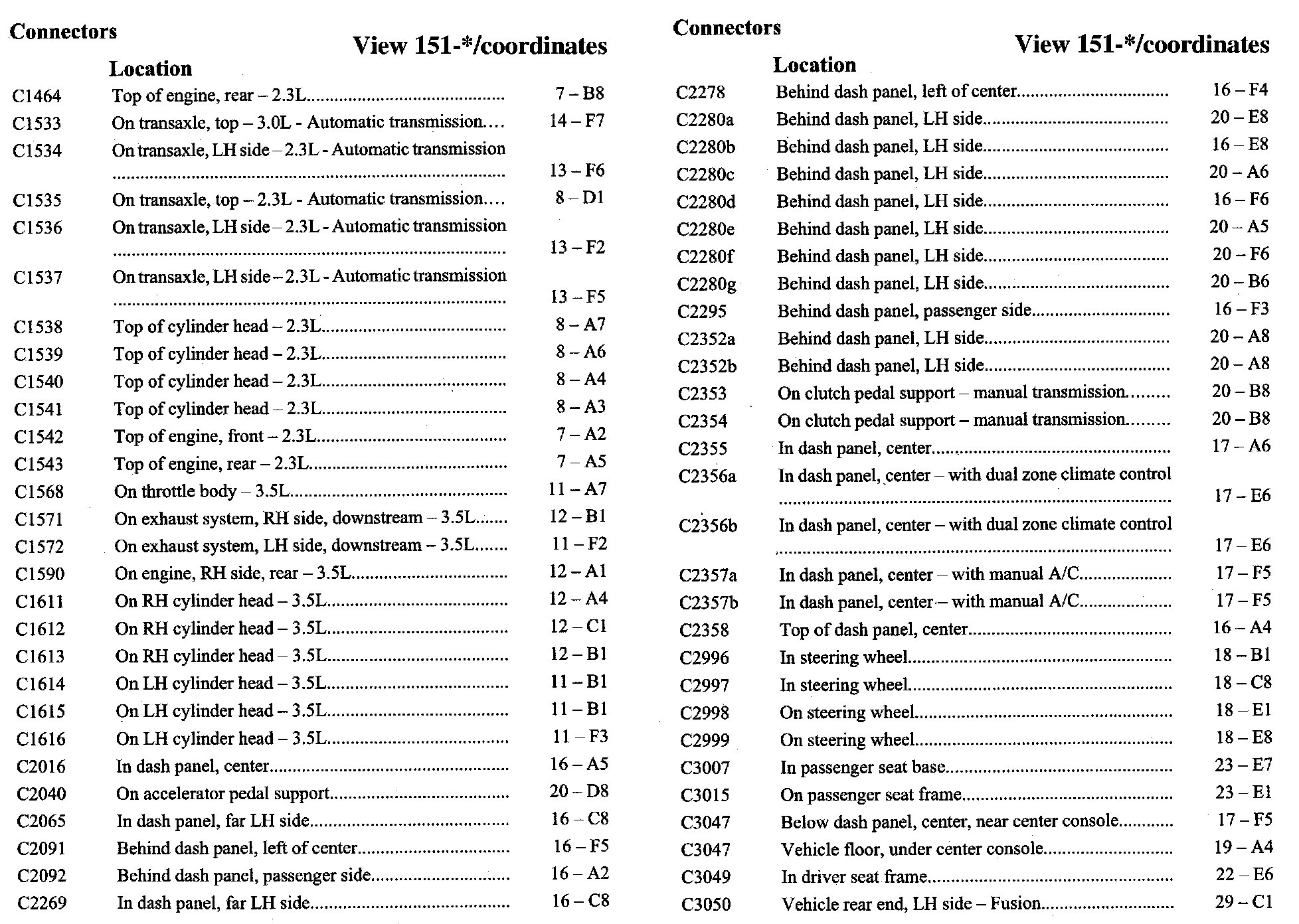

C1464-C3050:

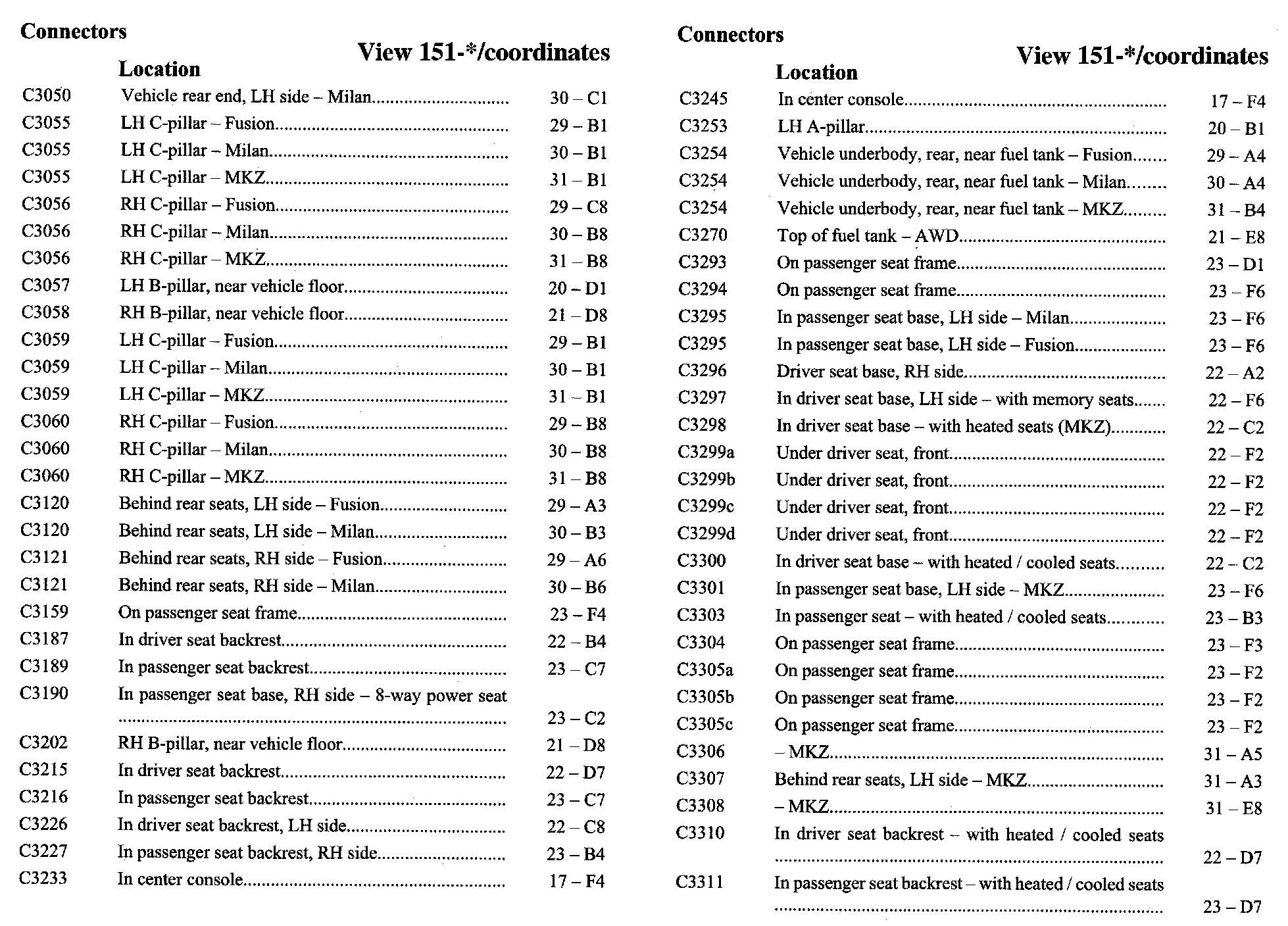

C3050-C3311:

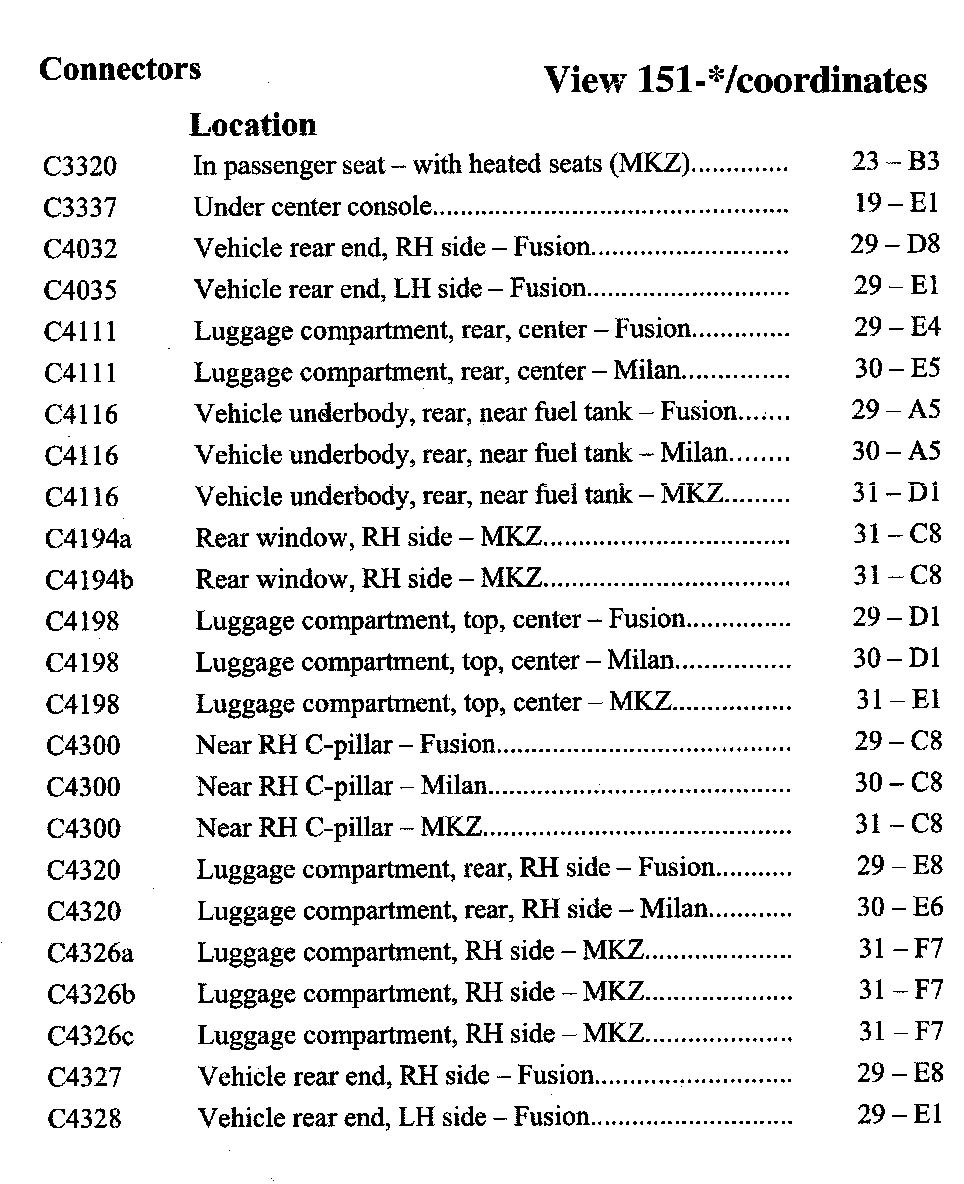

C3320-C4328:
