Transmission Control Module Connector

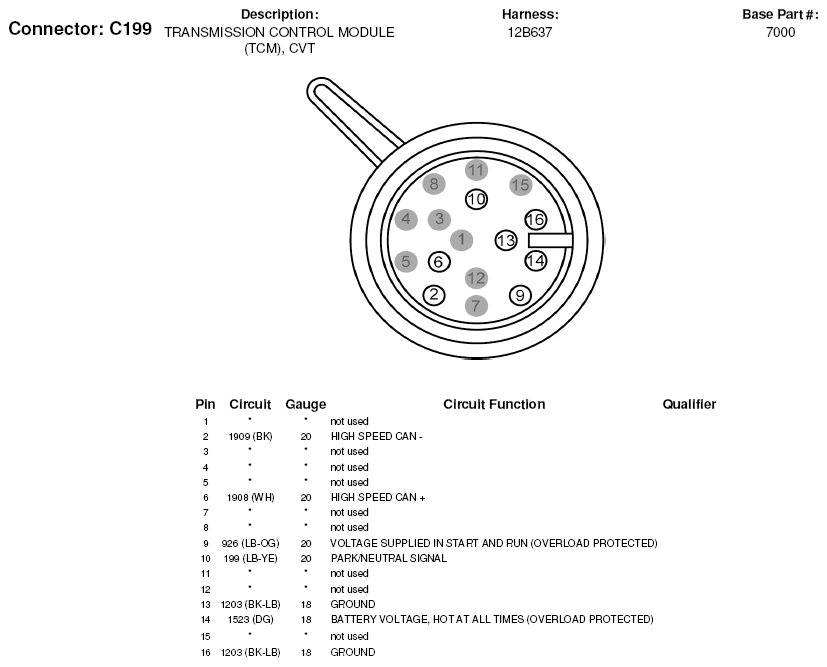

Fig 1: Transmission Control Module Connector End View (C199)
G05179427Courtesy of FORD MOTOR CO.
