Restraints Control Module Connectors

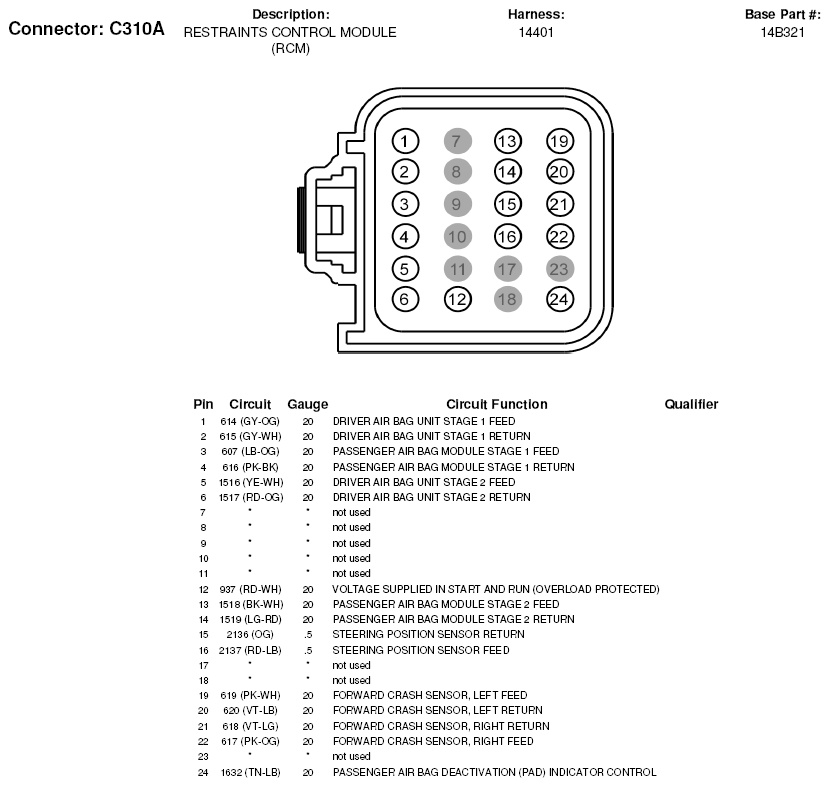

Fig 1: Restraints Control Module Connector End View (C310A)
G05179460Courtesy of FORD MOTOR CO.

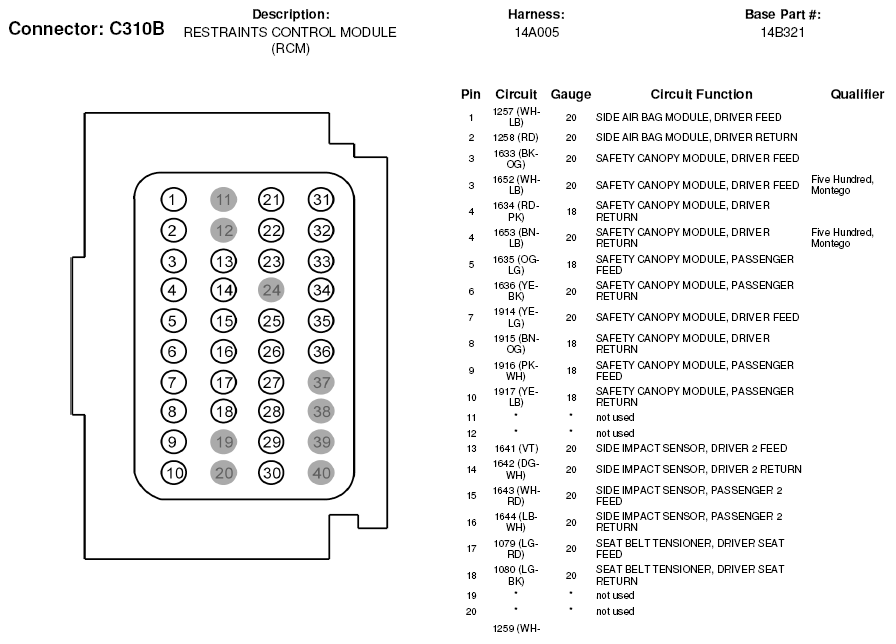

Fig 2: Restraints Control Module Connector End View (C310B) (1 Of 2)
G05179461Courtesy of FORD MOTOR CO.
Fig 3: Restraints Control Module Connector End View (C310B) (2 Of 2)
G05179462Courtesy of FORD MOTOR CO.
