Home >> Ford >> 2007 >> Freestyle AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Locations >> Auxiliary Function Selector Switch Assembly, Rear

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Auxiliary Function Selector Switch Assembly, Rear

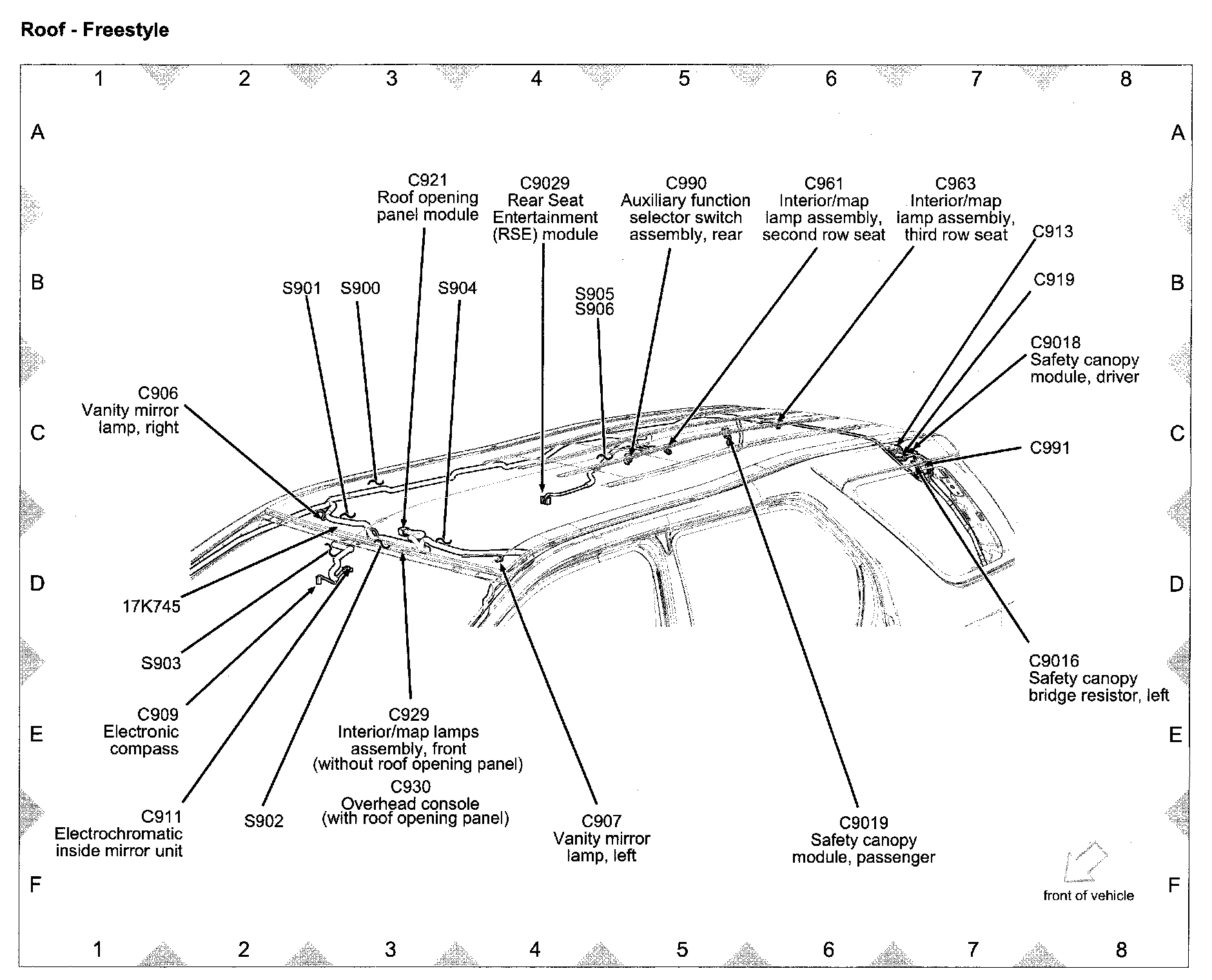

View 151-26 (Roof - Freestyle):
