Home >> Ford >> 2007 >> Freestar V6-4.2L VIN 2 >> Repair and Diagnosis >> Power and Ground Distribution >> Relay Box >> Locations >> Auxiliary Relay Box

September 30: LEMON manuals is back up on a temporary server! Slowness is possible

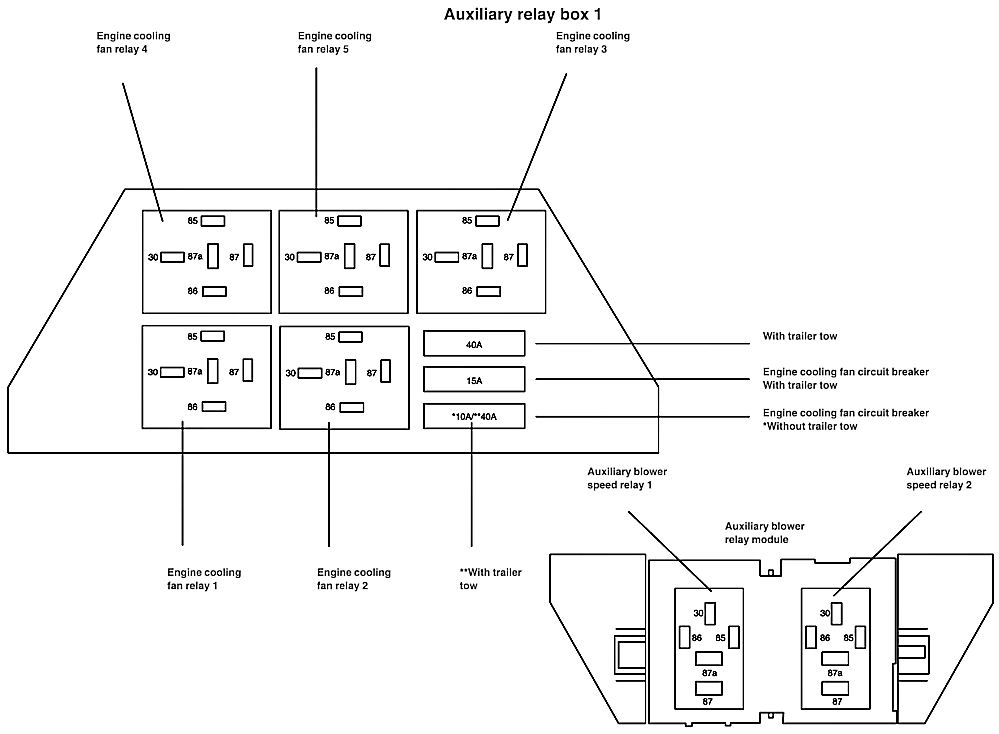

Auxiliary Relay Box
