Test L: The Smart Lock Does Not Operate Correctly

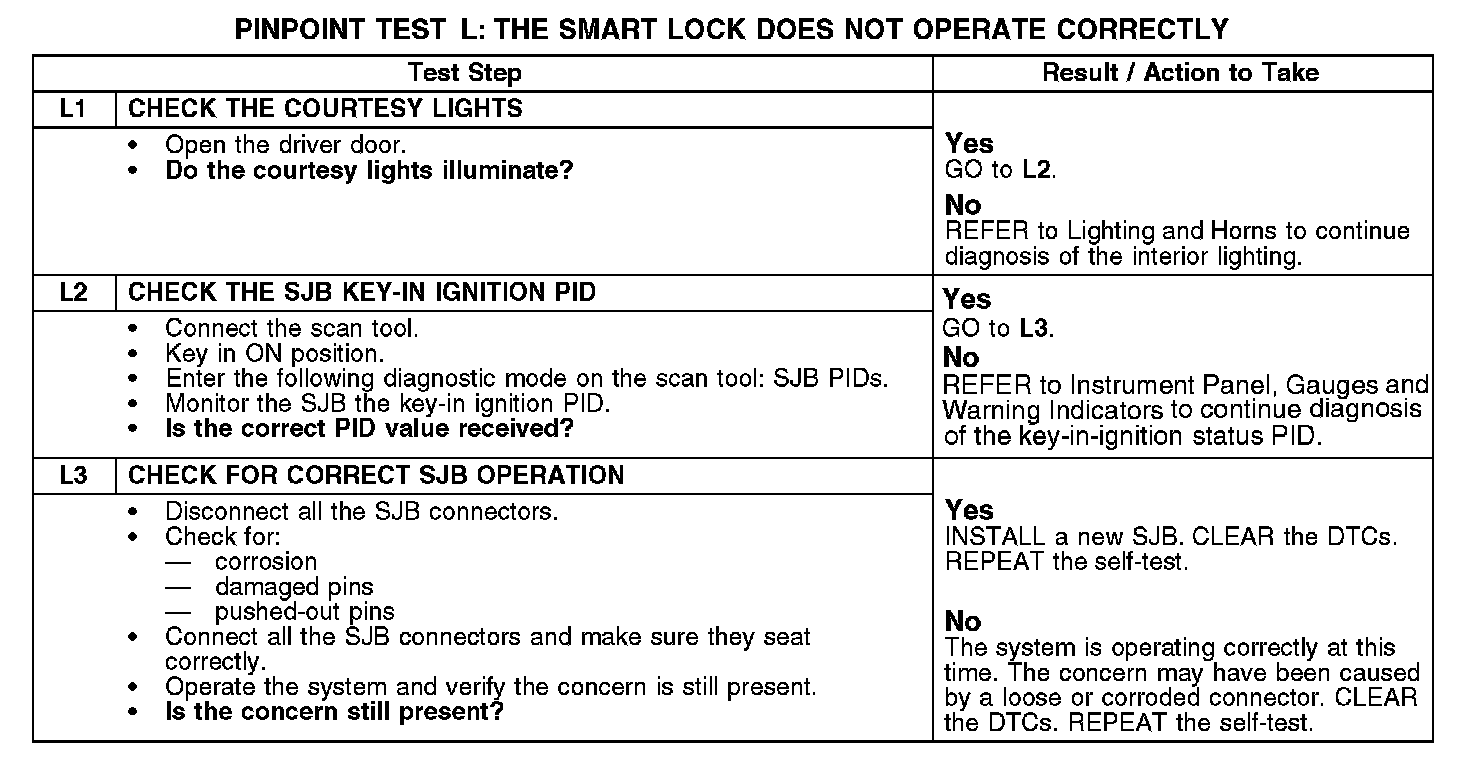

PINPOINT TEST L: THE SMART LOCK DOES NOT OPERATE CORRECTLY

L1-L3:

Normal Operation
Smart lock unlocks the door when the following conditions are met:
- Key in the ignition.
- The driver door is open.
- All the passenger doors are closed.
- The key code programming and transmitter identification code (TIC) programming modes are not active.

Possible Causes
- LH front door ajar switch
- Smart junction box (SJB)
