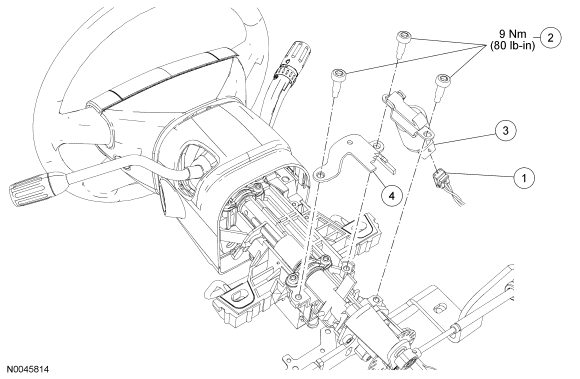

Brake Shift Interlock Actuator: Notes
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
14489 |
Brake shift interlock actuator electrical connector |
| 2 |
N806584 |
Brake shift interlock actuator bolts (3 required) |
| 3 |
3F770 |
Brake shift interlock actuator |
| 4 |
7A216 |
Transmission shift position insert |
