Fuel Charging Wiring Harness: Notes

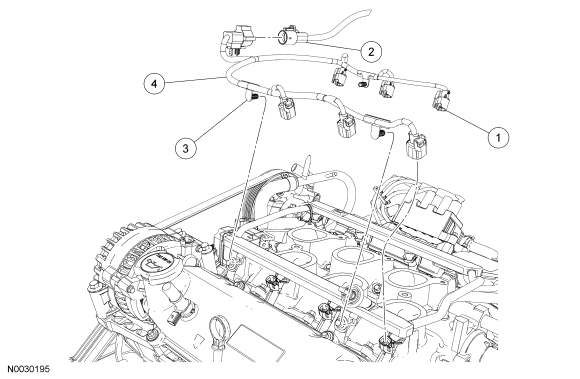

Fig 1: Exploded View Of Fuel Charging Wiring Harness
GF0033233Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Fuel injector electrical connector (6 required) (part of 9D930)
2 14A624 Engine wiring harness electrical connector (part of 12B637)
3 13A506 Fuel charging wiring harness retaining pins (part of 9D930) (3 required)
4 9D930 Fuel charging wiring harness
